Bel Fuse Inc. 0863-2X5R-54

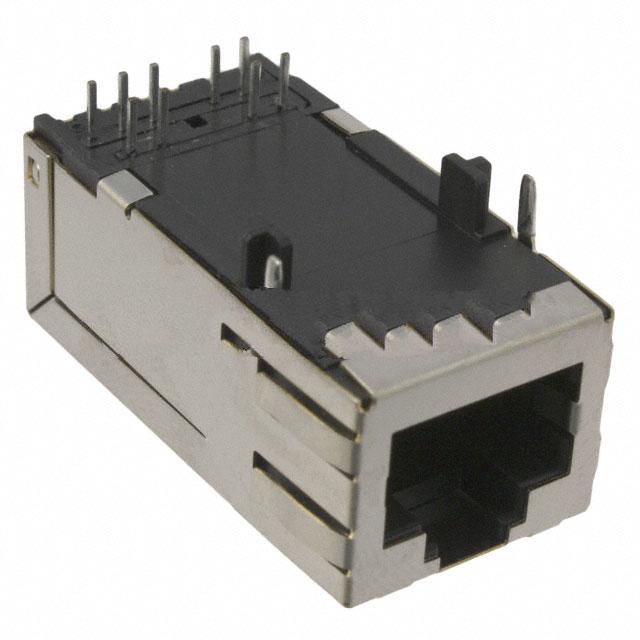

The picture is for reference only, please refer to the product specification
- 0863-2X5R-54
- Bel Fuse Inc.
- CONN MAGJACK 10PORT 1000 BASE-T
- Modular Connectors - Jacks With Magnetics
- 0863-2X5R-54 Datasheet
- -
- -
-
Lead free / RoHS Compliant - 1037
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is 0863-2X5R-54
Bel Fuse Inc. Part Number 0863-2X5R-54（Modular Connectors - Jacks With Magnetics）, developed and manufactured by Bel Fuse Inc., distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
0863-2X5R-54 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
0863-2X5R-54 Specifications
- Part Number0863-2X5R-54
- CategoryModular Connectors - Jacks With Magnetics
- ManufacturerBel Fuse Inc.
- DescriptionCONN MAGJACK 10PORT 1000 BASE-T
- Package-
- SeriesMagJack?
- FeaturesBoard Guide
- Operating Temperature0°C ~ 70°C
- Mounting TypeThrough Hole
- Applications10/100/1000 Base-T, AutoMDIX
- TerminationSolder
- Contact MaterialCopper Alloy
- Contact FinishGold
- Orientation90° Angle (Right)
- Height Above Board1.004" (25.50mm)
- Connector TypeRJ45
- ShieldingShielded, EMI Finger
- Number of Rows2
- Number of Ports10
- LED ColorGreen, Orange - Green, Orange
- Tab DirectionUp and Down
- Number of Cores per Jack8
Application of 0863-2X5R-54
0863-2X5R-54 Datasheet
0863-2X5R-54 Datasheet , MagJack?,Board Guide,0°C ~ 70°C,Through Hole,10/100/1000 Base-T, AutoMDIX,Solder,Copper Alloy,Gold,90° Angle (Right),1.004" (25.50mm),RJ45,Shielded, EMI Finger,2,10,Green, Orange - Green, Orange,Up and
0863-2X5R-54 Classification
Modular Connectors - Jacks With Magnetics
FAQ about Modular Connectors - Jacks With Magnetics
-
1. What are the main application scenarios of Modular Connectors - Jacks With Magnetics?
These connectors are widely used in Ethernet devices, industrial control systems, network routers, IP cameras, VoIP devices, and scenarios that require high reliability (such as military and aerospace fields).
-
2. What Ethernet standards do Modular Connectors - Jacks With Magnetics support?
These connectors typically support 10/100/1000 Base-T, 2.5Gb/s, 5Gb/s, and 10Gb/s Ethernet standards, and are compatible with PoE (Power over Ethernet) Type 1 to Type 4.
-
3. How to distinguish different models of Modular Connectors - Jacks With Magnetics?
Models are usually distinguished by the following features:
Port configuration: such as 1x1, 1xN or 2xN.
Rate: such as Cat5e, Cat6 or Cat6A.
Mounting direction: right angle or vertical mounting.
Additional features: such as LED indicator or shielding design.
