DHG40C600HB

IXYS DHG40C600HB

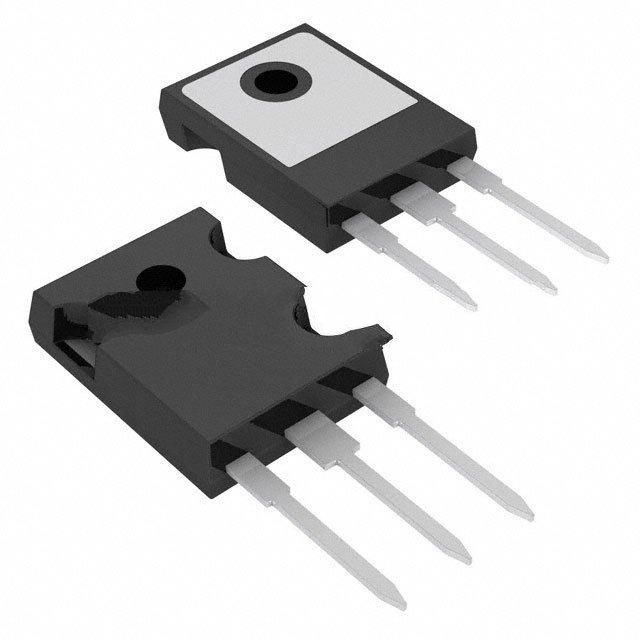

The picture is for reference only, please refer to the product specification

  • DHG40C600HB
  • IXYS
  • DIODE ARRAY GP 600V 20A TO247AD
  • Diodes - Rectifiers - Arrays
  • DHG40C600HB Datasheet
  • TO-247-3
  • Tube
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 2558
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is DHG40C600HB

IXYS Part Number DHG40C600HB（Diodes - Rectifiers - Arrays）, developed and manufactured by IXYS, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

DHG40C600HB is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

DHG40C600HB Specifications

  • Part NumberDHG40C600HB
  • CategoryDiodes - Rectifiers - Arrays
  • ManufacturerIXYS
  • DescriptionDIODE ARRAY GP 600V 20A TO247AD
  • PackageTube
  • Series-
  • Mounting TypeThrough Hole
  • Package / CaseTO-247-3
  • Supplier Device PackageTO-247AD
  • Diode TypeStandard
  • Voltage - Forward (Vf) (Max) @ If2.31 V @ 20 A
  • Current - Reverse Leakage @ Vr30 µA @ 600 V
  • Diode Configuration1 Pair Common Cathode
  • Voltage - DC Reverse (Vr) (Max)600 V
  • Current - Average Rectified (Io) (per Diode)20A
  • SpeedFast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr)35 ns
  • Operating Temperature - Junction-55°C ~ 150°C

Application of DHG40C600HB

Rectifiers - Arrays are used in a wide range of applications. In the data center and telecommunications industries, to ensure uninterrupted power supply for servers and communication equipment, rectifier arrays are used to provide highly reliable DC power. In the field of renewable energy, especially in solar photovoltaic power generation systems, rectifier arrays are used to convert the direct current generated by photovoltaic panels into grid-compatible alternating current, or integrate the direct current generated by multiple photovoltaic panels to improve the output efficiency of the entire system. In addition, rectifier arrays also play an important role in electric vehicle charging stations, industrial motor drives, battery energy storage systems, and power electronics. With the development of power electronics technology, the application prospect of rectifier array will be broader.

DHG40C600HB Datasheet

DHG40C600HB Datasheet , Tube,Through Hole,TO-247-3,TO-247AD,Standard,2.31 V @ 20 A,30 µA @ 600 V,1 Pair Common Cathode,600 V,20A,Fast Recovery =< 500ns, > 200mA (Io),35 ns,-55°C ~ 150°C

DHG40C600HB Classification

Diodes - Rectifiers - Arrays

Rectifiers - Arrays are assemblages composed of multiple rectifier units arranged in certain rules. The rectifier itself is an electronic device that converts alternating current (AC) to direct current (DC), and its core function is to eliminate the negative half cycle in alternating current, or convert it to a positive voltage output. Rectifier arrays integrate multiple rectifier units in parallel or in series to achieve DC output with higher efficiency, higher power, or more specific electrical characteristics.

FAQ about Diodes - Rectifiers - Arrays

  • 1. What is the function of a rectifier diode array?

    The rectifier diode array is used to convert alternating current (AC) to direct current (DC), or for circuit protection (such as preventing current backflow), and is also commonly used for voltage clamping and surge protection in circuits.

  • 2. How can rectifier diode arrays simplify circuit design?

    The use of rectifier diode arrays can reduce the need to install multiple diodes separately, simplify circuit layout, reduce PCB space occupation, and improve the overall reliability of the circuit.

  • 3. Does each diode in the rectifier diode array work independently?

    Yes, each diode in the rectifier diode array is usually independent and can perform rectification or protection tasks separately. Designers can use them in parallel or series according to their needs to form specific circuit configurations.
