Monolithic Power Systems Inc. MP5021GQV-Z

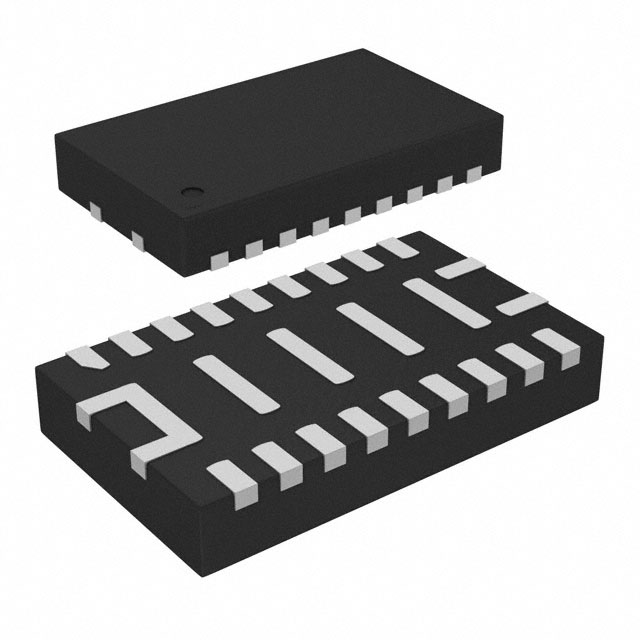

The picture is for reference only, please refer to the product specification
- MP5021GQV-Z
- Monolithic Power Systems Inc.
- IC HOT SWAP CTRLR GP 22QFN
- PMIC - Hot Swap Controllers
- MP5021GQV-Z Datasheet
- 22-PowerVFQFN
- Tape & Reel (TR)
-
Lead free / RoHS Compliant - 16888
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is MP5021GQV-Z
Monolithic Power Systems Inc. Part Number MP5021GQV-Z（PMIC - Hot Swap Controllers）, developed and manufactured by Monolithic Power Systems Inc., distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
MP5021GQV-Z is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
MP5021GQV-Z Specifications
- Part NumberMP5021GQV-Z
- CategoryPMIC - Hot Swap Controllers
- ManufacturerMonolithic Power Systems Inc.
- DescriptionIC HOT SWAP CTRLR GP 22QFN
- PackageTape & Reel (TR)
- Series-
- TypeHot Swap Controller, Monitor
- FeaturesOVP, Thermal Limit, UVLO
- Voltage - Supply8V ~ 16V
- Operating Temperature-40°C ~ 125°C
- Mounting TypeSurface Mount
- Package / Case22-PowerVFQFN
- Supplier Device Package22-QFN (3x5)
- Current - Supply170 µA
- ApplicationsGeneral Purpose
- Current - Output (Max)15A
- Number of Channels1
- Internal Switch(s)Yes
- Programmable FeaturesCurrent Limit
Application of MP5021GQV-Z
MP5021GQV-Z Datasheet
MP5021GQV-Z Datasheet , Tape & Reel (TR),Hot Swap Controller, Monitor,OVP, Thermal Limit, UVLO,8V ~ 16V,-40°C ~ 125°C,Surface Mount,22-PowerVFQFN,22-QFN (3x5),170 µA,General Purpose,15A,1,Yes,Current Limit
MP5021GQV-Z Classification
PMIC - Hot Swap Controllers
FAQ about PMIC - Hot Swap Controllers
-
1. What is the difference between a hot-swap controller and a power switch?
Hot-swap controllers actively manage current and voltage changes during the plug-in process, while ordinary power switches only have simple on-off functions and cannot provide protection and control functions.
-
2. What are the common protection functions of hot-swap controllers?
Typical protection functions include overcurrent protection, short-circuit protection, overvoltage protection, undervoltage lockout, overtemperature protection, etc. These protection functions ensure the safety of equipment under different conditions.
-
3. How to test the performance of hot-swap controllers?
Performance tests can include plug-in tests, current limiting tests, protection function verification, and current surge measurements. Using an oscilloscope to observe the current and voltage changes at the moment of plug-in is an effective way to verify its performance.
