Vishay Dale RN55C6571BBSL

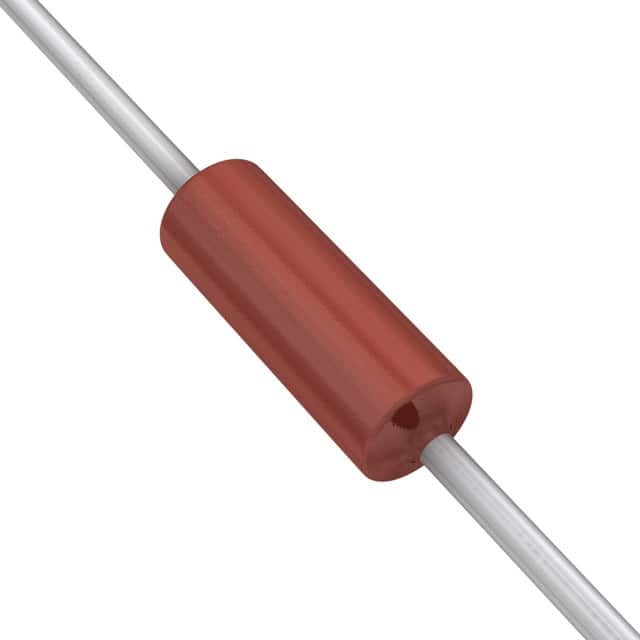

The picture is for reference only, please refer to the product specification
- RN55C6571BBSL
- Vishay Dale
- RES 6.57K OHM 1/8W .1% AXIAL
- Through Hole Resistors
- RN55C6571BBSL Datasheet
- Axial
- Bulk
-
Lead free / RoHS Compliant - 2945
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is RN55C6571BBSL
Vishay Dale Part Number RN55C6571BBSL（Through Hole Resistors）, developed and manufactured by Vishay Dale, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
RN55C6571BBSL is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
RN55C6571BBSL Specifications
- Part NumberRN55C6571BBSL
- CategoryThrough Hole Resistors
- ManufacturerVishay Dale
- DescriptionRES 6.57K OHM 1/8W .1% AXIAL
- PackageBulk
- SeriesMilitary, MIL-R-10509/7, RN55
- FeaturesFlame Retardant Coating, Military, Moisture Resistant, Safety
- Operating Temperature-65°C ~ 175°C
- Package / CaseAxial
- Supplier Device PackageAxial
- Tolerance±0.1%
- Temperature Coefficient±50ppm/°C
- Size / Dimension0.090" Dia x 0.240" L (2.29mm x 6.10mm)
- Power (Watts)0.125W, 1/8W
- Height - Seated (Max)-
- Failure Rate-
- Resistance6.57 kOhms
- CompositionMetal Film
- Number of Terminations2
Application of RN55C6571BBSL
RN55C6571BBSL Datasheet
RN55C6571BBSL Datasheet , Bulk,Military, MIL-R-10509/7, RN55,Flame Retardant Coating, Military, Moisture Resistant, Safety,-65°C ~ 175°C,Axial,Axial,±0.1%,±50ppm/°C,0.090" Dia x 0.240" L (2.29mm x 6.10mm),0.125W, 1/8W,6.57
RN55C6571BBSL Classification
Through Hole Resistors
FAQ about Through Hole Resistors
-
1. Through-hole resistor calculation method
The calculation method of through-hole resistor mainly depends on the basic calculation formula of resistor, that is, R=P*L/s, where R represents the resistance value, ρ is the resistivity, L is the length of the resistor, and S is the cross-sectional area of the resistor.
Through-hole resistors usually have a metal film or carbon film on the outside and a through hole in the middle. This structure allows for easy installation by inserting a metal rod. Through-hole resistors can be divided into precision and ordinary types. Precision plug-in resistors refer to resistors whose parameters meet certain requirements, such as a precision of 0.1%, a package of 1550, and a TCR (temperature coefficient) of 10PPM/℃. -
2. Resistor parameters
Through-hole resistor 10k/0.25w parameters
The parameters of the through-hole resistor 10k/0.25w include nominal resistance 10KΩ, rated power 0.25W, accuracy 1%, and installation type is through-hole.
Nominal resistance: 10KΩ, indicating that the basic resistance of the resistor is 10,000 ohms.
Rated power: 0.25W, meaning that the maximum power the resistor can withstand continuously is 0.25 watts.
Accuracy: 1%, indicating that the deviation between the actual resistance of the resistor and the nominal resistance does not exceed 1%.
Mounting type: through-hole, indicating that this resistor is suitable for through-hole installation, usually for through-hole installation on circuit boards. -
3. What are the advantages of through-hole resistors?
Strong component connection: Through-hole technology passes through the circuit board through physical leads and is soldered on the other side, forming a strong connection that can resist mechanical stress. This makes through-hole resistors an excellent choice for components that are subject to physical strain, such as connectors, switches, or large, heavy components.
Reliable performance at high temperatures: Through-hole components are generally more resistant to extreme thermal environments, which is beneficial for applications that operate in high-temperature environments or undergo significant thermal cycles.
Easy to prototype and debug: Through-hole components are generally easier to use for manual assembly, prototyping, or testing. They can be manually inserted and soldered, making it easy to debug or modify prototypes.
Enhanced testability: Circuit boards designed with through-hole designs inherently provide excellent testability. The lead ends of the devices in the through-hole board also act as test nodes, which enables efficient online testing because the test probes can easily access them from the bottom. This makes it easier and more efficient to diagnose and fix any potential problems.
