KOA Speer Electronics, Inc. RN732BTTD3571F25

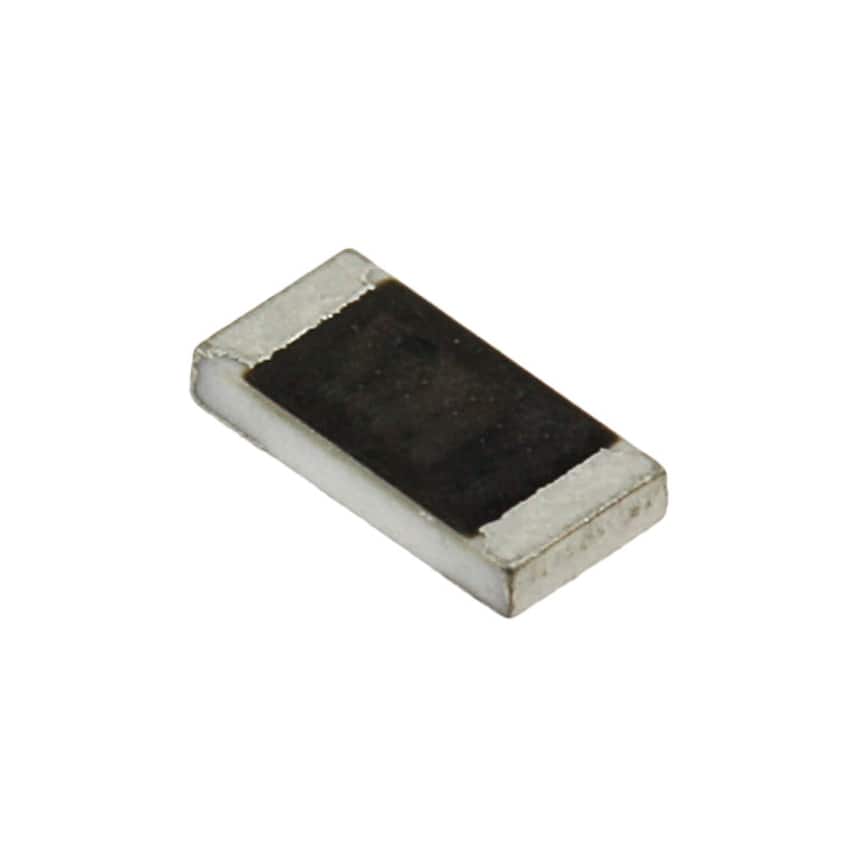

The picture is for reference only, please refer to the product specification
- RN732BTTD3571F25
- KOA Speer Electronics, Inc.
- RES 3.57K OHM 1% 1/8W 1206
- Chip Resistor - Surface Mount
- RN732BTTD3571F25 Datasheet
- 1206 (3216 Metric)
- Tape & Reel (TR)
-
Lead free / RoHS Compliant - 3516
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is RN732BTTD3571F25
KOA Speer Electronics, Inc. Part Number RN732BTTD3571F25（Chip Resistor - Surface Mount）, developed and manufactured by KOA Speer Electronics, Inc., distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
RN732BTTD3571F25 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
RN732BTTD3571F25 Specifications
- Part NumberRN732BTTD3571F25
- CategoryChip Resistor - Surface Mount
- ManufacturerKOA Speer Electronics, Inc.
- DescriptionRES 3.57K OHM 1% 1/8W 1206
- PackageTape & Reel (TR)
- SeriesRN73
- FeaturesMoisture Resistant
- Operating Temperature-55°C ~ 155°C
- Package / Case1206 (3216 Metric)
- Supplier Device Package1206
- Tolerance±1%
- Temperature Coefficient±25ppm/°C
- Size / Dimension0.126" L x 0.063" W (3.20mm x 1.60mm)
- Power (Watts)0.125W, 1/8W
- Ratings-
- Height - Seated (Max)0.028\" (0.70mm)
- Failure Rate-
- Resistance3.57 kOhms
- CompositionThin Film
- Number of Terminations2
Application of RN732BTTD3571F25
RN732BTTD3571F25 Datasheet
RN732BTTD3571F25 Datasheet , Tape & Reel (TR),RN73,Moisture Resistant,-55°C ~ 155°C,1206 (3216 Metric),1206,±1%,±25ppm/°C,0.126" L x 0.063" W (3.20mm x 1.60mm),0.125W, 1/8W,0.028\" (0.70mm),3.57 kOhms,Thin Film,2
RN732BTTD3571F25 Classification
Chip Resistor - Surface Mount
FAQ about Chip Resistor - Surface Mount
-
1. Chip fixed resistor classification?
1. Conventional series thick film chip resistors: including general-purpose resistors in sizes from 0201 to 0805, and resistors in sizes from 1206 to 2512.
2. High-precision and high-stability chip resistors: These resistors have high precision and high stability, with sizes ranging from 0201 to 0603, 0805 to 1210, and 2010 to 2512.
3. Conventional series thin film chip resistors: This refers to general-purpose thin film chip resistors with a wide range of sizes from 0201 to 2512.
4. Low resistance chip resistors: Suitable for circuit applications requiring low resistance values, with sizes ranging from 0402 to 1206, and 2010 to 2512.
5. Chip resistor arrays: Including raised and recessed chip resistor arrays, used in circuits that require multiple resistance values to work simultaneously.
6. Chip current sensor: used to detect the current in the circuit, with low temperature coefficient (TCR) characteristics. -
2. What are the functions of chip fixed resistors?
Chip fixed resistors (chip resistors) play a vital role in electronic devices and systems.
Chip fixed resistors, also known as Chip Resistor, are one of the passive electronic components widely used in the modern electronic manufacturing industry.
1. Voltage division and current shunting: When the chip resistor is in series or parallel with other components such as light bulbs in the circuit, it can play the role of voltage division and current shunting. In a series circuit, the chip resistor shares the voltage with another component; in a parallel circuit, the chip resistor shares the current with other components.
2. Impedance matching: During the signal transmission process, the chip resistor helps to achieve the matching of the load impedance and the internal impedance of the excitation source by adjusting the impedance, thereby optimizing the signal transmission efficiency.
3. Filtering: In the RC charging and discharging circuit composed of a resistor and a capacitor in series, the chip resistor plays a filtering role, helping to stabilize the voltage and current in the circuit and reduce fluctuations and interference.
4. Special resistor functions: Special types of chip resistors, such as resistors made of semiconductor materials, have variable resistance values and are used to achieve more complex circuit functions, such as impedance control.
5. Save space and improve reliability: Due to the small size and light weight of chip resistors, circuit space costs can be greatly saved, making the design more refined. At the same time, its ability to adapt to reflow soldering and wave soldering improves the reliability and efficiency of production. -
3. Resistor tolerance accuracy representation method
The tolerance accuracy of chip resistors refers to the allowable deviation range between the actual value of the resistor and the nominal value. In the digital identification, the tolerance accuracy is usually indicated by the last one or two digits. These numbers correspond to different accuracy levels, for example, 1% accuracy is usually indicated by the number "1", while 0.1% accuracy is indicated by the number "01".
