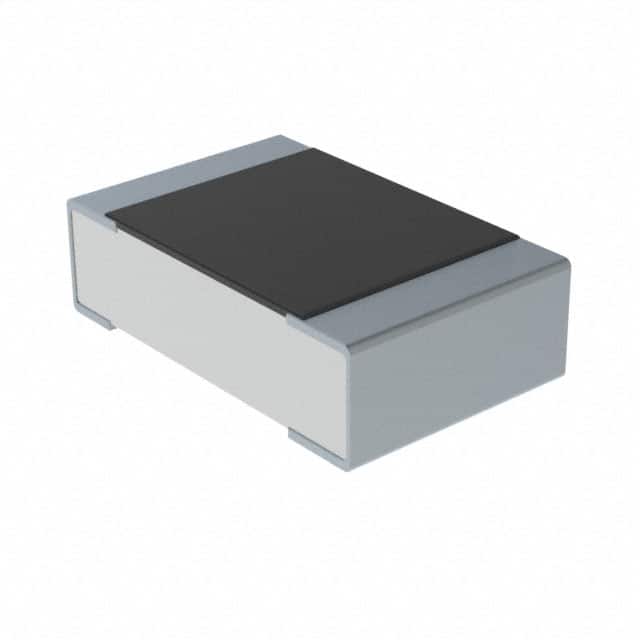

The picture is for reference only, please refer to the product specification

  • RN73H2ATTD3442C25
  • KOA Speer Electronics, Inc.
  • RES 34.4K OHM 0.25% 1/8W 0805
  • Chip Resistor - Surface Mount
  • RN73H2ATTD3442C25 Datasheet
  • 0805 (2012 Metric)
  • -Reel®
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 23905
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is RN73H2ATTD3442C25

KOA Speer Electronics, Inc. Part Number RN73H2ATTD3442C25（Chip Resistor - Surface Mount）, developed and manufactured by KOA Speer Electronics, Inc., distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

RN73H2ATTD3442C25 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

RN73H2ATTD3442C25 Specifications

  • Part NumberRN73H2ATTD3442C25
  • CategoryChip Resistor - Surface Mount
  • ManufacturerKOA Speer Electronics, Inc.
  • DescriptionRES 34.4K OHM 0.25% 1/8W 0805
  • Package-Reel®
  • SeriesRN73H
  • FeaturesAutomotive AEC-Q200, Moisture Resistant
  • Operating Temperature-55°C ~ 155°C
  • Package / Case0805 (2012 Metric)
  • Supplier Device Package0805
  • Tolerance±0.25%
  • Temperature Coefficient±25ppm/°C
  • Size / Dimension0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Power (Watts)0.125W, 1/8W
  • RatingsAEC-Q200
  • Height - Seated (Max)0.024\" (0.60mm)
  • Failure Rate-
  • Resistance34.4 kOhms
  • CompositionMetal Film
  • Number of Terminations2

Application of RN73H2ATTD3442C25

Chip resistance-surface Mount has a wide range of applications, It is widely used in communication equipment (such as mobile phones, TV sets), computer equipment (motherboard, graphics card), automotive electronics (engine control unit, braking system), industrial control (PLC, sensor) and medical equipment (electrocardiograph, blood pressure monitor) and other fields. Its compact size and high-precision characteristics enable electronic equipment to be further miniaturized and refined to meet the diversified needs of modern science and technology.

RN73H2ATTD3442C25 Datasheet

RN73H2ATTD3442C25 Datasheet , -Reel®,RN73H,Automotive AEC-Q200, Moisture Resistant,-55°C ~ 155°C,0805 (2012 Metric),0805,±0.25%,±25ppm/°C,0.079" L x 0.049" W (2.00mm x 1.25mm),0.125W, 1/8W,AEC-Q200,0.024\" (0.60mm),34.4 kOhms,Metal

RN73H2ATTD3442C25 Classification

Chip Resistor - Surface Mount

Chip resistance-surface Mount (Chip resistance-surface mount) Surface Mount is an electronic component assembly technology in which the Resistor and other components are directly pasted to the surface of the printed circuit board. There is no need to reserve the pupil for the original, and the electrical connection is realized by brazing, which greatly improves the integration and processing speed of the circuit board. In the circuit, the chip resistor can not only stabilize the current and voltage, prevent excessive current or voltage from causing damage to the chip, but also carry out impedance matching in signal transmission to ensure that the signal is smooth and without loss. In addition, the chip resistance can also filter out the interference signal, improve the anti-interference ability of the system, and ensure the stability and reliability of the circuit. Surface mounting of chip resistance can greatly improve the efficiency of chip resistance.

FAQ about Chip Resistor - Surface Mount

  • 1. What is a Chip Resistor?

    Chip Resistor, also known as chip fixed resistors, are resistors designed for surface mounting. They can be mounted directly to the surface of a printed circuit board (PCB) without drilling holes like traditional through-hole components.

    Such resistors are usually much smaller than traditional resistors, so they take up much less space on the circuit board. The use of SMD resistors is due to the invention of surface mount technology (SMT), which not only reduces the size of components, but also greatly reduces the time to manufacture circuits. SMD resistors are mainly used in professionally manufactured PCBs, while through-hole resistors are more commonly used in most homemade circuits because they are more convenient to install and do not require specialized equipment.

    There are many ways to express the resistance value of SMD resistors, including direct marking, three-digit digital representation, four-digit digital representation, EIAJ code representation, etc. These methods enable the resistance value of the resistor to be clearly marked on the resistor for easy identification and use. In addition, SMD resistors are also resistant to moisture and high temperatures, and have a small temperature coefficient, which allows them to maintain good performance in various environments.

  • 2. Characteristics of chip fixed resistors?

    Characteristics of chip fixed resistors mainly include small size, light weight, adaptability to reflow soldering and wave soldering, stable electrical performance and high reliability, low assembly cost, compatibility with automatic mounting equipment, high mechanical strength, and superior high-frequency characteristics. ‌

    Chip fixed resistors are small and light, which facilitates the layout and installation of circuits and saves space. Adapting to the technical requirements of reflow soldering and wave soldering makes them highly applicable in modern electronic manufacturing processes. The stability and high reliability of electrical performance ensure the long-term stable operation of the circuit and reduce the failure rate. The low assembly cost and compatibility with automatic mounting equipment improve production efficiency and reduce manufacturing costs.

  • 3. Chip Resistor package power relationship

    Formula
    Current = (rated power / resistance) square root
    Power P = U2 / R
    Package Rated power 70°C Maximum operating voltage (V) Imperial (inch) Metric (mm)
    0201 0603 1/20W / 25
    0402 1005 1/16W / 50
    0603 1608 1/16W 1/10W 50
    0805 2012 1/10W 1/8W 150
    1206 3216 1/8W 1/4W 200
    1210 3225 1/4W 1/3W 200
    1812 4832 1/2W / 200
    2010 5025 1/2W 3/4W 200
    2512 6432 1W / 200
