RN73H2ETTD3093C10

KOA Speer Electronics, Inc. RN73H2ETTD3093C10

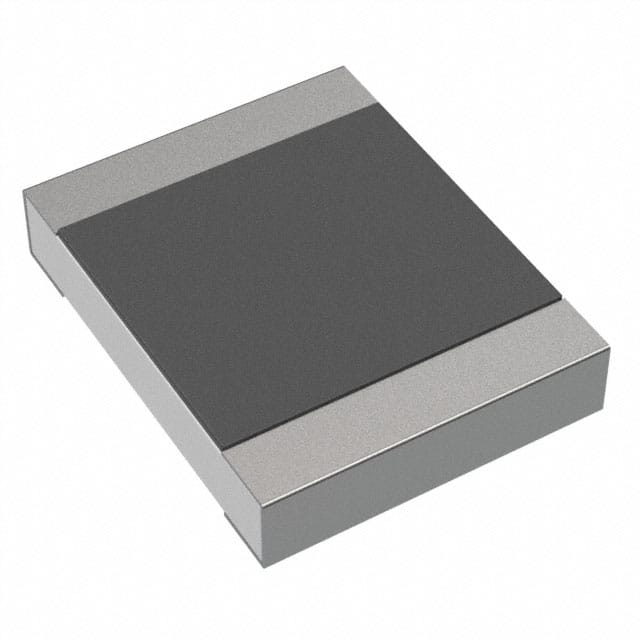

The picture is for reference only, please refer to the product specification

  • RN73H2ETTD3093C10
  • KOA Speer Electronics, Inc.
  • RES 309K OHM 0.25% 1/4W 1210
  • Chip Resistor - Surface Mount
  • RN73H2ETTD3093C10 Datasheet
  • 1210 (3225 Metric)
  • Cut Tape (CT)
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 2553
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is RN73H2ETTD3093C10

KOA Speer Electronics, Inc. Part Number RN73H2ETTD3093C10（Chip Resistor - Surface Mount）, developed and manufactured by KOA Speer Electronics, Inc., distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

RN73H2ETTD3093C10 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

RN73H2ETTD3093C10 Specifications

  • Part NumberRN73H2ETTD3093C10
  • CategoryChip Resistor - Surface Mount
  • ManufacturerKOA Speer Electronics, Inc.
  • DescriptionRES 309K OHM 0.25% 1/4W 1210
  • PackageCut Tape (CT)
  • SeriesRN73H
  • FeaturesAutomotive AEC-Q200, Moisture Resistant
  • Operating Temperature-55°C ~ 155°C
  • Package / Case1210 (3225 Metric)
  • Supplier Device Package1210
  • Tolerance±0.25%
  • Temperature Coefficient±10ppm/°C
  • Size / Dimension0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Power (Watts)0.25W, 1/4W
  • RatingsAEC-Q200
  • Height - Seated (Max)0.028\" (0.70mm)
  • Failure Rate-
  • Resistance309 kOhms
  • CompositionMetal Film
  • Number of Terminations2

Application of RN73H2ETTD3093C10

Chip resistance-surface Mount has a wide range of applications, It is widely used in communication equipment (such as mobile phones, TV sets), computer equipment (motherboard, graphics card), automotive electronics (engine control unit, braking system), industrial control (PLC, sensor) and medical equipment (electrocardiograph, blood pressure monitor) and other fields. Its compact size and high-precision characteristics enable electronic equipment to be further miniaturized and refined to meet the diversified needs of modern science and technology.

RN73H2ETTD3093C10 Datasheet

RN73H2ETTD3093C10 Datasheet , Cut Tape (CT),RN73H,Automotive AEC-Q200, Moisture Resistant,-55°C ~ 155°C,1210 (3225 Metric),1210,±0.25%,±10ppm/°C,0.126" L x 0.098" W (3.20mm x 2.50mm),0.25W, 1/4W,AEC-Q200,0.028\" (0.70mm),309

RN73H2ETTD3093C10 Classification

Chip Resistor - Surface Mount

Chip resistance-surface Mount (Chip resistance-surface mount) Surface Mount is an electronic component assembly technology in which the Resistor and other components are directly pasted to the surface of the printed circuit board. There is no need to reserve the pupil for the original, and the electrical connection is realized by brazing, which greatly improves the integration and processing speed of the circuit board. In the circuit, the chip resistor can not only stabilize the current and voltage, prevent excessive current or voltage from causing damage to the chip, but also carry out impedance matching in signal transmission to ensure that the signal is smooth and without loss. In addition, the chip resistance can also filter out the interference signal, improve the anti-interference ability of the system, and ensure the stability and reliability of the circuit. Surface mounting of chip resistance can greatly improve the efficiency of chip resistance.

FAQ about Chip Resistor - Surface Mount

  • 1. Chip fixed resistor classification?

    1. Conventional series thick film chip resistors: including general-purpose resistors in sizes from 0201 to 0805, and resistors in sizes from 1206 to 2512.
    ‌2. High-precision and high-stability chip resistors: These resistors have high precision and high stability, with sizes ranging from 0201 to 0603, 0805 to 1210, and 2010 to 2512.
    ‌3. Conventional series thin film chip resistors: This refers to general-purpose thin film chip resistors with a wide range of sizes from 0201 to 2512.
    ‌4. Low resistance chip resistors: Suitable for circuit applications requiring low resistance values, with sizes ranging from 0402 to 1206, and 2010 to 2512.
    ‌5. Chip resistor arrays: Including raised and recessed chip resistor arrays, used in circuits that require multiple resistance values ​​to work simultaneously.
    ‌6. Chip current sensor‌: used to detect the current in the circuit, with low temperature coefficient (TCR) characteristics.

  • 2. What is the number of chip resistors?

    Chip resistors are one of the commonly used components in electronic circuits, and their digital identification is an important basis for identifying resistance values ​​and accuracy. The digital identification is usually printed on the surface of the resistor and consists of several digits. These digits not only indicate the specific resistance value of the resistor, but also imply the tolerance accuracy information of the resistor.

  • 3. Chip Resistor package power relationship

    Formula
    Current = (rated power / resistance) square root
    Power P = U2 / R
    Package Rated power 70°C Maximum operating voltage (V) Imperial (inch) Metric (mm)
    0201 0603 1/20W / 25
    0402 1005 1/16W / 50
    0603 1608 1/16W 1/10W 50
    0805 2012 1/10W 1/8W 150
    1206 3216 1/8W 1/4W 200
    1210 3225 1/4W 1/3W 200
    1812 4832 1/2W / 200
    2010 5025 1/2W 3/4W 200
    2512 6432 1W / 200
