KOA Speer Electronics, Inc. RN73R2ATTD1381F100

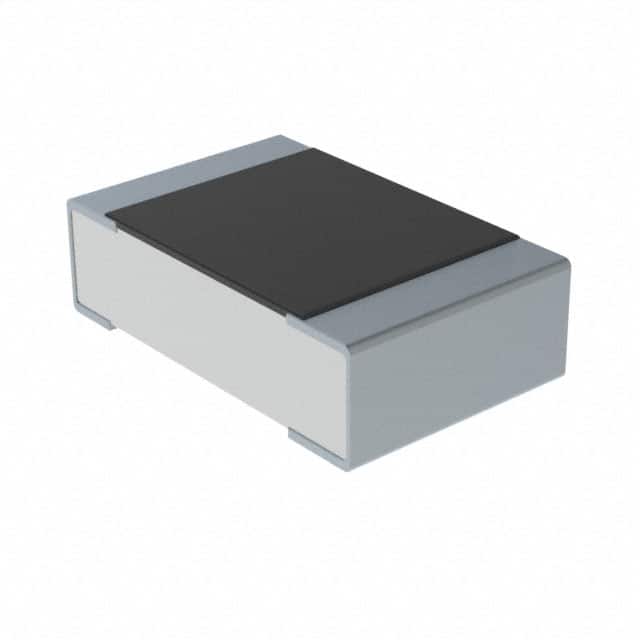

The picture is for reference only, please refer to the product specification
- RN73R2ATTD1381F100
- KOA Speer Electronics, Inc.
- RES 1.38K OHM 1% 1/8W 0805
- Chip Resistor - Surface Mount
- RN73R2ATTD1381F100 Datasheet
- 0805 (2012 Metric)
- Tape & Reel (TR)
-
Lead free / RoHS Compliant - 2385
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is RN73R2ATTD1381F100
KOA Speer Electronics, Inc. Part Number RN73R2ATTD1381F100（Chip Resistor - Surface Mount）, developed and manufactured by KOA Speer Electronics, Inc., distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
RN73R2ATTD1381F100 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
RN73R2ATTD1381F100 Specifications
- Part NumberRN73R2ATTD1381F100
- CategoryChip Resistor - Surface Mount
- ManufacturerKOA Speer Electronics, Inc.
- DescriptionRES 1.38K OHM 1% 1/8W 0805
- PackageTape & Reel (TR)
- SeriesRN73R
- FeaturesAutomotive AEC-Q200, Moisture Resistant
- Operating Temperature-55°C ~ 155°C
- Package / Case0805 (2012 Metric)
- Supplier Device Package0805
- Tolerance±1%
- Temperature Coefficient±100ppm/°C
- Size / Dimension0.079" L x 0.049" W (2.00mm x 1.25mm)
- Power (Watts)0.125W, 1/8W
- RatingsAEC-Q200
- Height - Seated (Max)0.024\" (0.60mm)
- Failure Rate-
- Resistance1.38 kOhms
- CompositionThin Film
- Number of Terminations2
Application of RN73R2ATTD1381F100
RN73R2ATTD1381F100 Datasheet
RN73R2ATTD1381F100 Datasheet , Tape & Reel (TR),RN73R,Automotive AEC-Q200, Moisture Resistant,-55°C ~ 155°C,0805 (2012 Metric),0805,±1%,±100ppm/°C,0.079" L x 0.049" W (2.00mm x 1.25mm),0.125W, 1/8W,AEC-Q200,0.024\" (0.60mm),1.38
RN73R2ATTD1381F100 Classification
Chip Resistor - Surface Mount
FAQ about Chip Resistor - Surface Mount
-
1. What are the functions of chip fixed resistors?
Chip fixed resistors (chip resistors) play a vital role in electronic devices and systems.
Chip fixed resistors, also known as Chip Resistor, are one of the passive electronic components widely used in the modern electronic manufacturing industry.
1. Voltage division and current shunting: When the chip resistor is in series or parallel with other components such as light bulbs in the circuit, it can play the role of voltage division and current shunting. In a series circuit, the chip resistor shares the voltage with another component; in a parallel circuit, the chip resistor shares the current with other components.
2. Impedance matching: During the signal transmission process, the chip resistor helps to achieve the matching of the load impedance and the internal impedance of the excitation source by adjusting the impedance, thereby optimizing the signal transmission efficiency.
3. Filtering: In the RC charging and discharging circuit composed of a resistor and a capacitor in series, the chip resistor plays a filtering role, helping to stabilize the voltage and current in the circuit and reduce fluctuations and interference.
4. Special resistor functions: Special types of chip resistors, such as resistors made of semiconductor materials, have variable resistance values and are used to achieve more complex circuit functions, such as impedance control.
5. Save space and improve reliability: Due to the small size and light weight of chip resistors, circuit space costs can be greatly saved, making the design more refined. At the same time, its ability to adapt to reflow soldering and wave soldering improves the reliability and efficiency of production. -
2. What is the number of chip resistors?
Chip resistors are one of the commonly used components in electronic circuits, and their digital identification is an important basis for identifying resistance values and accuracy. The digital identification is usually printed on the surface of the resistor and consists of several digits. These digits not only indicate the specific resistance value of the resistor, but also imply the tolerance accuracy information of the resistor.
-
3. Resistor digital identification interpretation example
To better understand the interpretation method of chip resistor digital identification, let's look at an example. Assuming that the digital identification on a chip resistor is "1001", what is the resistance value of this resistor? What is the accuracy?
First, we interpret the first three digits "100", indicating that the resistance value is 100 ohms. Next, we look at the last digit "1", which indicates that the tolerance accuracy of the resistor is 1%. Therefore, the resistance of this chip resistor is 100 ohms and the tolerance accuracy is ±1%.
