KOA Speer Electronics, Inc. RN73R2ATTD2230D50

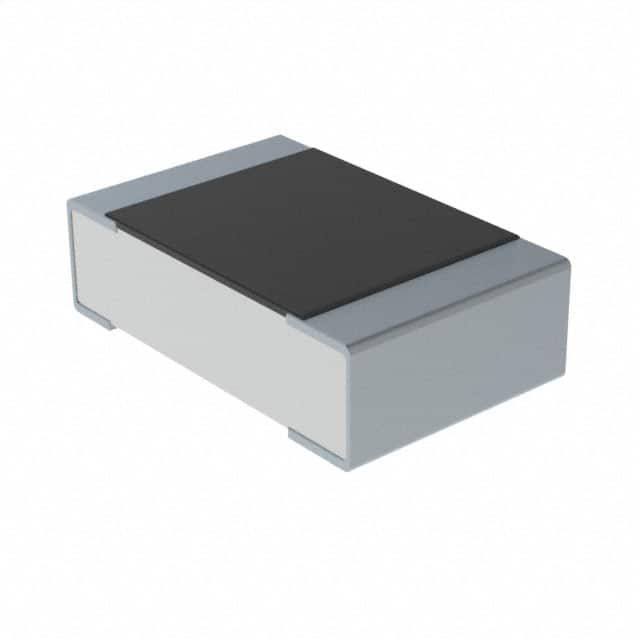

The picture is for reference only, please refer to the product specification
- RN73R2ATTD2230D50
- KOA Speer Electronics, Inc.
- RES 223 OHM 0.5% 1/8W 0805
- Chip Resistor - Surface Mount
- RN73R2ATTD2230D50 Datasheet
- 0805 (2012 Metric)
- Tape & Reel (TR)
-
Lead free / RoHS Compliant - 3993
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is RN73R2ATTD2230D50
KOA Speer Electronics, Inc. Part Number RN73R2ATTD2230D50（Chip Resistor - Surface Mount）, developed and manufactured by KOA Speer Electronics, Inc., distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
RN73R2ATTD2230D50 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
RN73R2ATTD2230D50 Specifications
- Part NumberRN73R2ATTD2230D50
- CategoryChip Resistor - Surface Mount
- ManufacturerKOA Speer Electronics, Inc.
- DescriptionRES 223 OHM 0.5% 1/8W 0805
- PackageTape & Reel (TR)
- SeriesRN73R
- FeaturesAutomotive AEC-Q200, Moisture Resistant
- Operating Temperature-55°C ~ 155°C
- Package / Case0805 (2012 Metric)
- Supplier Device Package0805
- Tolerance±0.5%
- Temperature Coefficient±50ppm/°C
- Size / Dimension0.079" L x 0.049" W (2.00mm x 1.25mm)
- Power (Watts)0.125W, 1/8W
- RatingsAEC-Q200
- Height - Seated (Max)0.024\" (0.60mm)
- Failure Rate-
- Resistance223 Ohms
- CompositionThin Film
- Number of Terminations2
Application of RN73R2ATTD2230D50
RN73R2ATTD2230D50 Datasheet
RN73R2ATTD2230D50 Datasheet , Tape & Reel (TR),RN73R,Automotive AEC-Q200, Moisture Resistant,-55°C ~ 155°C,0805 (2012 Metric),0805,±0.5%,±50ppm/°C,0.079" L x 0.049" W (2.00mm x 1.25mm),0.125W, 1/8W,AEC-Q200,0.024\" (0.60mm),223
RN73R2ATTD2230D50 Classification
Chip Resistor - Surface Mount
FAQ about Chip Resistor - Surface Mount
-
1. Chip fixed resistor classification?
1. Conventional series thick film chip resistors: including general-purpose resistors in sizes from 0201 to 0805, and resistors in sizes from 1206 to 2512.
2. High-precision and high-stability chip resistors: These resistors have high precision and high stability, with sizes ranging from 0201 to 0603, 0805 to 1210, and 2010 to 2512.
3. Conventional series thin film chip resistors: This refers to general-purpose thin film chip resistors with a wide range of sizes from 0201 to 2512.
4. Low resistance chip resistors: Suitable for circuit applications requiring low resistance values, with sizes ranging from 0402 to 1206, and 2010 to 2512.
5. Chip resistor arrays: Including raised and recessed chip resistor arrays, used in circuits that require multiple resistance values to work simultaneously.
6. Chip current sensor: used to detect the current in the circuit, with low temperature coefficient (TCR) characteristics. -
2. Resistance value representation method
In the digital identification of chip resistors, the first three digits are usually used to indicate the resistance value. These digits are interpreted in decimal, such as "100" means the resistance value is 100 ohms. In some cases, if the resistor value is large, "R" may be used to indicate the decimal point position, such as "1R0" for a resistor value of 1.0 ohm.
-
3. Resistors Guide
When interpreting the digital identification of chip resistors, you need to pay attention to the following points:
1. Make sure to correctly identify each digit in the digital identification to avoid misreading and misjudging the resistance value or accuracy.
2. Be familiar with the digital representation methods corresponding to different accuracy levels so that you can quickly and accurately judge the tolerance accuracy of the resistor.
3. In actual applications, you also need to consider the operating temperature range, power and other parameters of the resistor to ensure its stable and reliable performance.
