Recom Power RSD-1509/H-R

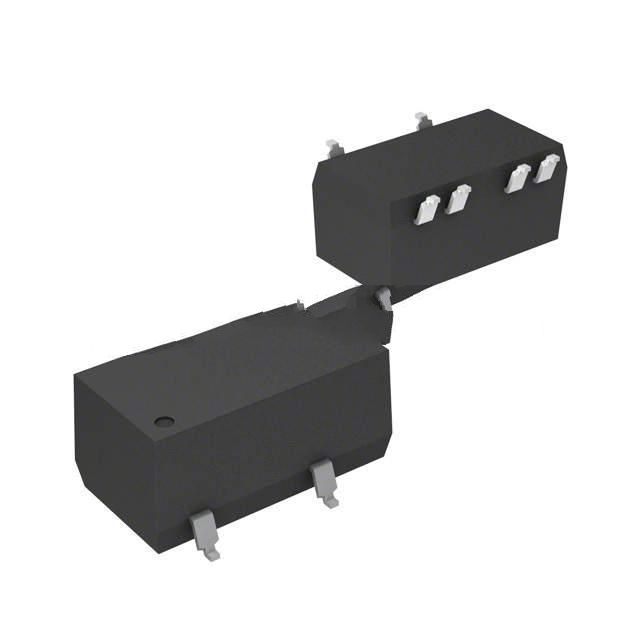

The picture is for reference only, please refer to the product specification
- RSD-1509/H-R
- Recom Power
- CONV DC/DC 1W 15VIN +/-09VOUT
- DC DC Converters
- RSD-1509/H-R Datasheet
- 10-SMD Module, 6 Leads
- 10-SMD Module, 6 Leads
-
Lead free / RoHS Compliant - 3509
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is RSD-1509/H-R
Recom Power Part Number RSD-1509/H-R（DC DC Converters）, developed and manufactured by Recom Power, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
RSD-1509/H-R is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
RSD-1509/H-R Specifications
- Part NumberRSD-1509/H-R
- CategoryDC DC Converters
- ManufacturerRecom Power
- DescriptionCONV DC/DC 1W 15VIN +/-09VOUT
- Package10-SMD Module, 6 Leads
- SeriesECONOLINE RSD
- TypeIsolated Module
- FeaturesSCP
- Operating Temperature-40°C ~ 85°C
- Mounting TypeSurface Mount
- Package / Case10-SMD Module, 6 Leads
- ApplicationsITE (Commercial), Medical
- Number of Outputs2
- Voltage - Input (Min)13.5V
- Voltage - Input (Max)16.5V
- Voltage - Output 19V
- Current - Output (Max)56mA, 56mA
- Size / Dimension0.60" L x 0.32" W x 0.29" H (15.2mm x 8.2mm x 7.3mm)
- Power (Watts)1W
- Voltage - Isolation3kV
- Efficiency78%
- Voltage - Output 2-9V
Application of RSD-1509/H-R
RSD-1509/H-R Datasheet
RSD-1509/H-R Datasheet , 10-SMD Module, 6 Leads,ECONOLINE RSD,Isolated Module,SCP,-40°C ~ 85°C,Surface Mount,10-SMD Module, 6 Leads,ITE (Commercial), Medical,2,13.5V,16.5V,9V,56mA, 56mA,0.60" L x 0.32" W x 0.29" H (15.2mm x 8.2mm x
RSD-1509/H-R Classification
DC DC Converters
FAQ about DC DC Converters
-
1. What is a DC-DC converter?
A DC-DC converter is an electronic device that converts one DC voltage level to another. This conversion can be step-up (from low voltage to high voltage), step-down (from high voltage to low voltage), or isolated.
-
2. What are DC-DC converters used in cars?
DC-DC converters used in cars are generally used to convert the main battery voltage (for example, the high-voltage battery in electric vehicles) to a low-voltage DC power suitable for various electrical appliances in the car.
-
3. What is the difference between a DC-DC converter and a controller?
DC-DC converter: The main function is to change the voltage level.
Controller: Controls the operation of the converter, ensures that the output voltage is stable, and adjusts the output according to demand.
