TRS5-70BLRU

KEMET TRS5-70BLRU

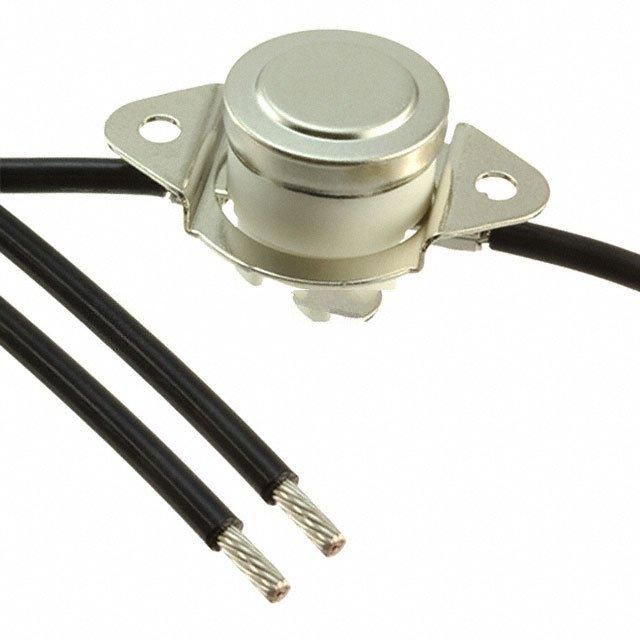

The picture is for reference only, please refer to the product specification

  • TRS5-70BLRU
  • KEMET
  • THERMAL REED SWITCH 70C 100V BRE
  • Temperature Sensors - Thermostats - Mechanical
  • TRS5-70BLRU Datasheet
  • Module
  • Module
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 2757
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is TRS5-70BLRU

KEMET Part Number TRS5-70BLRU（Temperature Sensors - Thermostats - Mechanical）, developed and manufactured by KEMET, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

TRS5-70BLRU is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

TRS5-70BLRU Specifications

  • Part NumberTRS5-70BLRU
  • CategoryTemperature Sensors - Thermostats - Mechanical
  • ManufacturerKEMET
  • DescriptionTHERMAL REED SWITCH 70C 100V BRE
  • PackageModule
  • SeriesTRS5?
  • Mounting TypeChassis Mount
  • Package / CaseModule
  • Tolerance±4.5°F (±2.5°C)
  • CircuitSPST-NC
  • Termination StyleWire Leads - 8" (203.2mm)
  • Switching Temperature158°F (70°C)
  • Reset Temperature140°F (60°C)

Application of TRS5-70BLRU

Temperature Sensors - Thermostats - Mechanical is widely used in various fields such as home appliances, industrial control, refrigeration equipment, etc. In the field of home appliances, it is commonly used in temperature control systems for refrigerators, air conditioners, and other products to ensure stable operation within the set temperature range and improve user comfort. In industrial control, mechanical temperature controllers are used for temperature monitoring of equipment such as boilers and heat treatment furnaces to ensure the safety and efficiency of the production process. In addition, its stable and reliable performance is widely used in refrigeration equipment such as refrigerators and cold storage facilities, effectively ensuring the quality and safety of stored items.

TRS5-70BLRU Datasheet

TRS5-70BLRU Datasheet , Module,TRS5?,Chassis Mount,Module,±4.5°F (±2.5°C),SPST-NC,Wire Leads - 8" (203.2mm),158°F (70°C),140°F (60°C)

TRS5-70BLRU Classification

Temperature Sensors - Thermostats - Mechanical

Temperature Sensors - Thermostats - Mechanical is a device that senses environmental temperature changes and controls equipment operation through mechanical principles. Its core components include temperature sensing elements, mechanical actuators, and regulating mechanisms. Temperature sensing elements (such as bimetallic sheets and liquid expansion elements) undergo physical deformation with temperature changes, driving mechanical actuators (such as contact switches) to operate, thereby controlling the on/off of circuits and achieving automatic temperature regulation. Mechanical temperature controllers are widely used in various scenarios that require temperature control due to their simple structure, low cost, and high reliability.

FAQ about Temperature Sensors - Thermostats - Mechanical

  • 1. What temperature sensor does the thermostat use?

    The thermostat mainly uses thermocouples and PT100 temperature sensors. Thermocouple sensors are usually packaged in a stainless steel shell, filled with thermal conductive materials and sealing materials. They are suitable for a variety of temperature measurement scenarios, have a fast response speed, and are suitable for medical, HVAC, refrigeration, environmental experiments and other fields. 1. The PT100 sensor is a high-precision temperature sensor, often used in precision thermostat equipment.

  • 2. What are the 4 types of temperature sensors?

    There are four main types of temperature sensors:
    Thermocouple sensor: A thermocouple is a temperature sensing element that forms a closed loop through two conductors of different materials. When there is a temperature gradient at both ends, a current will flow through the loop, generating a thermoelectric potential signal, thereby measuring the temperature. Thermocouples have a wide temperature measurement range, but there are problems such as low sensitivity, low stability, and slow response speed.
    Thermistor sensor: The main component of thermistor sensor is thermistor. When there is thermal radiation around the thermosensitive material, it will absorb the radiant heat, causing the material resistance to change. Thermistors are usually made of polymer or ceramic materials and have a nonlinear temperature-resistance relationship, which requires correction to correctly interpret the data. Thermistors are suitable for highly sensitive and small temperature measurement occasions and are inexpensive.
    Resistance temperature detector (RTD): RTD usually uses metals such as platinum, copper or nickel. The resistance of these metals changes with temperature, has a large temperature coefficient and a fast response speed. RTD has a wide temperature measurement range, can resist thermal fatigue, and is suitable for precision measurement.
    Integrated Circuit (IC) Temperature Sensor: IC temperature sensor is made of silicon semiconductor integration process, with the characteristics of single function, small temperature measurement error, low price, fast response speed, long transmission distance, etc. IC sensor is suitable for long-distance temperature measurement and control, does not require nonlinear calibration, and has simple peripheral circuit.

  • 3. What is the difference between thermostat and temperature sensor?

    Thermostats and temperature sensors are significantly different in function and use.
    Definition and function of thermostat
    A thermostat is a temperature sensing device used to automatically open or close a circuit to keep the controlled component within a certain temperature range. It measures temperature changes through sensitive elements and controls heat and cold sources through converters to maintain the desired temperature. Thermostats usually have fixed or adjustable action temperatures and can directly or indirectly control one or more heat and cold sources.
    Definition and function of temperature sensor
    A temperature sensor is a device that measures the degree of hotness or coldness of an object and provides temperature measurement through electrical signals. Common types include thermocouples and resistance temperature detectors. Temperature sensors are divided into contact and non-contact types:
    Contact temperature sensor: requires physical contact with the object being measured and monitors temperature changes through conduction. Suitable for detecting solids, liquids or gases.
    Non-contact temperature sensors: use convection and radiation to monitor temperature changes and are suitable for detecting liquids and gases. These sensors can detect radiant energy transmitted from an object in the form of infrared radiation.
