EEF-HX1A680R

Panasonic Electronic Components EEF-HX1A680R

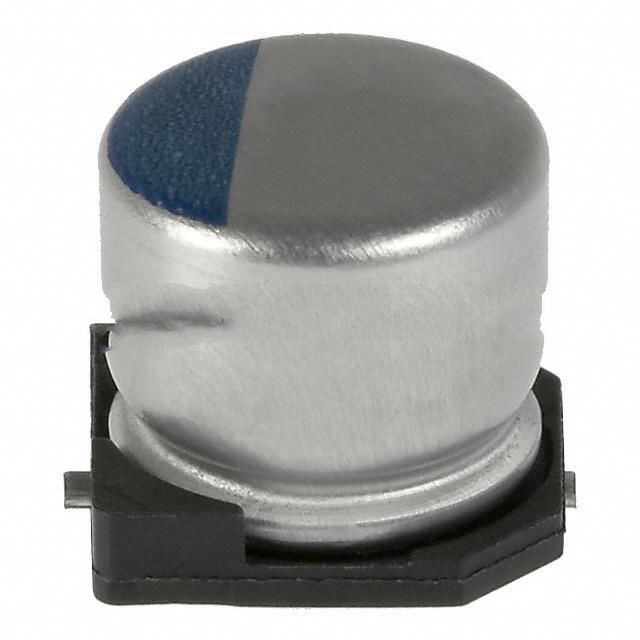

The picture is for reference only, please refer to the product specification

  • EEF-HX1A680R
  • Panasonic Electronic Components
  • CAP ALUM POLY 68UF 20% 10V SMD
  • Aluminum - Polymer Capacitors
  • EEF-HX1A680R Datasheet
  • 2917 (7343 Metric)
  • Tape & Box (TB)
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 29246
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is EEF-HX1A680R

Panasonic Electronic Components Part Number EEF-HX1A680R（Aluminum - Polymer Capacitors）, developed and manufactured by Panasonic Electronic Components, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

EEF-HX1A680R is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

EEF-HX1A680R Specifications

  • Part NumberEEF-HX1A680R
  • CategoryAluminum - Polymer Capacitors
  • ManufacturerPanasonic Electronic Components
  • DescriptionCAP ALUM POLY 68UF 20% 10V SMD
  • PackageTape & Box (TB)
  • SeriesSP-Cap HX
  • TypePolymer
  • Features-
  • Operating Temperature-55°C ~ 125°C
  • Mounting TypeSurface Mount
  • Package / Case2917 (7343 Metric)
  • ApplicationsGeneral Purpose
  • Tolerance±20%
  • Size / Dimension0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Impedance-
  • Voltage - Rated10 V
  • Lead Spacing-
  • Ratings-
  • Height - Seated (Max)0.079\" (2.00mm)
  • Capacitance68 µF
  • ESR (Equivalent Series Resistance)40mOhm
  • Lifetime @ Temp.1000 Hrs @ 125°C
  • Ripple Current @ Low Frequency-
  • Ripple Current @ High Frequency3.2 A @ 100 kHz
  • Surface Mount Land Size-

Application of EEF-HX1A680R

Aluminum - Polymer Capacitors are widely used in smart phones, tablets, wearable devices, etc., providing stable power filtering and signal coupling functions to ensure the stable operation of these devices and extend battery life. In addition, polymer aluminum capacitors also play an important role in industrial control, power management, communication base stations, medical equipment and other fields, providing stable and efficient energy storage and conversion solutions for various complex electronic systems.

EEF-HX1A680R Datasheet

EEF-HX1A680R Datasheet , Tape & Box (TB),SP-Cap HX,Polymer,-55°C ~ 125°C,Surface Mount,2917 (7343 Metric),General Purpose,±20%,0.287" L x 0.169" W (7.30mm x 4.30mm),10 V,0.079\" (2.00mm),68 µF,40mOhm,1000 Hrs @ 125°C,3.2 A @ 100

EEF-HX1A680R Classification

Aluminum - Polymer Capacitors

Aluminum - Polymer Capacitors are a new type of capacitor that uses aluminum as the anode and conductive polymers as the electrolyte. They combine the advantages of high capacity of traditional aluminum electrolytic capacitors and low ESR (equivalent series resistance) and long lifespan of polymer capacitors. Polymer aluminum capacitors play an important role in electronic circuit design due to their excellent electrical performance, high energy density, good temperature stability, and extremely low leakage current. Its unique polymer electrolyte structure not only improves the high-temperature resistance of capacitors, but also significantly reduces their losses in high-frequency working environments. Widely used in electronic devices that require high reliability, high stability, and long lifespan.

FAQ about Aluminum - Polymer Capacitors

  • 1. What is the difference between aluminum polymer capacitors and traditional aluminum electrolytic capacitors?

    Aluminum polymer capacitors have lower ESR, longer lifespan, high temperature resistance, and high-frequency characteristics compared to traditional aluminum electrolytic capacitors, but the cost is usually higher and their voltage range is lower.

  • 2. What are the advantages of aluminum polymer capacitors?

    They have low ESR, good high-frequency performance, high ripple current handling capability, long lifespan, and stable temperature characteristics, making them particularly suitable for power filtering and voltage stabilization applications.

  • 3. How long is the lifespan of aluminum polymer capacitors?

    Compared to traditional electrolytic capacitors, aluminum polymer capacitors have a longer lifespan, typically reaching thousands or even longer, depending on the application environment and working conditions.
