1-531020-8

TE Connectivity AMP Connectors 1-531020-8

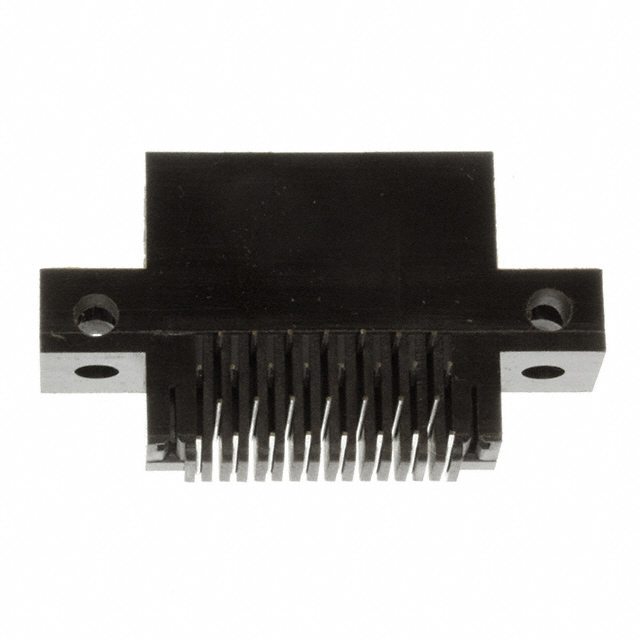

The picture is for reference only, please refer to the product specification

  • 1-531020-8
  • TE Connectivity AMP Connectors
  • CONN EDGE DUAL FMALE 100POS .100
  • Card Edge Connectors - Edgeboard Connectors
  • 1-531020-8 Datasheet
  • -
  • -
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 1618
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is 1-531020-8

TE Connectivity AMP Connectors Part Number 1-531020-8（Card Edge Connectors - Edgeboard Connectors）, developed and manufactured by TE Connectivity AMP Connectors, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

1-531020-8 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

1-531020-8 Specifications

  • Part Number1-531020-8
  • CategoryCard Edge Connectors - Edgeboard Connectors
  • ManufacturerTE Connectivity AMP Connectors
  • DescriptionCONN EDGE DUAL FMALE 100POS .100
  • Package-
  • SeriesRotary Cam
  • FeaturesZero Insertion Force (ZIF)
  • Operating Temperature-55°C ~ 105°C
  • Mounting TypeThrough Hole
  • TerminationSolder
  • Contact MaterialCopper Alloy
  • Contact FinishGold
  • ColorBlack
  • Number of Positions100
  • Pitch0.100" (2.54mm)
  • Contact Finish Thickness30µin (0.76µm)
  • Number of Rows2
  • GenderFemale
  • Contact TypeCantilever
  • Card Thickness0.054" ~ 0.070" (1.37mm ~ 1.78mm)
  • Card TypeNon Specified - Dual Edge

Application of 1-531020-8

Card Edge Connectors - Edgeboard Connectors - have a wide range of applications in many fields. In the computer field, it is a key component of the expansion slots (such as PCI, PCIe slots) on the motherboard, which are used to connect expansion cards such as video cards, sound cards, network cards, and improve the performance and functions of the computer. In the field of communication, it is widely used in network equipment such as switches and routers to ensure high-speed data transmission and stable operation of equipment. In addition, in high-end fields such as industrial automation, medical equipment, aerospace, card edge linkers-edge plate connectors also play an important role, providing reliable support for the electrical connection of various precision equipment. These areas have extremely high performance requirements for connectors, requiring them to maintain stable electrical connections and signal transmission quality in harsh environments.

1-531020-8 Datasheet

1-531020-8 Datasheet , Rotary Cam,Zero Insertion Force (ZIF),-55°C ~ 105°C,Through Hole,Solder,Copper Alloy,Gold,Black,100,0.100" (2.54mm),30µin (0.76µm),2,Female,Cantilever,0.054" ~ 0.070" (1.37mm ~ 1.78mm),Non Specified -

1-531020-8 Classification

Card Edge Connectors - Edgeboard Connectors

Card Edge Connectors - Edgeboard Connectors are specialized connectors used to connect expansion cards to the host board or backplane. This connector typically has a series of parallel metal contacts that are located on the edge of the expansion card, and when the expansion card is inserted into the host board or backplane, these contacts make contact with the corresponding connector contacts to form an electrical connection.

FAQ about Card Edge Connectors - Edgeboard Connectors

  • 1. Can card edge connectors handle high-frequency signals?

    Yes, high-quality card edge connectors are designed to support high-frequency signals with minimal signal loss or interference.

  • 2. Are card edge connectors compatible with automated assembly?

    Yes, many card edge connectors are designed for compatibility with pick-and-place machines used in automated assembly.

  • 3. What industries rely heavily on card edge connectors?

    Industries such as consumer electronics, automotive, aerospace, and medical devices frequently use these connectors.
