F56103101

Honeywell Sensing and Productivity Solutions F56103101

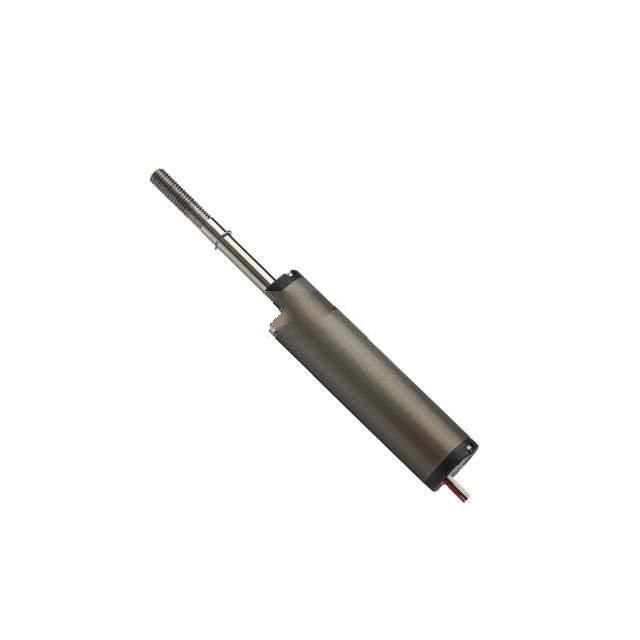

The picture is for reference only, please refer to the product specification

  • F56103101
  • Honeywell Sensing and Productivity Solutions
  • POS TRANS-XDCR SLF 3 IN
  • Position Sensors - Angle, Linear Position Measuring
  • F56103101 Datasheet
  • -
  • -
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 4480
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is F56103101

Honeywell Sensing and Productivity Solutions Part Number F56103101（Position Sensors - Angle, Linear Position Measuring）, developed and manufactured by Honeywell Sensing and Productivity Solutions, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

F56103101 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

F56103101 Specifications

  • Part NumberF56103101
  • CategoryPosition Sensors - Angle, Linear Position Measuring
  • ManufacturerHoneywell Sensing and Productivity Solutions
  • DescriptionPOS TRANS-XDCR SLF 3 IN
  • Package-
  • SeriesSLF
  • Voltage - Supply40V
  • Operating Temperature-65°C ~ 105°C
  • Mounting TypeChassis Mount
  • OutputResistive
  • Linearity±1%
  • TechnologyResistive
  • Actuator TypeRound Shaft
  • Termination StyleConnector
  • Resistance Tolerance±20%
  • Resistance4.5 kOhms
  • For MeasuringLinear Position
  • Linear Range0 ~ 76.20mm (0 ~ 3.00")

Application of F56103101

Angle Position Measuring In robot joint control, automotive steering system, wind turbine blade Angle adjustment and other fields, Angle position sensors ensure high accuracy and stability of operation, improve the overall performance.And Linear Position sensor Linear Position sensor (Linear Position Measuring) on the automatic production line of material localization, the nc machine tool feed, as well as the automatic warehousing system of cargo handling, the precision of the Linear Position sensor to ensure logistics docking and operation of continuous flow, Improved productivity and safety. These two sensors play an important role in industrial automation, intelligent manufacturing, automotive engineering, aerospace, medical equipment, scientific research and other fields. They can provide high-precision position feedback and are an indispensable part of closed-loop control systems, helping to achieve automatic control and precision adjustment of equipment, improve production efficiency and product quality, and also provide protection for the safe operation of complex systems.

F56103101 Datasheet

F56103101 Datasheet , SLF,40V,-65°C ~ 105°C,Chassis Mount,Resistive,±1%,Resistive,Round Shaft,Connector,±20%,4.5 kOhms,Linear Position,0 ~ 76.20mm (0 ~ 3.00")

F56103101 Classification

Position Sensors - Angle, Linear Position Measuring

Position Sensors are devices capable of detecting the movement of an object or determining its relative position, in which, Angle Position Measuring sensors and Linear Position Measuring sensors are two common types that are used to measure the angular and linear motion of an object, respectively. Angle Position Measuring is a sensor used to measure the angular position of rotating objects, which can accurately capture the rotation Angle and direction of the rotating shaft. Such as rotary encoders, potentiometer angular displacement sensors, magnetoresistive angular displacement sensors. A Linear Position Measuring device is used to measure the displacement of an object along a straight line. The ability to convert the linear motion of an object into a readable electrical signal. Such as linear variable differential transformers (LVDT), photoelectric linear position sensors, magnetostrictive linear position sensors.

We are a professional PCB manufacturer who offers comprehensive PCB manufacturing services including: professional Ceramic PCB HDI PCB Heavy Copper PCB High-TG PCB High Speed PCB High Frequency PCB Metal Core PCB PCB fabrication and PCB assembly, providing fast turnaround prototypes for high-end products.

• Prompt Responsiveness

• Guaranteed Quality

• Global Access

• Competitive Market Price

• One-Stop support services of supply chain

Jinftry, Your most trustworthy component supplier, welcome to send us the inquiry, thank you!
