Richtek USA Inc. RT4533GJ6

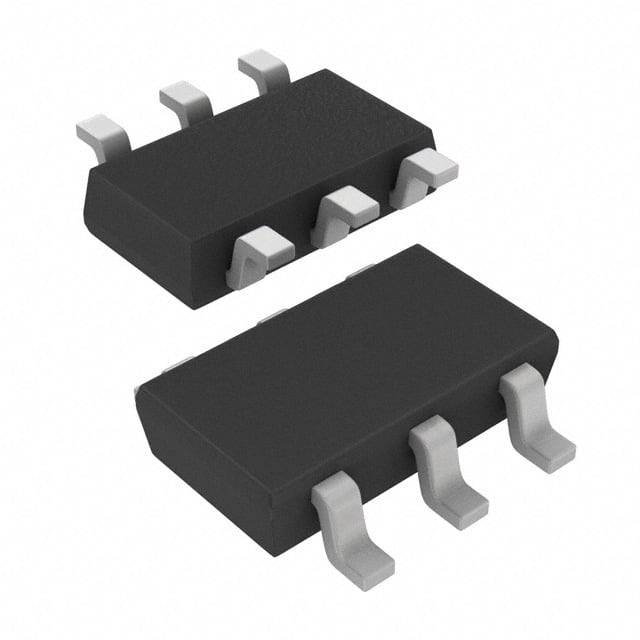

The picture is for reference only, please refer to the product specification
- RT4533GJ6
- Richtek USA Inc.
- IC ASYN BOOST TSOT-23-6
- PMIC - LED Drivers
- RT4533GJ6 Datasheet
- SOT-23-6 Thin, TSOT-23-6
- -Reel®
-
Lead free / RoHS Compliant - 10994
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is RT4533GJ6
Richtek USA Inc. Part Number RT4533GJ6（PMIC - LED Drivers）, developed and manufactured by Richtek USA Inc., distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
RT4533GJ6 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
RT4533GJ6 Specifications
- Part NumberRT4533GJ6
- CategoryPMIC - LED Drivers
- ManufacturerRichtek USA Inc.
- DescriptionIC ASYN BOOST TSOT-23-6
- Package-Reel®
- Series-
- TypeDC DC Regulator
- Operating Temperature-40°C ~ 85°C (TA)
- Mounting TypeSurface Mount
- Package / CaseSOT-23-6 Thin, TSOT-23-6
- Supplier Device PackageTSOT-23-6
- TopologyStep-Up (Boost)
- ApplicationsBacklight
- Number of Outputs1
- Voltage - Output36.5V
- Frequency1.1MHz
- Current - Output / Channel1.2A (Switch)
- Internal Switch(s)Yes
- DimmingPWM
- Voltage - Supply (Max)5.5V
- Voltage - Supply (Min)2.5V
Application of RT4533GJ6
RT4533GJ6 Datasheet
RT4533GJ6 Datasheet , -Reel®,DC DC Regulator,-40°C ~ 85°C (TA),Surface Mount,SOT-23-6 Thin, TSOT-23-6,TSOT-23-6,Step-Up (Boost),Backlight,1,36.5V,1.1MHz,1.2A (Switch),Yes,PWM,5.5V,2.5V
RT4533GJ6 Classification
PMIC - LED Drivers
FAQ about PMIC - LED Drivers
-
1. What is an LED driver for?
The main role of LED drivers is to provide a stable operating current for LEDs. Since LEDs are very sensitive to current, too high a current can cause them to be damaged or their lifespan to be shortened, while too low a current cannot guarantee brightness. Therefore, a suitable driver can ensure that the LED works under safe and efficient conditions.
-
2. How can I tell if an LED driver is broken?
If the LED does not light up or the brightness drops significantly.
The driver is heating abnormally.
There is a distinct burnt smell.
Measure the input and output voltage/current and it does not meet the specification.
Test the status of its internal components through professional equipment. -
3. Why do I need to program an LED driver?
Programming is usually for advanced drivers with programmable functions, such as achieving finer dimming control, color adjustment or other intelligent functions. This allows users to customize the behavior of the driver according to specific needs.
