TIC-L051-11

Tamura TIC-L051-11

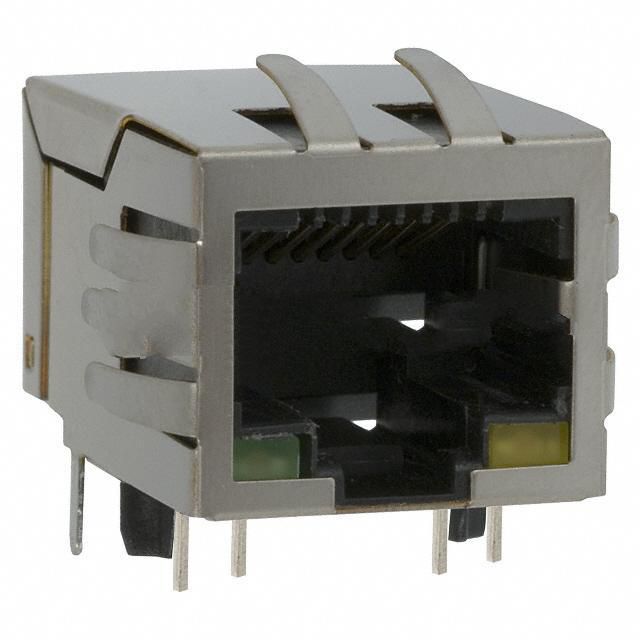

The picture is for reference only, please refer to the product specification

  • TIC-L051-11
  • Tamura
  • CONN MAGJACK 1PORT 10 BASE-T
  • Modular Connectors - Jacks With Magnetics
  • TIC-L051-11 Datasheet
  • -
  • -
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 4893
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is TIC-L051-11

Tamura Part Number TIC-L051-11（Modular Connectors - Jacks With Magnetics）, developed and manufactured by Tamura, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

TIC-L051-11 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

TIC-L051-11 Specifications

  • Part NumberTIC-L051-11
  • CategoryModular Connectors - Jacks With Magnetics
  • ManufacturerTamura
  • DescriptionCONN MAGJACK 1PORT 10 BASE-T
  • Package-
  • SeriesTIC
  • FeaturesBoard Lock
  • Operating Temperature-40°C ~ 85°C
  • Mounting TypeThrough Hole
  • Applications10 Base-T, AutoMDIX
  • TerminationSolder
  • Contact MaterialPhosphor Bronze
  • Contact FinishGold
  • Orientation90° Angle (Right)
  • Height Above Board0.531" (13.50mm)
  • Connector TypeRJ45
  • ShieldingShielded, EMI Finger
  • Number of Rows1
  • Number of Ports1
  • LED ColorGreen, Orange - Yellow
  • Tab DirectionUp
  • Number of Cores per Jack4

Application of TIC-L051-11

Modular Connectors - Jacks With Magnetics are used in a wide range of electronic devices that require high-quality connectivity and data transmission. In the field of smart phones, magnetic jacks, as an interface for charging and data transmission, provide users with a more convenient and reliable way to charge and connect, while supporting fast charging and high-speed data transmission, improving the user experience. In audio equipment, such as wireless headphones, speakers, etc., the magnetic jack realizes the seamless connection between devices, ensures the stable transmission of audio signals, and enhances the sound quality. In addition, in the fields of industrial automation, medical equipment, aerospace and other fields, modular link-magnetic jacks are also widely used in key equipment such as control systems, testing equipment, and life support systems because of their excellent connection performance and durability, to ensure the accuracy of data transmission and the stability of equipment operation.

TIC-L051-11 Datasheet

TIC-L051-11 Datasheet , TIC,Board Lock,-40°C ~ 85°C,Through Hole,10 Base-T, AutoMDIX,Solder,Phosphor Bronze,Gold,90° Angle (Right),0.531" (13.50mm),RJ45,Shielded, EMI Finger,1,1,Green, Orange - Yellow,Up,4

TIC-L051-11 Classification

Modular Connectors - Jacks With Magnetics

Modular Connectors - Jacks With Magnetics are a connection component with integrated magnetic interface technology designed for electronic devices that require frequent insertion and removal and require high connection stability. The product is composed of magnetic contact ends, metal pins, insulators and housings, and adopts precision mechanical structure and magnetic attraction principle to achieve fast, accurate and stable connection. The magnetic jack design effectively solves the problem of damage or poor contact caused by improper insertion and removal of traditional jacks, while reducing the wear during connection and prolonging the service life of the equipment. In addition, the modular design makes the connector easy to install, upgrade and maintain to meet the diverse electronic system design needs.

FAQ about Modular Connectors - Jacks With Magnetics

  • 1. What are Modular Connectors - Jacks With Magnetics?

    Modular Connectors - Jacks With Magnetics are modular connectors with integrated magnetic components, mainly used in high-speed data transmission scenarios such as Ethernet. Magnetic components (such as transformers and filters) are used for signal isolation, impedance matching and anti-electromagnetic interference (EMI), ensuring the stability and reliability of data transmission.

  • 2. How to choose the right Modular Connectors - Jacks With Magnetics?

    Factors to consider when choosing:

    Number of ports: single-port, multi-port, or stacked configurations.

    Speed ​​support: such as 1Gb/s, 10Gb/s, or higher.

    Mounting method: panel mount, onboard mount, or through-hole mount.

    Shielding performance: whether EMI/RFI shielding is required.

  • 3. What is PoE support? Why is it important?

    PoE (Power over Ethernet) allows data and power to be transmitted simultaneously over Ethernet cables, reducing wiring complexity. Modular Connectors - Jacks With Magnetics support PoE and are suitable for devices that require remote power supply (such as IP cameras and VoIP phones).
