0527461533

Molex 0527461533

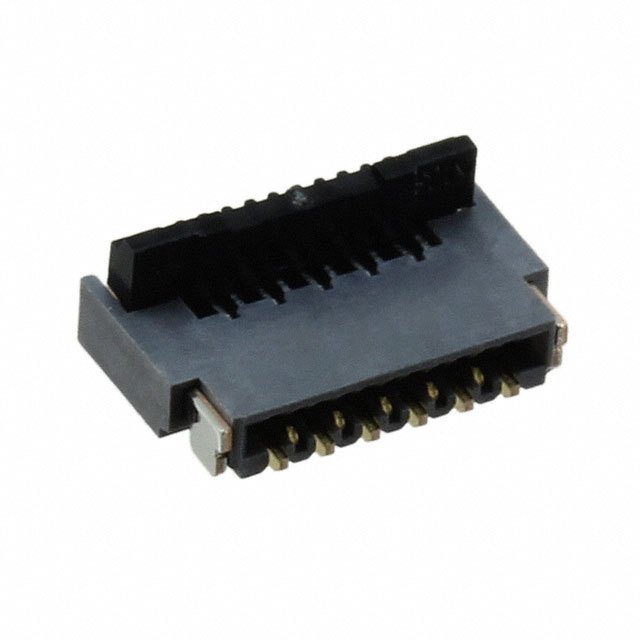

The picture is for reference only, please refer to the product specification

  • 0527461533
  • Molex
  • CONN FFC BOTTOM 15POS 0.50MM R/A
  • FFC, FPC (Flat Flexible) Connectors
  • 0527461533 Datasheet
  • -
  • -
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 4040
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is 0527461533

Molex Part Number 0527461533（FFC, FPC (Flat Flexible) Connectors）, developed and manufactured by Molex, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

0527461533 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

0527461533 Specifications

  • Part Number0527461533
  • CategoryFFC, FPC (Flat Flexible) Connectors
  • ManufacturerMolex
  • DescriptionCONN FFC BOTTOM 15POS 0.50MM R/A
  • Package-
  • SeriesEasy-On? 52746
  • FeaturesSolder Retention, Zero Insertion Force (ZIF)
  • Operating Temperature-40°C ~ 85°C
  • Mounting TypeSurface Mount, Right Angle
  • TerminationSolder
  • Contact MaterialPhosphor Bronze
  • Contact FinishTin Bismuth
  • Flat Flex TypeFFC, FPC
  • Connector/Contact TypeContacts, Bottom
  • Number of Positions15
  • Pitch0.020" (0.50mm)
  • FFC, FCB Thickness0.30mm
  • Height Above Board0.079" (2.00mm)
  • Locking FeatureSlide Lock
  • Cable End TypeStraight, Tapered
  • Housing MaterialPolyamide (PA), Nylon, Glass Filled
  • Voltage Rating50V
  • Material Flammability RatingUL94 V-0
  • Actuator MaterialPolyphenylene Sulfide (PPS), Glass Filled

Application of 0527461533

FFC, FPC (Flat Flexible) Connectors) play an important role in several high-tech industries and applications due to their unique physical properties and high reliability. They are commonly found in consumer electronics, such as smartphones and tablets, to connect screens, cameras and other internal components; In the field of automotive electronics, FFC/FPC connectors are used for line connection of dashboards, navigation systems and entertainment systems; In medical devices, they are used in portable or wearable devices that require highly accurate signal transmission; In addition, FFC/FPC is also widely used in industrial automation, aerospace, military equipment, test and measurement equipment and computer peripherals, etc. These applications have strict requirements for the size, weight and signal quality of connectors.

0527461533 Datasheet

0527461533 Datasheet , Easy-On? 52746,Solder Retention, Zero Insertion Force (ZIF),-40°C ~ 85°C,Surface Mount, Right Angle,Solder,Phosphor Bronze,Tin Bismuth,FFC, FPC,Contacts, Bottom,15,0.020" (0.50mm),0.30mm,0.079"

0527461533 Classification

FFC, FPC (Flat Flexible) Connectors

FFC, FPC (Flat Flexible) Connectors are high-density, lightweight electronic connection components designed specifically for precision electronic devices in confined spaces. This connector is composed of multiple layers of polyester film and embedded with copper foil conductive paths, which can achieve efficient transmission of electronic signals. FFC/FPC connectors adopt a flat ribbon structure, usually with connector interfaces at one or both ends, which can be easily connected to circuit boards or other electronic components. Its design principle is based on flexible circuit technology, which enables FFC/FPC to maintain signal stability and integrity in complex environments, while possessing good anti vibration and anti impact performance.

FAQ about FFC, FPC (Flat Flexible) Connectors

  • 1. What is FFC?

    FFC (Flexible Flat Cable) is a flexible flat cable, usually composed of flat and soft conductors, such as tinned pure copper wire, made by high-temperature bonding of very thin and flexible adhesive film or paper film ‌‌1. FFC has the characteristics of flexibility, lightness, bendability, and anti-twisting. It is widely used in electronic devices as a bridge to connect various components, such as connecting displays and motherboards, touch screens and displays, battery components and control circuit boards. Due to its flexibility and bendability, FFC can achieve more flexible design, optimize the internal space of the device, and has the advantages of small size, light weight, and low cost.

  • 2. What is the rated voltage of FFC?

    The rated voltage of FFC is 300V.
    FFC cable, also known as Flexible Flat Cable, is a flexible flat cable that is widely used in internal connections of electronic devices. Its main specifications and special features include:
    Operating temperature: 80°C
    Conductor: 32-16AWG (0.03-1.31mm²) tinned or bare copper strands
    Insulation: PVC
    Pitch: Common pitches are 0.5mm, 0.8mm, 1.0mm, 1.25mm, 1.27mm, 1.5mm, 2.0mm and 2.54mm
    Acid and alkali resistance, oil resistance, heat resistance, moisture resistance, mildew resistance and other characteristics
    FFC cables are widely used for data transmission between mobile parts and motherboards, between PCB boards and in miniaturized electrical equipment due to their small size, light weight and high flexibility.

  • 3. What is the use of FFC cable?

    FFC cable (Flexible Flat Cable) is mainly used to connect mobile parts with motherboards, PCB boards with PCB boards, and data transmission in miniaturized electrical equipment.
    FFC cable has the following main features:
    High flexibility: The number and spacing of wires can be arbitrarily selected, making wiring more convenient, greatly reducing the volume of electronic products, reducing production costs, and improving production efficiency.
    Environmental resistance: It has anti-bending and anti-tensile functions, good flexibility, cold and high temperature resistance.
    Wide application: It is suitable for use as a data transmission cable between mobile parts and motherboards, between PCB boards and PCB boards, and in miniaturized electrical equipment.
