Honeywell Sensing and Productivity Solutions T&M 060-0761-29TJG

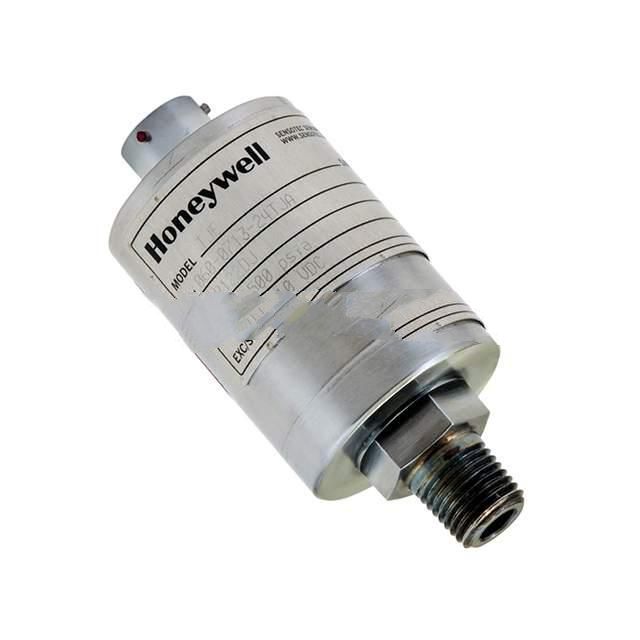

The picture is for reference only, please refer to the product specification
- 060-0761-29TJG
- Honeywell Sensing and Productivity Solutions T&M
- PRESSURE TRANSDUCER 1000 PSIG
- Pressure Sensors, Transducers
- 060-0761-29TJG Datasheet
- Cylinder
- Cylinder
-
Lead free / RoHS Compliant - 3644
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is 060-0761-29TJG
Honeywell Sensing and Productivity Solutions T&M Part Number 060-0761-29TJG（Pressure Sensors, Transducers）, developed and manufactured by Honeywell Sensing and Productivity Solutions T&M, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
060-0761-29TJG is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
060-0761-29TJG Specifications
- Part Number060-0761-29TJG
- CategoryPressure Sensors, Transducers
- ManufacturerHoneywell Sensing and Productivity Solutions T&M
- DescriptionPRESSURE TRANSDUCER 1000 PSIG
- PackageCylinder
- SeriesTJE
- Operating Temperature-73°C ~ 163°C
- Package / CaseCylinder
- Accuracy±0.1%
- Pressure TypeVented Gauge
- Operating Pressure1000 PSI (6894.76 kPa)
- Port StyleThreaded
- Port SizeMale - 1/4" (6.35mm) NPT
Application of 060-0761-29TJG
060-0761-29TJG Datasheet
060-0761-29TJG Datasheet , Cylinder,TJE,-73°C ~ 163°C,Cylinder,±0.1%,Vented Gauge,1000 PSI (6894.76 kPa),Threaded,Male - 1/4" (6.35mm) NPT
060-0761-29TJG Classification
Pressure Sensors, Transducers
FAQ about Pressure Sensors, Transducers
-
1. Is a transducer a sensor?
A transducer is not a sensor. Although both sensors and transducers are devices for measuring physical quantities, they have obvious differences in definition and application.
Definition and function
Sensor: A sensor is a device that converts non-electrical signals into electrical signals. It is usually used to convert physical quantities (such as temperature, pressure, humidity, light intensity, etc.) into electrical signals. Sensors are widely used in industry, medical care, environmental monitoring and other fields.
Transducer: A transducer is a device that converts one form of energy into another form. It can convert any form of physical quantity (such as pressure, force, torque, displacement, sound, light, heat, etc.) into electrical signals or other forms of energy output. Transducers are widely used in the control, measurement and detection of various industrial processes.
-
2. Application field
Sensor: Mainly used for industrial process control and monitoring, equipment control and monitoring in the fields of automobiles, machinery, electronics, medical equipment, aerospace, etc., as well as environmental monitoring and weather forecasting.
Transducers: Mainly used in exploration and production processes in the fields of ocean, petroleum, aviation, energy, etc., engineering measurement and control fields (such as monitoring and control of structures such as buildings, bridges and tunnels), scientific research fields (such as physics, chemistry, biology, etc.), and music and art fields (such as electronic musical instruments and sound amplifiers). -
3. What sensors can be used to measure pressure?
Sensors that can be used to measure pressure mainly include pressure sensors. Pressure sensors can sense pressure signals and convert them into usable electrical signals for output. This type of sensor is usually composed of a pressure sensitive element and a signal processing unit, and is widely used in various industrial automatic control environments, such as water conservancy and hydropower, railway transportation, intelligent buildings, production automatic control, aerospace, military industry, petrochemicals, oil wells, electricity, ships, machine tools, pipelines and other fields.
Application fields of pressure sensors
Industrial field: In industrial production, pressure sensors are used to monitor and control the operating status of various equipment, such as boilers, pipelines, reactors, etc., to ensure production efficiency and product quality, and avoid equipment damage and production accidents.
Medical field: Pressure sensors can accurately measure physiological parameters such as blood pressure and heart rate of patients, and are used in equipment such as ventilators and infusion pumps to ensure patient safety and comfort.
Environmental protection field: Pressure sensors are used in sewage treatment plants, meteorological monitoring, etc. to monitor pipeline pressure conditions, avoid environmental pollution and waste of resources, and provide accurate data for weather forecasts.
Aerospace field: Pressure sensors monitor the cylinder pressure, engine intake pressure and atmospheric pressure of aircraft and spacecraft to ensure the safe and stable operation of aircraft and spacecraft.
What are the four types of pressure sensors?
There are four main types of pressure sensors:
Strain pressure sensor: Strain pressure sensors measure pressure mainly by measuring the strain of elastic elements. Depending on the material, strain elements are divided into metals and semiconductors. When conductors and semiconductor materials are mechanically deformed, their resistance values change.
Piezo-resistive pressure sensor: Piezoresistive pressure sensors are made of piezoresistive effect of single-crystal silicon materials and integrated circuits. When single-crystal silicon materials are subjected to force, the resistivity changes, and an electrical signal proportional to the force change is output through the measuring circuit.
Capacitive pressure sensor: Capacitive pressure sensors use changes in capacitance to measure pressure. When the electrode senses pressure deformation, the capacitance changes, forming an electrical signal output.
Piezoelectric pressure sensor: Piezoelectric pressure sensors use the piezoelectric effect to convert pressure into electrical quantity for measurement. This sensor does not require an external power supply, and directly reflects the pressure by measuring the amount of charge generated, with extremely high sensitivity and fast response time.
