Molex 0734150780

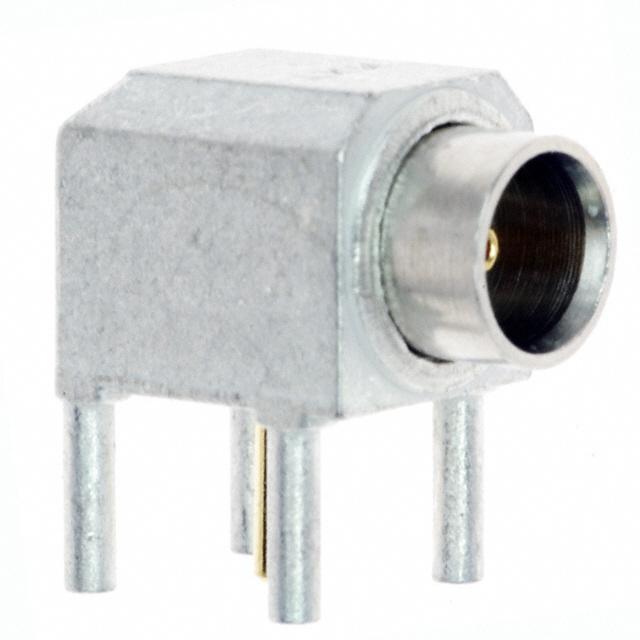

The picture is for reference only, please refer to the product specification
- 0734150780
- Molex
- CONN MCX RCPT R/A 75 OHM PCB
- Coaxial Connectors (RF)
- 0734150780 Datasheet
- -
- -
-
Lead free / RoHS Compliant - 4758
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is 0734150780
Molex Part Number 0734150780（Coaxial Connectors (RF)）, developed and manufactured by Molex, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
0734150780 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
0734150780 Specifications
- Part Number0734150780
- CategoryCoaxial Connectors (RF)
- ManufacturerMolex
- DescriptionCONN MCX RCPT R/A 75 OHM PCB
- Package-
- Series73415
- Mounting TypeThrough Hole, Right Angle
- Frequency - Max6GHz
- Impedance75 Ohm
- Connector TypeReceptacle, Female Socket
- Contact TerminationSolder
- Connector StyleMCX
- Fastening TypeSnap-On
- Housing ColorSilver
- Shield TerminationSolder
- Number of Ports1
Application of 0734150780
0734150780 Datasheet
0734150780 Datasheet , 73415,Through Hole, Right Angle,6GHz,75 Ohm,Receptacle, Female Socket,Solder,MCX,Snap-On,Silver,Solder,1
0734150780 Classification
Coaxial Connectors (RF)
FAQ about Coaxial Connectors (RF)
-
1. Are coaxial connectors the same as RCA?
There are significant differences in appearance and purpose between coaxial connectors and RCA connectors.
Coaxial connector is a common connector used in electronic equipment and communication systems. It is mainly used to connect coaxial cables to equipment or other circuits. It has good shielding performance and low loss characteristics, and is widely used in wireless communications, television, radio, radar and other fields.
The RCA connector is an audio interface, usually used for the transmission of analog signals. There are two types of RCA interfaces: one is the RCA coaxial interface, which looks the same as the analog RCA interface, and the other is the BNC coaxial interface, which looks similar to the common signal interface on a TV and has a locking design. The impedance of RCA coaxial cable is 75 ohms. Although the appearance is the same as the analog RCA interface, mixed use will cause unstable sound transmission and affect the sound quality.
Coaxial connectors and RCA connectors also differ in application scenarios and transmission characteristics.
Coaxial cables are suitable for high-frequency signal transmission, such as television, Internet, and wireless communications, while RCA cables are suitable for low-frequency signal transmission, such as audio and standard-definition video3. In addition, the coaxial transmission impedance is constant and the transmission bandwidth is high, which can ensure the quality of the audio. However, the impedance of the RCA coaxial cable is also 75 ohms, and mixed use will lead to a decrease in sound quality.
-
2. What is a coaxial plug used for?
The main uses of coaxial plugs include the following aspects:
Signal transmission: Coaxial plugs are used to connect both ends of coaxial cables to ensure that electrical signals can be transmitted stably between cables. It provides a stable and reliable connection, ensuring that signals can be transmitted efficiently from one device to another.
Shielding protection: When connecting to a coaxial cable, the coaxial plug can provide good shielding protection to prevent interference from external interference signals. This can reduce signal attenuation and distortion and improve the quality and reliability of signal transmission.
Connecting devices: Coaxial plugs can connect different types of devices such as televisions, modems, antennas, etc. It provides a standardized interface that enables various devices to connect and communicate easily.
Maintenance and replacement: Coaxial plugs are easy to install and replace, making maintenance and replacement of coaxial cables simple and convenient. When a coaxial cable needs to be replaced or repaired, only the connector needs to be replaced rather than the entire cable.
Application in avionics equipment: Coaxial plugs play an important role in avionics equipment and are used to connect various sensors, controllers, displays, computers and other equipment to achieve signal transmission and electrical connection between equipment. It can provide stable signal transmission and good anti-interference performance to ensure the normal operation of the equipment.
Application in communication systems: In aviation communication systems, coaxial plugs are used to connect antennas and transceivers to realize the transmission and reception of wireless signals. It can provide high-frequency transmission capabilities and good signal quality to ensure stable and reliable communication.
-
3. What is a coaxial F-type connector?
Coaxial RF connector, F-type connector
The coaxial F-type connector is a radio frequency coaxial connector, which is widely used in the fields of cable TV, satellite TV, cable TV modem and TV connection. It is characterized by threaded connection, convenient insertion, and stable performance. It is suitable for occasions with impedance matching requirements and non-matching occasions.
Definition and historical background
The F-type connector was first invented by Eric Winston in the early 1950s and became a common connection connector for VHF television antennas in the United States in the 1970s. Its characteristic impedance is 75 ohms, and the highest frequency can generally support 1GHz or 2.4GHz.
