JST Sales America Inc. 18FMN-BMTTR-A-TB(LF)(SN)

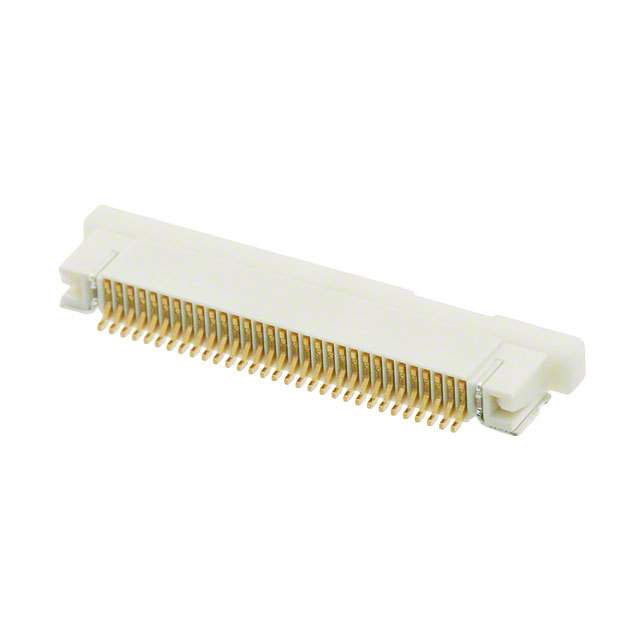

The picture is for reference only, please refer to the product specification
- 18FMN-BMTTR-A-TB(LF)(SN)
- JST Sales America Inc.
- CONN FFC VERT 18POS 1.00MM SMD
- FFC, FPC (Flat Flexible) Connectors
- 18FMN-BMTTR-A-TB(LF)(SN) Datasheet
- -
- -
-
Lead free / RoHS Compliant - 20063
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is 18FMN-BMTTR-A-TB(LF)(SN)
JST Sales America Inc. Part Number 18FMN-BMTTR-A-TB(LF)(SN)（FFC, FPC (Flat Flexible) Connectors）, developed and manufactured by JST Sales America Inc., distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
18FMN-BMTTR-A-TB(LF)(SN) is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
18FMN-BMTTR-A-TB(LF)(SN) Specifications
- Part Number18FMN-BMTTR-A-TB(LF)(SN)
- CategoryFFC, FPC (Flat Flexible) Connectors
- ManufacturerJST Sales America Inc.
- DescriptionCONN FFC VERT 18POS 1.00MM SMD
- Package-
- SeriesFMN
- FeaturesLow Insertion Force (LIF)
- Operating Temperature-25°C ~ 85°C
- Mounting TypeSurface Mount
- TerminationSolder
- Contact MaterialPhosphor Bronze
- Contact FinishTin
- Flat Flex TypeFFC
- Connector/Contact TypeContacts, Vertical, 1 Sided
- Number of Positions18
- Pitch0.039" (1.00mm)
- FFC, FCB Thickness0.30mm
- Height Above Board0.201" (5.10mm)
- Cable End TypeStraight
- Housing MaterialPolyamide (PA6T), Nylon 6T
- Voltage Rating50V
- Material Flammability RatingUL94 V-0
Application of 18FMN-BMTTR-A-TB(LF)(SN)
18FMN-BMTTR-A-TB(LF)(SN) Datasheet
18FMN-BMTTR-A-TB(LF)(SN) Datasheet , FMN,Low Insertion Force (LIF),-25°C ~ 85°C,Surface Mount,Solder,Phosphor Bronze,Tin,FFC,Contacts, Vertical, 1 Sided,18,0.039" (1.00mm),0.30mm,0.201" (5.10mm),Straight,Polyamide (PA6T), Nylon 6T,50V,UL94 V-0
18FMN-BMTTR-A-TB(LF)(SN) Classification
FFC, FPC (Flat Flexible) Connectors
FAQ about FFC, FPC (Flat Flexible) Connectors
-
1. What is the difference between FFC and FPC connectors?
The main differences between FFC connectors and FPC connectors are in design, application, and performance.
Design Differences
FPC connectors: usually have a multi-layer structure and complex circuit design, are made of conductive materials, and are connected to circuit boards by welding, crimping, etc. FPC connectors are suitable for circuit boards of various shapes and sizes, have extremely high flexibility, and can adapt to different bending and twisting requirements.
FFC connectors: The structure is relatively simple, mainly composed of insulating materials and conductive materials, and are connected to cables by crimping or plugging. FFC connectors are usually used to connect components such as display screens, touch screens, and keyboards. Their flat design makes the cable more stable and reliable during the connection process. -
2. What is an FPC connector?
FPC connector (Flexible Printed Circuit Connector) is an electronic component designed for connecting flexible printed circuit boards (FPC). It has the characteristics of compact structure, light weight, and strong flexibility, and is widely used in electronic products with high space and weight requirements such as mobile phones, laptops, tablets, wearable devices, and camera modules.
The main features of FPC connectors include:
Miniaturization and high-density integration: can save space and simplify wiring procedures, thereby reducing labor costs.
Excellent flexibility: allows flexible twists and turns to adapt to various complex connection requirements.
Lightweight and low-cost: small size, light weight, easy installation, and strong durability. -
3. What is FFC?
FFC (Flexible Flat Cable) is a flexible flat cable, usually composed of flat and soft conductors, such as tinned pure copper wire, made by high-temperature bonding of very thin and flexible adhesive film or paper film 1. FFC has the characteristics of flexibility, lightness, bendability, and anti-twisting. It is widely used in electronic devices as a bridge to connect various components, such as connecting displays and motherboards, touch screens and displays, battery components and control circuit boards. Due to its flexibility and bendability, FFC can achieve more flexible design, optimize the internal space of the device, and has the advantages of small size, light weight, and low cost.
