1N5359BRL

ON Semiconductor 1N5359BRL

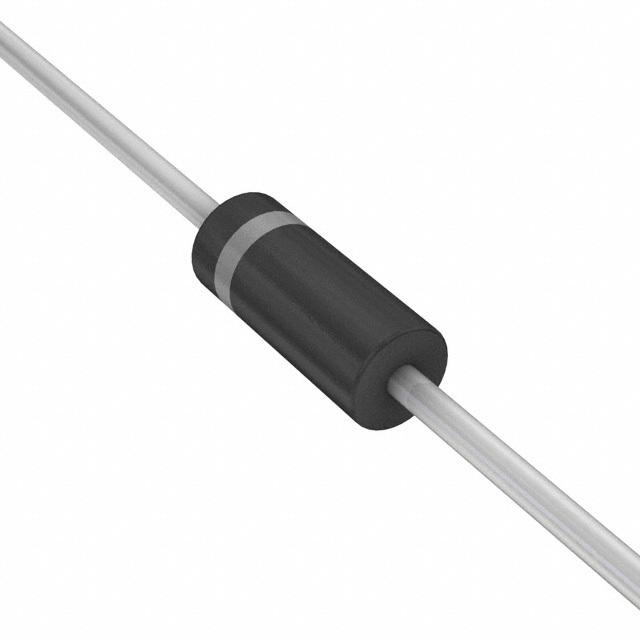

The picture is for reference only, please refer to the product specification

  • 1N5359BRL
  • ON Semiconductor
  • DIODE ZENER 24V 5W AXIAL
  • Diodes - Zener - Single
  • 1N5359BRL Datasheet
  • T-18, Axial
  • Tape & Reel (TR)
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 2104
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is 1N5359BRL

ON Semiconductor Part Number 1N5359BRL（Diodes - Zener - Single）, developed and manufactured by ON Semiconductor, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

1N5359BRL is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

1N5359BRL Specifications

  • Part Number1N5359BRL
  • CategoryDiodes - Zener - Single
  • ManufacturerON Semiconductor
  • DescriptionDIODE ZENER 24V 5W AXIAL
  • PackageTape & Reel (TR)
  • Series-
  • Operating Temperature-65°C ~ 200°C
  • Mounting TypeThrough Hole
  • Package / CaseT-18, Axial
  • Supplier Device PackageAxial
  • Tolerance±5%
  • Power - Max5 W
  • Voltage - Forward (Vf) (Max) @ If1.2 V @ 1 A
  • Current - Reverse Leakage @ Vr500 nA @ 18.2 V
  • Voltage - Zener (Nom) (Vz)24 V
  • Impedance (Max) (Zzt)3.5 Ohms

Application of 1N5359BRL

Zener-Single has a wide range of applications in several electronic engineering fields. In power supply design, it is often used to build a simple voltage regulator circuit to provide a stable power supply voltage for sensitive components such as microprocessors and sensors. In communication systems, especially where the signal level needs to be precisely controlled, such as digital logic circuits, RF front ends, etc., Zener-single can effectively prevent signal distortion caused by voltage fluctuations. In addition, the application of Zener diodes as overvoltage protection components in automotive electronics, industrial control and consumer electronics products also reflects the importance of Zener-single in protecting circuits from unexpected voltage shocks.

1N5359BRL Datasheet

1N5359BRL Datasheet , Tape & Reel (TR),-65°C ~ 200°C,Through Hole,T-18, Axial,Axial,±5%,5 W,1.2 V @ 1 A,500 nA @ 18.2 V,24 V,3.5 Ohms

1N5359BRL Classification

Diodes - Zener - Single

Zener-single refers to a circuit design that focuses on stabilizing the voltage at a particular node in the circuit by carefully configuring a Zener diode as a voltage reference or protection element, and the design focuses on dealing with voltage fluctuations in a Single direction (forward or reverse, depending on the application). Zener diode with its unique reverse breakdown characteristic, after reaching a specific reverse voltage, the current increases significantly while the voltage remains almost unchanged, this characteristic is cleverly used in Zener-single design to achieve voltage stability or overload protection of the circuit.

FAQ about Diodes - Zener - Single

  • 1. What are the disadvantages of Zener diodes?

    Disadvantages include relatively high power consumption, sensitivity to temperature, and the need for proper heat dissipation.

  • 2. What happens if a Zener diode is connected in reverse?

    When a Zener diode is properly connected in reverse and a sufficient reverse voltage is applied to exceed its Zener voltage, it will begin to conduct and remain at a relatively constant voltage level.

  • 3. What happens when a Zener diode fails?

    If it is overheated or subjected to excessive current, it may cause permanent damage, which will appear as an open or short circuit state.
