43-01027

Conec 43-01027

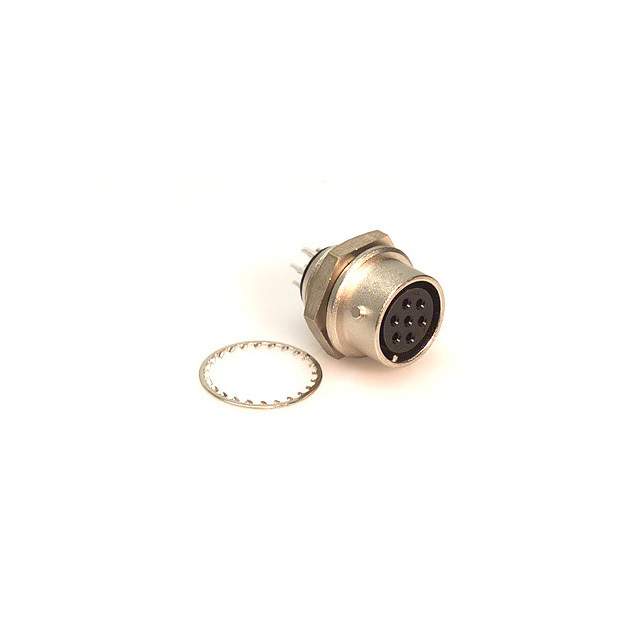

The picture is for reference only, please refer to the product specification

  • 43-01027
  • Conec
  • CONN RCPT 5POS JAM NUT SKT PCB
  • Circular Connectors
  • 43-01027 Datasheet
  • -
  • -
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 1645
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is 43-01027

Conec Part Number 43-01027（Circular Connectors）, developed and manufactured by Conec, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

43-01027 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

43-01027 Specifications

  • Part Number43-01027
  • CategoryCircular Connectors
  • ManufacturerConec
  • DescriptionCONN RCPT 5POS JAM NUT SKT PCB
  • Package-
  • Series43
  • Mounting TypePanel Mount, Bulkhead; Through Hole
  • TerminationSolder
  • Ingress ProtectionIP67 - Dust Tight, Waterproof
  • Current Rating4A
  • Voltage - Rated60V
  • Contact FinishGold
  • OrientationA
  • Number of Positions5
  • Connector TypeReceptacle, Female Sockets
  • Shell Size - InsertM12-5
  • Fastening TypeThreaded
  • Shell Material, FinishCopper Zinc Alloy, Nickel Plated

Application of 43-01027

Circular Connectors play an important role in several areas. In the aerospace field, circular connectors are an indispensable part of the electrical systems of aircraft, satellites and other aircraft, and are used to achieve high reliability connections between various system modules. In the field of industrial automation, with the rapid development of intelligent manufacturing, circular connectors are widely used in robots, automation equipment, control systems and other occasions to provide stable electrical connection solutions for industrial automation production. In addition, in the fields of Marine engineering, shipbuilding, new energy vehicles, medical equipment and other fields, circular connectors are also favored for their waterproof, dustproof, corrosion resistance and other characteristics.

43-01027 Datasheet

43-01027 Datasheet , 43,Panel Mount, Bulkhead; Through Hole,Solder,IP67 - Dust Tight, Waterproof,4A,60V,Gold,A,5,Receptacle, Female Sockets,M12-5,Threaded,Copper Zinc Alloy, Nickel Plated

43-01027 Classification

Circular Connectors

Circular Connectors are electrical connections with a circular interface shape. It is usually composed of two parts, plug and socket, through rotation or push and pull to achieve docking, so as to establish the transmission channel of electrical signals. Circular connectors are often designed with a focus on tightness, durability and multi-pin configurations to meet electrical connection needs in a variety of complex environments. Its shell is mostly made of metal or high-performance plastic materials, and the interior contains key components such as precision contact terminals, insulators and locking mechanisms to ensure stable and reliable connection.

FAQ about Circular Connectors

  • 1. What is a circular connector

    A circular connector is a cylindrical electronic connector with a circular mating surface. It belongs to the fifth category of the interconnection classification and is mainly used for interconnection between devices. The design of circular connectors includes many types, such as low-frequency circular connectors, RF coaxial connectors and audio connectors, etc., with a wide operating temperature range from -55℃ to +150℃.

  • 2. How to wire a circular connector

    1. Insert the wire into the pin hole inside the connector to ensure that the metal conductor is in full contact with the pin.
    2. Use wire twisters to tighten the screws or clips on the connector to ensure good and firm contact between the connector and the wire.
    3. Check if there is any exposed metal surface on the connector. If necessary, re-strip it.
    4. Wrap the connected wires with electrical tape to prevent loosening or short circuit problems.

  • 3. How to remove a circular electrical connector

    1. Loosen the locking ring. To remove a circular electrical connector, you first need to loosen the locking ring;
    2. Remove the sealant. There is a sealant on the connector, which needs to be removed first.
    3. Remove the terminal. First, loosen the terminal fastening or open the slot, and then carefully separate the plug and the socket;

  • 4. How many types of connectors are there?

    1. Circular connector,
    2. RF connector,
    3. Rectangular connector:
    4. SMB connector:
    5. BNC connector;
