TE Connectivity AMP Connectors 5-520314-7

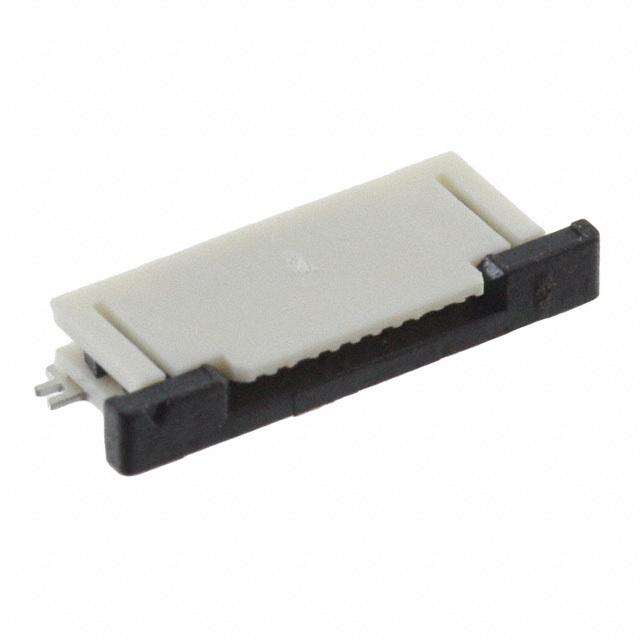

The picture is for reference only, please refer to the product specification
- 5-520314-7
- TE Connectivity AMP Connectors
- CONN FFC FPC TOP 7POS 2.54MM R/A
- FFC, FPC (Flat Flexible) Connectors
- 5-520314-7 Datasheet
- -
- -
-
Lead free / RoHS Compliant - 14828
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is 5-520314-7
TE Connectivity AMP Connectors Part Number 5-520314-7（FFC, FPC (Flat Flexible) Connectors）, developed and manufactured by TE Connectivity AMP Connectors, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
5-520314-7 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
5-520314-7 Specifications
- Part Number5-520314-7
- CategoryFFC, FPC (Flat Flexible) Connectors
- ManufacturerTE Connectivity AMP Connectors
- DescriptionCONN FFC FPC TOP 7POS 2.54MM R/A
- Package-
- SeriesTriomate
- Operating Temperature-55°C ~ 105°C
- Mounting TypeThrough Hole, Right Angle
- TerminationKinked Pin
- Contact MaterialPhosphor Bronze
- Contact FinishTin
- Flat Flex TypeFFC, FPC
- Connector/Contact TypeContacts, Top
- Number of Positions7
- Pitch0.100" (2.54mm)
- FFC, FCB Thickness0.13mm ~ 0.38mm
- Height Above Board0.190" (4.83mm)
- Cable End TypeStraight
- Housing MaterialPolyester Thermoplastic, Glass Filled
- Voltage Rating250V
- Material Flammability RatingUL94 V-0
Application of 5-520314-7
5-520314-7 Datasheet
5-520314-7 Datasheet , Triomate,-55°C ~ 105°C,Through Hole, Right Angle,Kinked Pin,Phosphor Bronze,Tin,FFC, FPC,Contacts, Top,7,0.100" (2.54mm),0.13mm ~ 0.38mm,0.190" (4.83mm),Straight,Polyester Thermoplastic, Glass
5-520314-7 Classification
FFC, FPC (Flat Flexible) Connectors
FAQ about FFC, FPC (Flat Flexible) Connectors
-
1. What is the difference between FFC and FPC connectors?
The main differences between FFC connectors and FPC connectors are in design, application, and performance.
Design Differences
FPC connectors: usually have a multi-layer structure and complex circuit design, are made of conductive materials, and are connected to circuit boards by welding, crimping, etc. FPC connectors are suitable for circuit boards of various shapes and sizes, have extremely high flexibility, and can adapt to different bending and twisting requirements.
FFC connectors: The structure is relatively simple, mainly composed of insulating materials and conductive materials, and are connected to cables by crimping or plugging. FFC connectors are usually used to connect components such as display screens, touch screens, and keyboards. Their flat design makes the cable more stable and reliable during the connection process. -
2. What is the rated voltage of FFC?
The rated voltage of FFC is 300V.
FFC cable, also known as Flexible Flat Cable, is a flexible flat cable that is widely used in internal connections of electronic devices. Its main specifications and special features include:
Operating temperature: 80°C
Conductor: 32-16AWG (0.03-1.31mm²) tinned or bare copper strands
Insulation: PVC
Pitch: Common pitches are 0.5mm, 0.8mm, 1.0mm, 1.25mm, 1.27mm, 1.5mm, 2.0mm and 2.54mm
Acid and alkali resistance, oil resistance, heat resistance, moisture resistance, mildew resistance and other characteristics
FFC cables are widely used for data transmission between mobile parts and motherboards, between PCB boards and in miniaturized electrical equipment due to their small size, light weight and high flexibility.
-
3. What is the use of FFC cable?
FFC cable (Flexible Flat Cable) is mainly used to connect mobile parts with motherboards, PCB boards with PCB boards, and data transmission in miniaturized electrical equipment.
FFC cable has the following main features:
High flexibility: The number and spacing of wires can be arbitrarily selected, making wiring more convenient, greatly reducing the volume of electronic products, reducing production costs, and improving production efficiency.
Environmental resistance: It has anti-bending and anti-tensile functions, good flexibility, cold and high temperature resistance.
Wide application: It is suitable for use as a data transmission cable between mobile parts and motherboards, between PCB boards and PCB boards, and in miniaturized electrical equipment.
