Nexperia USA Inc. 74HC4020BQ-Q100115

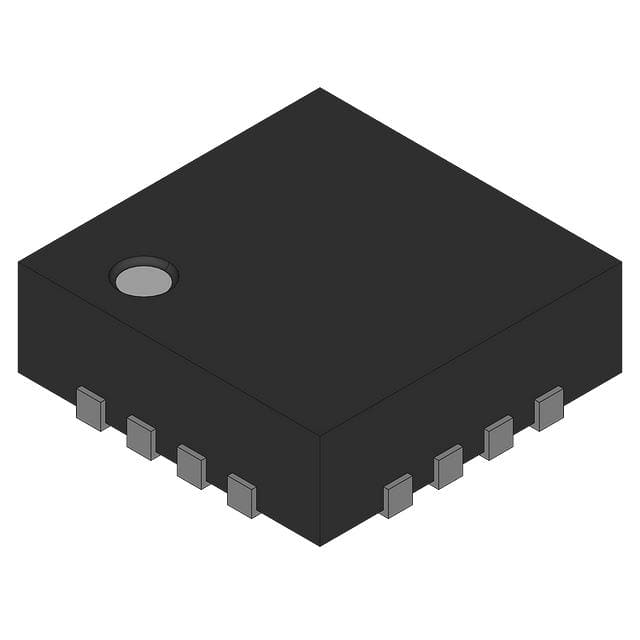

The picture is for reference only, please refer to the product specification
- 74HC4020BQ-Q100115
- Nexperia USA Inc.
- BINARY COUNTER, HC/UH SERIES
- Logic - Counters, Dividers
- 74HC4020BQ-Q100115 Datasheet
- 16-VFQFN Exposed Pad
- Bulk
-
Lead free / RoHS Compliant - 2916
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is 74HC4020BQ-Q100115
Nexperia USA Inc. Part Number 74HC4020BQ-Q100115（Logic - Counters, Dividers）, developed and manufactured by Nexperia USA Inc., distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
74HC4020BQ-Q100115 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
74HC4020BQ-Q100115 Specifications
- Part Number74HC4020BQ-Q100115
- CategoryLogic - Counters, Dividers
- ManufacturerNexperia USA Inc.
- DescriptionBINARY COUNTER, HC/UH SERIES
- PackageBulk
- SeriesAutomotive, AEC-Q100, 74HC
- Voltage - Supply2 V ~ 6 V
- Operating Temperature-40°C ~ 125°C
- Mounting TypeSurface Mount
- Package / Case16-VFQFN Exposed Pad
- Supplier Device Package16-DHVQFN (2.5x3.5)
- ResetAsynchronous
- Number of Elements1
- Trigger TypeNegative Edge
- Logic TypeBinary Counter
- Number of Bits per Element14
- Direction-
- Count Rate109 MHz
- Timing-
