TE Connectivity AMP Connectors 8060-1G5

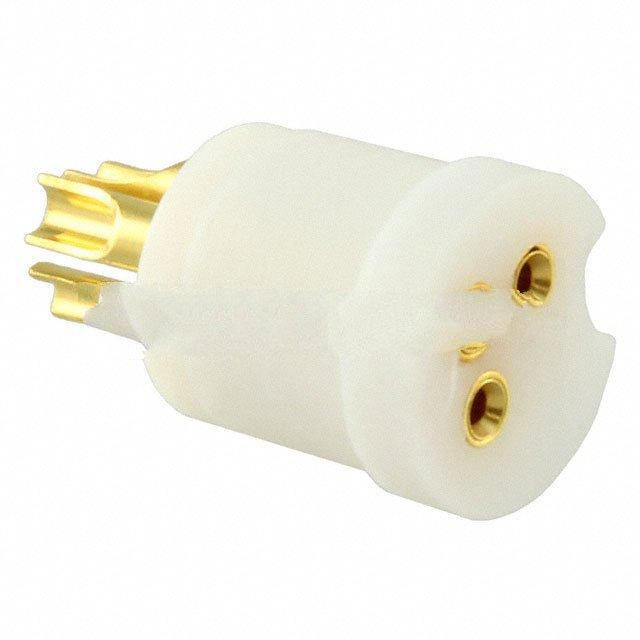

The picture is for reference only, please refer to the product specification
- 8060-1G5
- TE Connectivity AMP Connectors
- CONN TRANSIST TO-5 3POS GOLD
- Sockets for ICs, Transistors
- 8060-1G5 Datasheet
- -
- -
-
Lead free / RoHS Compliant - 1900
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is 8060-1G5
TE Connectivity AMP Connectors Part Number 8060-1G5（Sockets for ICs, Transistors）, developed and manufactured by TE Connectivity AMP Connectors, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
8060-1G5 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
8060-1G5 Specifications
- Part Number8060-1G5
- CategorySockets for ICs, Transistors
- ManufacturerTE Connectivity AMP Connectors
- DescriptionCONN TRANSIST TO-5 3POS GOLD
- Package-
- Series8060
- TypeTransistor, TO-5
- FeaturesClosed Frame
- Operating Temperature-55°C ~ 125°C
- Mounting TypeThrough Hole
- TerminationSolder
- Housing MaterialPolytetrafluoroethylene (PTFE)
- Contact Finish - MatingGold
- Contact Finish - PostGold
- Number of Positions or Pins (Grid)3 (Round)
- Contact Material - MatingBeryllium Copper
- Contact Material - PostBeryllium Copper
Application of 8060-1G5
8060-1G5 Datasheet
8060-1G5 Datasheet , 8060,Transistor, TO-5,Closed Frame,-55°C ~ 125°C,Through Hole,Solder,Polytetrafluoroethylene (PTFE),Gold,Gold,3 (Round),Beryllium Copper,Beryllium Copper
8060-1G5 Classification
Sockets for ICs, Transistors
FAQ about Sockets for ICs, Transistors
-
1. Does IC contain transistors?
IC (integrated circuit) does contain transistors. An integrated circuit is an electronic component that combines several microelectronic components such as transistors, diodes, resistors, capacitors, etc. on a tiny semiconductor chip. These components are usually manufactured on silicon wafers through semiconductor processes and can perform complex functions.
The role of transistors in ICs
Transistors play a key role in ICs. They are one of the basic building blocks of ICs. Transistors can amplify current or voltage signals and are the core components for realizing the functions of electronic circuits. By integrating a large number of transistors, resistors, capacitors and other components together, complex electronic circuits can be built to realize various electronic functions. -
2. Which IC package can be inserted into the socket?
DIP package (Dual Inline-pin Package) is an IC package that can be inserted into the socket. DIP package adopts dual inline form, and its number of pins generally does not exceed 100, which is suitable for small and medium-scale integrated circuits. This packaged IC has two rows of pins and needs to be inserted into a chip socket with a DIP structure, or it can be directly inserted into a circuit board with the same number of solder holes and geometric arrangement for soldering.
What is the use of transistors?
Transistors generally refer to all single components based on semiconductor materials. Transistors have multiple functions such as detection, rectification, amplification, switching, voltage regulation, signal modulation, etc. Transistors can be used for a variety of digital and analog functions.
On December 16, 1947, William Shockley, John Bardeen and Walter Brattain successfully created the first transistor at Bell Labs.
Transistors are one of the most critical components of modern electrical appliances. The reason why transistors can be used on a large scale is that they can be mass-produced at a very low unit cost.
-
3. What is the main function of transistors?
A transistor is an electronic device whose main function is to amplify and control current: the transistor is an important milestone in the development of electronic technology and is widely used in various electronic devices and circuits.
The basic function of a transistor is to amplify current. The three regions in a transistor are the collector, emitter and base. The voltage change between the base and the emitter can control the current between the collector and the emitter, thereby amplifying the current. When the current between the base and the emitter is small, the current between the collector and the emitter increases many times, which is the amplification effect of the transistor.
Transistors can also be used as electronic switches. When the current between the base and the emitter is small, the current between the collector and the emitter is basically zero, and the transistor is in the off state. When the current between the base and the emitter increases to a certain extent, the current between the collector and the emitter increases sharply, and the transistor is in the on state. This switching characteristic can be widely used in digital circuits to realize the function of logic gates.
We are a professional PCB manufacturer who offers comprehensive PCB manufacturing services including: professional Ceramic PCB HDI PCB Heavy Copper PCB High-TG PCB High Speed PCB High Frequency PCB Metal Core PCB PCB fabrication and PCB assembly, providing fast turnaround prototypes for high-end products.
• Prompt Responsiveness
• Guaranteed Quality
• Global Access
• Competitive Market Price
• One-Stop support services of supply chain
Jinftry, Your most trustworthy component supplier, welcome to send us the inquiry, thank you!
Do you have any questions about 8060-1G5 ?
Feel free to contact us:
8060-1G5 Related Products

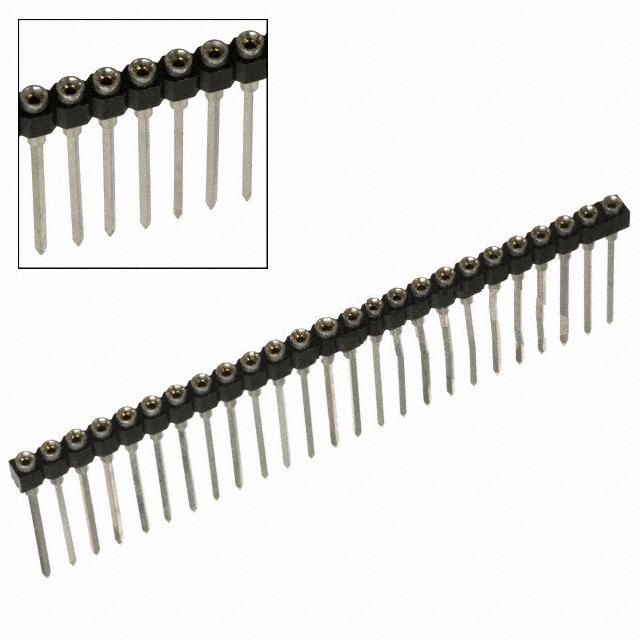

CONN SOCKET SIP 64POS GOLD
