Qualtek 865-03/004

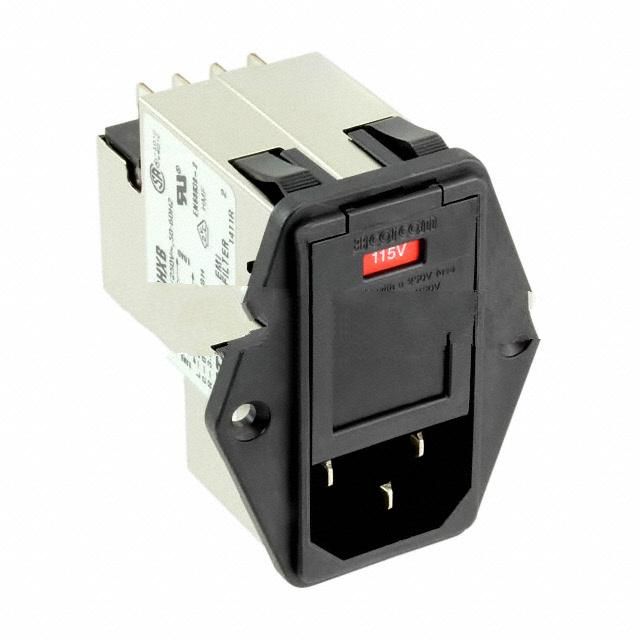

The picture is for reference only, please refer to the product specification
- 865-03/004
- Qualtek
- PWR ENT MOD RCPT IEC320-C14 PNL
- Power Entry Connectors - Inlets, Outlets, Modules
- 865-03/004 Datasheet
- -
- -
-
Lead free / RoHS Compliant - 7953
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is 865-03/004
Qualtek Part Number 865-03/004（Power Entry Connectors - Inlets, Outlets, Modules）, developed and manufactured by Qualtek, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
865-03/004 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
865-03/004 Specifications
- Part Number865-03/004
- CategoryPower Entry Connectors - Inlets, Outlets, Modules
- ManufacturerQualtek
- DescriptionPWR ENT MOD RCPT IEC320-C14 PNL
- Package-
- Series865
- FeaturesVoltage Selector
- Mounting TypePanel Mount, Flange
- TerminationQuick Connect
- ApprovalsCSA, UL, VDE
- Number of Positions3
- Connector TypeReceptacle, Male Blades - Module
- Connector StyleIEC 320-C14
- Filter TypeFiltered (EMI, RFI) - Commercial
- Current - IEC3A
- Voltage - IEC115/250VAC
- FuseYes
- Switch FeaturesSwitch On-Off
- Fuse Holder, DrawerFuse Holder
Application of 865-03/004
865-03/004 Datasheet
865-03/004 Datasheet , 865,Voltage Selector,Panel Mount, Flange,Quick Connect,CSA, UL, VDE,3,Receptacle, Male Blades - Module,IEC 320-C14,Filtered (EMI, RFI) - Commercial,3A,115/250VAC,Yes,Switch On-Off,Fuse Holder
865-03/004 Classification
Power Entry Connectors - Inlets, Outlets, Modules
FAQ about Power Entry Connectors - Inlets, Outlets, Modules
-
1. What is a power input connector?
The power input connector is a key electronic component used to connect power supplies and power-consuming devices. Its main function is to ensure safe and reliable transmission of power from the power supply to the device, and to provide a detachable interface to facilitate the installation, maintenance and replacement of the device. The power input connector usually consists of two parts: a plug and a socket, which transmit power through physical contact and electrical connection.
-
2. What are the power connectors?
There are many types of power connectors, suitable for different devices and scenarios.
Types and uses of power connectors
Equipment such as electric forklifts, electric cruise ships, and electric floor scrubbers: These devices usually use specific power connectors, such as Anderson plugs and Pin plugs, to ensure stable power supply and safe operation of the equipment.
Computer power connector: Computer power connectors include ATX power connectors, large four-pin power connectors, etc., which are used to convert AC power into the DC power required inside the computer. ATX power connectors are available in 20-pin and 24-pin versions. The 24-pin interface adds outputs such as +3.3V and +5VSB to achieve more efficient power management.
DC power connector: including XCD series aviation connectors, DC power plugs, etc., suitable for occasions that require fast plugging and unplugging and stable power supply, such as floor scrubber battery connectors, etc.
Technical parameters and standards of power connectors
Technical parameters: The technical parameters of power connectors include current, voltage, plug-in times, etc. For example, Anderson plugs support high current connections and are suitable for high-power equipment such as electric forklifts; DC power plugs have multiple specifications such as 3.5*1.35, suitable for different voltage and current requirements.
Standards: Power connectors follow certain industry standards, such as Anderson plugs, Pin plugs, etc., to ensure the compatibility and safety of equipment. -
3. What are the 3 types of connectors?
Board-to-board connector: This connector is used to connect two circuit boards together, and is usually used for high-density data transmission and signal transmission. Common board-to-board connectors include DDR memory sticks, PCBs, and PCI-E slots. They are widely used in computers, servers, and other devices that require high-speed data transmission.
Wire-to-wire connector: This connector is used to connect two cables, and is common in data cables and power cables. For example, S-ATA data cables, flat cables, USB cables, etc. These connectors are usually used to transmit data and power, and are widely used in computers, external devices, and other occasions that require wire-to-wire connections.
Wire-to-board connector: This connector is used to connect a cable to a circuit board. Common wire-to-board connectors include MiniDin, Audiojack, etc. They are mainly used for data and power transmission and are widely used in various electronic devices.
We are a professional PCB manufacturer who offers comprehensive PCB manufacturing services including: professional Ceramic PCB HDI PCB Heavy Copper PCB High-TG PCB High Speed PCB High Frequency PCB Metal Core PCB PCB fabrication and PCB assembly, providing fast turnaround prototypes for high-end products.
• Prompt Responsiveness
• Guaranteed Quality
• Global Access
• Competitive Market Price
• One-Stop support services of supply chain
Jinftry, Your most trustworthy component supplier, welcome to send us the inquiry, thank you!
