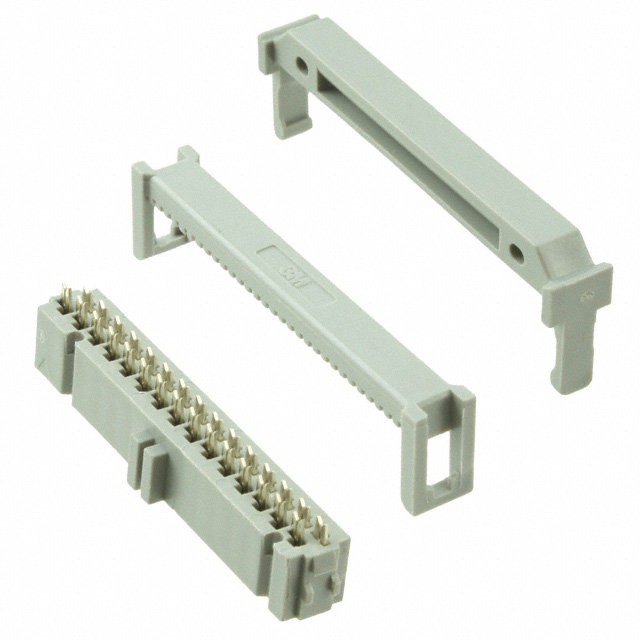

- CONN SOCKET 30 POS IDC W/STR REL
- Rectangular Connectors - Free Hanging, Panel Mount
- 89130-0103 Datasheet
- -
- -
-
Lead free / RoHS Compliant - 9298
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is 89130-0103
3M Part Number 89130-0103（Rectangular Connectors - Free Hanging, Panel Mount）, developed and manufactured by 3M, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
89130-0103 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
89130-0103 Specifications
- Part Number89130-0103
- CategoryRectangular Connectors - Free Hanging, Panel Mount
- Manufacturer3M
- DescriptionCONN SOCKET 30 POS IDC W/STR REL
- Package-
- Series891
- FeaturesFeed Through, Polarizing Key, Strain Relief
- Mounting TypeFree Hanging (In-Line)
- Contact FinishGold
- ColorGray
- Number of Positions30
- Pitch0.100" (2.54mm)
- Connector TypeReceptacle
- Wire Gauge26-28 AWG
- Contact Finish Thickness30µin (0.76µm)
- Number of Rows2
- Contact TypeFemale Socket
- Row Spacing0.100" (2.54mm)
- Cable TerminationIDC
- Wire TypeRibbon Cable
Application of 89130-0103
89130-0103 Datasheet
89130-0103 Datasheet , 891,Feed Through, Polarizing Key, Strain Relief,Free Hanging (In-Line),Gold,Gray,30,0.100" (2.54mm),Receptacle,26-28 AWG,30µin (0.76µm),2,Female Socket,0.100" (2.54mm),IDC,Ribbon Cable
