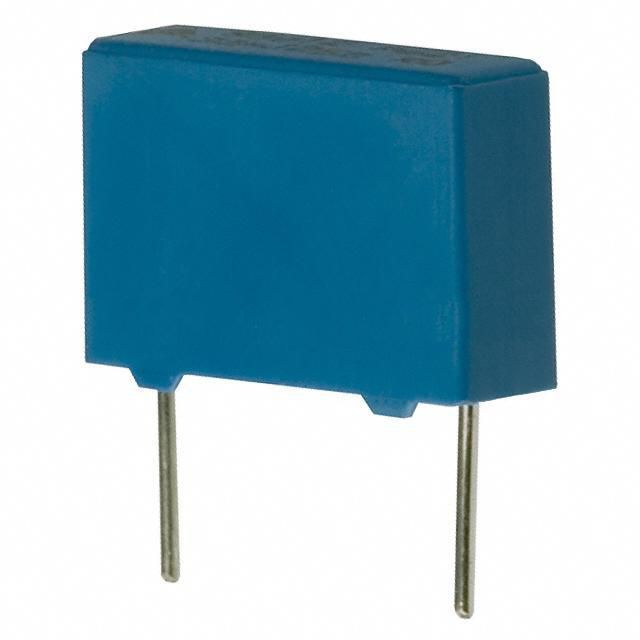

EPCOS - TDK Electronics B32621A6103K189
The picture is for reference only, please refer to the product specification
- B32621A6103K189
- EPCOS - TDK Electronics
- CAP FILM 10000PF 10% 630VDC RAD
- Film Capacitors
- B32621A6103K189 Datasheet
- Radial
- -Reel®
-
Lead free / RoHS Compliant - 8162
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is B32621A6103K189
EPCOS - TDK Electronics Part Number B32621A6103K189（Film Capacitors）, developed and manufactured by EPCOS - TDK Electronics, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
B32621A6103K189 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
B32621A6103K189 Specifications
- Part NumberB32621A6103K189
- CategoryFilm Capacitors
- ManufacturerEPCOS - TDK Electronics
- DescriptionCAP FILM 10000PF 10% 630VDC RAD
- Package-Reel®
- SeriesB32621
- Features-
- Operating Temperature-55°C ~ 105°C
- Mounting TypeThrough Hole
- Package / CaseRadial
- ApplicationsHigh Pulse, DV/DT
- Tolerance±10%
- Size / Dimension0.512" L x 0.157" W (13.00mm x 4.00mm)
- TerminationPC Pins
- Voltage Rating - AC400V
- Voltage Rating - DC630V
- Lead Spacing0.394\" (10.00mm)
- Ratings-
- Height - Seated (Max)0.354\" (9.00mm)
- Capacitance10000 pF
- ESR (Equivalent Series Resistance)-
- Dielectric MaterialPolypropylene (PP), Metallized - Stacked
Application of B32621A6103K189
B32621A6103K189 Datasheet
B32621A6103K189 Datasheet , -Reel®,B32621,-55°C ~ 105°C,Through Hole,Radial,High Pulse, DV/DT,±10%,0.512" L x 0.157" W (13.00mm x 4.00mm),PC Pins,400V,630V,0.394\" (10.00mm),0.354\" (9.00mm),10000 pF,Polypropylene (PP), Metallized -
B32621A6103K189 Classification
Film Capacitors
FAQ about Film Capacitors
-
1. What are the uses of film capacitors?
High-frequency filtering, power decoupling, power noise bypass
The main uses of film capacitors include high-frequency filtering, power decoupling, power noise bypass, etc. In electronic devices, film capacitors are widely used in various circuits due to their high insulation impedance, wide frequency response and self-healing properties.
Specific application scenarios
High-frequency filtering: Film capacitors have excellent high-frequency insulation performance, and the capacitance and loss angle are independent of frequency in a large frequency range and change little with temperature, so they are often used in high-frequency filtering circuits.
Power decoupling: In car audio systems, film capacitors are used for power decoupling to ensure stable power supply and avoid noise caused by feedback generated by the power supply.
Power noise bypass: Film capacitors are also widely used for power noise bypass (reverse cross-connection) to reduce the impact of power noise on the circuit.
Different types of applications
CBB film capacitors: widely used in circuit boards because of their high insulation impedance and wide frequency response.
Organic film capacitors: Made of materials such as polypropylene film and polyester film, they have excellent performance, a wide variety of varieties, and a wide range of applications. They are suitable for a variety of electronic devices.
-
2. What is the difference between foil capacitors and film capacitors?
Electrode materials, structure, and application areas
The main difference between foil capacitors and film capacitors lies in electrode materials, structures, and application areas.
Electrode materials and structures
Foil capacitors: Foil capacitors usually use metal foil as electrodes. This electrode is formed on a plastic film by vacuum evaporation, which is called a metallized film. This structure can save the thickness of the electrode foil, thereby reducing the volume of the capacitor and making it more miniaturized.
Film capacitors: Film capacitors use plastic films as dielectrics. Common plastic films include polyethylene, polypropylene, polystyrene or polycarbonate. These films overlap at both ends and are rolled into a cylinder to form a capacitor. -
3. What are the alternatives to film capacitors?
CL21 capacitors, MPB capacitors, CBB13, CBB81, MMKP82 capacitors
Alternatives to film capacitors mainly include CL21 capacitors, MPB capacitors, CBB13, CBB81 and MMKP82 capacitors. These alternatives have their own advantages and disadvantages in performance and applicable scenarios, and the specific choice depends on specific needs.
CL21 capacitors
CL21 capacitors and CBB22 capacitors can replace each other in applications such as filtering. CL21 capacitors are more stable than CBB22 capacitors under high-frequency conditions, so CL21 capacitors are more preferred in high-frequency circuits. However, CL21 capacitors are more expensive and perform better in high-frequency circuits.
MPB capacitors
MPB capacitors are boxed metallized polypropylene film capacitors with the same core as CBB22 capacitors, but with a plastic shell, which has better resistance to high temperature, moisture and sealing performance. MPB capacitors can replace CBB22 capacitors in high frequency, DC, AC and pulse high current applications, but their prices are relatively high.
CBB13, CBB81 and MMKP82 capacitors
These capacitors have a higher voltage resistance, up to 3000V, and are suitable for applications requiring higher voltages. However, they are also relatively expensive and larger in size.
