BFC236857184

Vishay Beyschlag/Draloric/BC Components BFC236857184

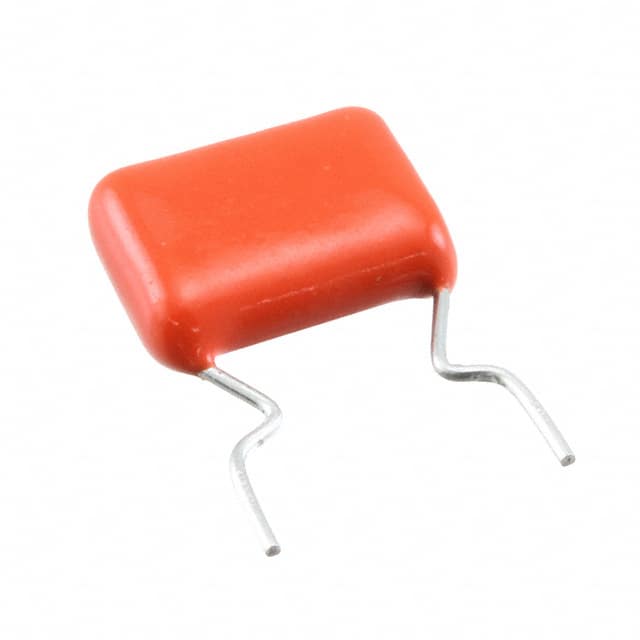

The picture is for reference only, please refer to the product specification

  • BFC236857184
  • Vishay Beyschlag/Draloric/BC Components
  • CAP FILM 0.18UF 5% 400VDC RADIAL
  • Film Capacitors
  • BFC236857184 Datasheet
  • Radial
  • Bulk
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 1992
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is BFC236857184

Vishay Beyschlag/Draloric/BC Components Part Number BFC236857184（Film Capacitors）, developed and manufactured by Vishay Beyschlag/Draloric/BC Components, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

BFC236857184 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

BFC236857184 Specifications

  • Part NumberBFC236857184
  • CategoryFilm Capacitors
  • ManufacturerVishay Beyschlag/Draloric/BC Components
  • DescriptionCAP FILM 0.18UF 5% 400VDC RADIAL
  • PackageBulk
  • SeriesMKT368
  • FeaturesLong Life
  • Operating Temperature-55°C ~ 105°C
  • Mounting TypeThrough Hole
  • Package / CaseRadial
  • ApplicationsGeneral Purpose
  • Tolerance±5%
  • Size / Dimension1.024" L x 0.220" W (26.00mm x 5.60mm)
  • TerminationPC Pins
  • Voltage Rating - AC220V
  • Voltage Rating - DC400V
  • Lead Spacing0.886\" (22.50mm)
  • Ratings-
  • Height - Seated (Max)0.689\" (17.50mm)
  • Capacitance0.18 µF
  • ESR (Equivalent Series Resistance)-
  • Dielectric MaterialPolyester, Metallized

Application of BFC236857184

Film capacitors are mainly used in multiple industries such as electronics, communication, automotive electronics, and medical equipment. In power electronics equipment, they are widely used in DC link filtering, power supply stabilization, and motor drive circuits to ensure smooth current and stable voltage. In audio devices such as speaker crossover networks, preamplifiers, and power amplifiers, thin film capacitors are favored for their excellent frequency response and low distortion characteristics, which help improve sound quality performance. In addition, thin film capacitors are often used in signal processing and filtering in communication systems, which can effectively remove noise in the signal and improve transmission quality. In the field of automotive electronics, thin film capacitors are used in engine management systems, airbag circuits, and in car entertainment systems to ensure circuit stability and safety. In medical equipment, such as electrocardiogram monitors and pacemakers, the high precision and stability of thin film capacitors make them key components that play an important role in monitoring and treating the health of patients.

BFC236857184 Datasheet

BFC236857184 Datasheet , Bulk,MKT368,Long Life,-55°C ~ 105°C,Through Hole,Radial,General Purpose,±5%,1.024" L x 0.220" W (26.00mm x 5.60mm),PC Pins,220V,400V,0.886\" (22.50mm),0.689\" (17.50mm),0.18 µF,Polyester, Metallized

BFC236857184 Classification

Film Capacitors

Film capacitors are capacitors that use thin film materials as dielectric. This structure mainly consists of two layers of conductive metal foil, sandwiched with a thin film medium, which is usually made of polymer materials such as polyether esters, polypropylene, or polystyrene. The design principle is based on the storage of charges. When voltage is applied to both ends of the capacitor, positive and negative charges accumulate on two layers of metal foil, forming an electric field. Thin film capacitors are renowned for their high stability, low loss factor, and wide operating temperature range, and are particularly suitable for high-frequency circuits. In addition, due to its good self-healing ability, which can self recover after partial breakdown in the dielectric, it has a long service life and high reliability.

FAQ about Film Capacitors

  • 1. What is a paper film capacitor?

    Paper film capacitors are actually a conceptual error because "paper film capacitors" are not a standard type of capacitor. Based on the information provided, you may want to ask about paper capacitors and film capacitors.
    Paper capacitors
    Paper capacitors are capacitors that use paper as a dielectric. It consists of thin paper as the dielectric and aluminum foil as the electrode, which is wound into a cylindrical shape and then impregnated with a shell or epoxy resin. Paper capacitors have the following characteristics:
    Low cost: Paper capacitors are usually low-cost and suitable for mass production.
    Large loss: Due to its material properties, paper capacitors have large losses.
    Application scenarios: Mainly used for bypass, coupling, filtering, etc. in low-frequency circuits.

  • 2. Are film capacitors suitable for audio?

    Suitable
    Film capacitors are very suitable for audio applications. Film capacitors perform well in audio circuits and have the following advantages:
    Non-polarity: Film capacitors have no positive or negative poles, which gives them greater flexibility in circuit design.
    High insulation impedance: The insulation impedance of film capacitors is very high, which can effectively reduce leakage current in the circuit and improve the stability of the circuit.
    Excellent frequency characteristics: Film capacitors have a wide frequency response and can provide stable capacitance performance in the high and low frequency ranges, which is suitable for various frequency changes in audio circuits.
    Low dielectric loss: The dielectric loss of film capacitors is very small, which means that during the transmission of audio signals, less energy is lost and the integrity of the signal is maintained.
    Self-healing properties: Film capacitors have self-healing properties and can automatically repair internal defects when they occur, extending their service life.

  • 3. What is the difference between foil capacitors and film capacitors?

    Electrode materials, structure, and application areas
    The main difference between foil capacitors and film capacitors lies in electrode materials, structures, and application areas.
    Electrode materials and structures
    Foil capacitors: Foil capacitors usually use metal foil as electrodes. This electrode is formed on a plastic film by vacuum evaporation, which is called a metallized film. This structure can save the thickness of the electrode foil, thereby reducing the volume of the capacitor and making it more miniaturized.
    Film capacitors: Film capacitors use plastic films as dielectrics. Common plastic films include polyethylene, polypropylene, polystyrene or polycarbonate. These films overlap at both ends and are rolled into a cylinder to form a capacitor.
