Vishay Beyschlag/Draloric/BC Components BFC247066152

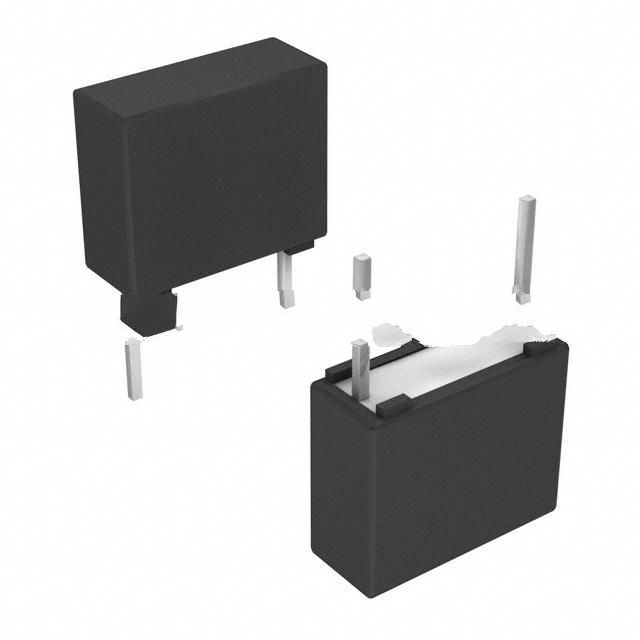

The picture is for reference only, please refer to the product specification
- BFC247066152
- Vishay Beyschlag/Draloric/BC Components
- CAP FILM 1500PF 5% 400VDC RADIAL
- Film Capacitors
- BFC247066152 Datasheet
- Radial
- -Reel®
-
Lead free / RoHS Compliant - 3851
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is BFC247066152
Vishay Beyschlag/Draloric/BC Components Part Number BFC247066152（Film Capacitors）, developed and manufactured by Vishay Beyschlag/Draloric/BC Components, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
BFC247066152 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
BFC247066152 Specifications
- Part NumberBFC247066152
- CategoryFilm Capacitors
- ManufacturerVishay Beyschlag/Draloric/BC Components
- DescriptionCAP FILM 1500PF 5% 400VDC RADIAL
- Package-Reel®
- SeriesMKT470
- FeaturesLong Life
- Operating Temperature-55°C ~ 125°C
- Mounting TypeThrough Hole
- Package / CaseRadial
- ApplicationsGeneral Purpose
- Tolerance±5%
- Size / Dimension0.283" L x 0.098" W (7.20mm x 2.50mm)
- TerminationPC Pins
- Voltage Rating - AC200V
- Voltage Rating - DC400V
- Lead Spacing0.500\" (12.70mm)
- Ratings-
- Height - Seated (Max)0.728\" (18.50mm)
- Capacitance1500 pF
- ESR (Equivalent Series Resistance)-
- Dielectric MaterialPolyester, Metallized
Application of BFC247066152
BFC247066152 Datasheet
BFC247066152 Datasheet , -Reel®,MKT470,Long Life,-55°C ~ 125°C,Through Hole,Radial,General Purpose,±5%,0.283" L x 0.098" W (7.20mm x 2.50mm),PC Pins,200V,400V,0.500\" (12.70mm),0.728\" (18.50mm),1500 pF,Polyester, Metallized
BFC247066152 Classification
Film Capacitors
FAQ about Film Capacitors
-
1. What are the uses of film capacitors?
High-frequency filtering, power decoupling, power noise bypass
The main uses of film capacitors include high-frequency filtering, power decoupling, power noise bypass, etc. In electronic devices, film capacitors are widely used in various circuits due to their high insulation impedance, wide frequency response and self-healing properties.
Specific application scenarios
High-frequency filtering: Film capacitors have excellent high-frequency insulation performance, and the capacitance and loss angle are independent of frequency in a large frequency range and change little with temperature, so they are often used in high-frequency filtering circuits.
Power decoupling: In car audio systems, film capacitors are used for power decoupling to ensure stable power supply and avoid noise caused by feedback generated by the power supply.
Power noise bypass: Film capacitors are also widely used for power noise bypass (reverse cross-connection) to reduce the impact of power noise on the circuit.
Different types of applications
CBB film capacitors: widely used in circuit boards because of their high insulation impedance and wide frequency response.
Organic film capacitors: Made of materials such as polypropylene film and polyester film, they have excellent performance, a wide variety of varieties, and a wide range of applications. They are suitable for a variety of electronic devices.
-
2. What is a paper film capacitor?
Paper film capacitors are actually a conceptual error because "paper film capacitors" are not a standard type of capacitor. Based on the information provided, you may want to ask about paper capacitors and film capacitors.
Paper capacitors
Paper capacitors are capacitors that use paper as a dielectric. It consists of thin paper as the dielectric and aluminum foil as the electrode, which is wound into a cylindrical shape and then impregnated with a shell or epoxy resin. Paper capacitors have the following characteristics:
Low cost: Paper capacitors are usually low-cost and suitable for mass production.
Large loss: Due to its material properties, paper capacitors have large losses.
Application scenarios: Mainly used for bypass, coupling, filtering, etc. in low-frequency circuits. -
3. Will the performance of film capacitors degrade?
Yes
The performance of film capacitors will degrade. The performance degradation of film capacitors is mainly due to their internal structure and material properties.
Reasons for performance degradation
Metal plating oxidation: During the capacitor manufacturing process, there is a trace amount of air between the film layers, which may be ionized under the action of the electric field to produce ozone. Ozone is a strong oxidant that oxidizes the metal plating to produce non-conductive metal oxides, resulting in a reduction in the plate area and a decrease in the capacitor capacity.
Humid air: During the winding process of film capacitors, if the workshop environment is not properly controlled, there will be a large amount of humid air. These humid air will produce air ionization reactions when the capacitor is working, generating ozone, which further causes the capacitor capacity to decay.
Poor quality materials: The film materials used are of poor quality, such as uneven evaporation and defects on the film, which will cause the capacitor capacity to decay.
