BYT78-TAP

Vishay Semiconductor - Diodes Division BYT78-TAP

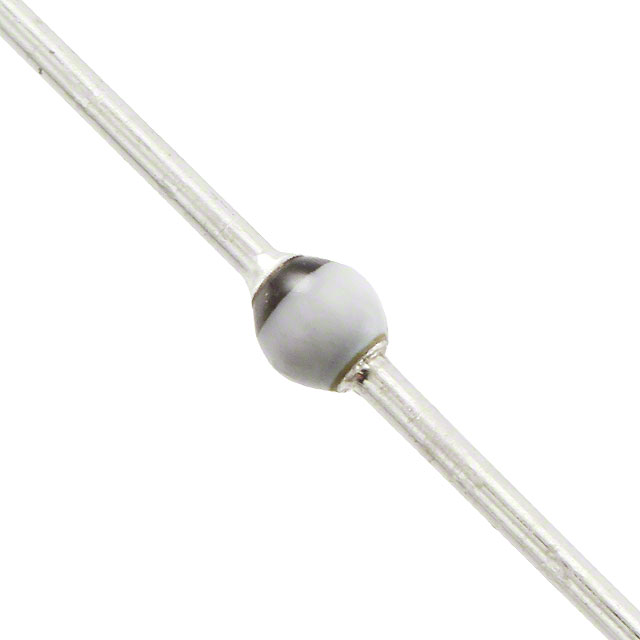

The picture is for reference only, please refer to the product specification

  • BYT78-TAP
  • Vishay Semiconductor - Diodes Division
  • DIODE AVALANCHE 1KV 3A SOD64
  • Diodes - Rectifiers - Single
  • BYT78-TAP Datasheet
  • SOD-64, Axial
  • Tape & Reel (TR)
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 6403
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is BYT78-TAP

Vishay Semiconductor - Diodes Division Part Number BYT78-TAP（Diodes - Rectifiers - Single）, developed and manufactured by Vishay Semiconductor - Diodes Division, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

BYT78-TAP is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

BYT78-TAP Specifications

  • Part NumberBYT78-TAP
  • CategoryDiodes - Rectifiers - Single
  • ManufacturerVishay Semiconductor - Diodes Division
  • DescriptionDIODE AVALANCHE 1KV 3A SOD64
  • PackageTape & Reel (TR)
  • Series-
  • Mounting TypeThrough Hole
  • Package / CaseSOD-64, Axial
  • Supplier Device PackageSOD-64
  • Diode TypeAvalanche
  • Current - Average Rectified (Io)3A
  • Voltage - Forward (Vf) (Max) @ If1.2 V @ 3 A
  • Current - Reverse Leakage @ Vr5 µA @ 1000 V
  • Capacitance @ Vr, F-
  • Voltage - DC Reverse (Vr) (Max)1000 V
  • SpeedFast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr)250 ns
  • Operating Temperature - Junction-55°C ~ 175°C

Application of BYT78-TAP

Rectifiers are used in an extremely wide range of applications, covering almost all situations where DC power is required. In terms of power supply equipment, rectifiers are widely used in power transformers, switching power supplies, etc., to provide stable DC power for various electronic equipment. In the field of lighting, with the popularity of new light sources such as LED, rectifier-single also plays an important role, it can convert alternating current into direct current to drive LED lights and other light-emitting devices, to achieve energy-efficient lighting effects. In addition, in many fields such as industrial automation, communication equipment, automotive electronics, medical equipment, rectifiers also play an irreplaceable role. Especially in the field of industrial automation, rectifiers - provide a stable DC power supply for motors, frequency converters and other equipment, ensuring the stable operation of the production line and efficient production.

BYT78-TAP Datasheet

BYT78-TAP Datasheet , Tape & Reel (TR),Through Hole,SOD-64, Axial,SOD-64,Avalanche,3A,1.2 V @ 3 A,5 µA @ 1000 V,1000 V,Fast Recovery =< 500ns, > 200mA (Io),250 ns,-55°C ~ 175°C

BYT78-TAP Classification

Diodes - Rectifiers - Single

Rectifiers - Single refers to a standalone rectifier device, which usually contains one or several rectifying elements (such as diodes), and its core function is to convert alternating current (AC) to direct current (DC). Specifically, it takes advantage of the unidirectional conductivity of semiconductor diodes, allowing current to pass in only one direction, thus enabling the conversion from fluctuating alternating current to stable direct current.

FAQ about Diodes - Rectifiers - Single

  • 1. What is forward voltage drop?

    Forward voltage drop refers to the voltage drop generated when the current passes through a diode when it is conducting. The forward voltage drop of silicon rectifier diodes is usually around 0.7V, while the forward voltage drop of Schottky diodes is usually lower, between 0.2V and 0.3V.

  • 2. What is a fast recovery diode?

    Fast recovery diode is a special type of rectifier diode with a short reverse recovery time, suitable for high-frequency power supplies and switch mode power supplies (SMPS) applications, reducing switching losses.

  • 3. What is the reverse recovery time of a rectifier diode?

    Reverse recovery time refers to the time required for a diode to transition from a forward conducting state to a reverse blocking state. A shorter reverse recovery time is particularly important in high-frequency applications to reduce power loss.

We are a professional PCB manufacturer who offers comprehensive PCB manufacturing services including: professional Ceramic PCB HDI PCB Heavy Copper PCB High-TG PCB High Speed PCB High Frequency PCB Metal Core PCB PCB fabrication and PCB assembly, providing fast turnaround prototypes for high-end products.

• Prompt Responsiveness

• Guaranteed Quality

• Global Access

• Competitive Market Price

• One-Stop support services of supply chain

Jinftry, Your most trustworthy component supplier, welcome to send us the inquiry, thank you!

Do you have any questions about BYT78-TAP ?
Feel free to contact us:

+86-755-28503874
+8615019224070, annies65, +8615118125813
568248857, 827259012, 316249462
+8615019224070, +8615118118839, +8615118125813
( Email first will be appreciative )
