C1206C569D2GACTU

KEMET C1206C569D2GACTU

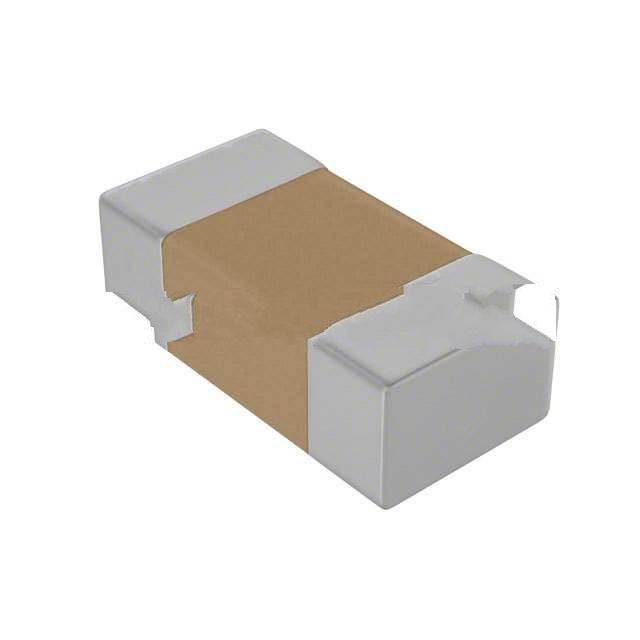

The picture is for reference only, please refer to the product specification

  • C1206C569D2GACTU
  • KEMET
  • CAP CER 5.6PF 200V NP0 1206
  • Ceramic Capacitors
  • C1206C569D2GACTU Datasheet
  • 1206 (3216 Metric)
  • 1206 (3216 Metric)
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 10630
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is C1206C569D2GACTU

KEMET Part Number C1206C569D2GACTU（Ceramic Capacitors）, developed and manufactured by KEMET, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

C1206C569D2GACTU is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

C1206C569D2GACTU Specifications

  • Part NumberC1206C569D2GACTU
  • CategoryCeramic Capacitors
  • ManufacturerKEMET
  • DescriptionCAP CER 5.6PF 200V NP0 1206
  • Package1206 (3216 Metric)
  • SeriesC
  • FeaturesLow ESL
  • Operating Temperature-55°C ~ 125°C
  • Mounting TypeSurface Mount, MLCC
  • Package / Case1206 (3216 Metric)
  • ApplicationsGeneral Purpose
  • Tolerance±0.5pF
  • Temperature CoefficientC0G, NP0
  • Size / Dimension0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Voltage - Rated200V
  • Thickness (Max)0.035" (0.88mm)
  • Capacitance5.6pF

Application of C1206C569D2GACTU

Ceramic capacitors are widely used in various electronic devices and communication systems, especially where stable capacitance values and high frequency response are required. They are used for filtering, coupling, and bypass to ensure signal purity and stable system operation. In the field of computer science, ceramic capacitors play a crucial role in power supply filtering and smoothing voltage fluctuations. In addition, it is commonly used in engine control units, airbag trigger systems, and automotive entertainment systems in automotive electronics systems for precise timing control and signal processing. Medical devices such as electrocardiograph and ultrasonic diagnostic equipment also rely on ceramic capacitors to ensure circuit reliability and measurement accuracy.

C1206C569D2GACTU Datasheet

C1206C569D2GACTU Datasheet , 1206 (3216 Metric),C,Low ESL,-55°C ~ 125°C,Surface Mount, MLCC,1206 (3216 Metric),General Purpose,±0.5pF,C0G, NP0,0.126" L x 0.063" W (3.20mm x 1.60mm),200V,0.035" (0.88mm),5.6pF

C1206C569D2GACTU Classification

Ceramic Capacitors

Ceramic capacitors, also known as ceramic dielectric capacitors or single stone capacitors, are capacitors that use ceramic materials as the dielectric. Its core components include two metal electrodes and a ceramic dielectric layer sandwiched in the middle. This design principle enables ceramic capacitors to have high stability, low loss, wide temperature range, and high frequency response characteristics. Ceramic capacitors can be classified into various types based on the different dielectric materials, including low temperature coefficient (NP0/C0G), high temperature coefficient (X7R/X5R), and high dielectric constant (Z5U/Y5V).

FAQ about Ceramic Capacitors

  • 1. Do ceramic capacitors deteriorate over time?

    While ceramic capacitors are relatively stable, their capacitance value may decrease slightly over time, especially under extreme environmental conditions. However, this change is usually small and will not significantly affect most applications.

  • 2. How do I know if my ceramic capacitor is bad?

    Visual inspection: Check for cracks, bulges, or other physical damage.
    Multimeter test: Measure the capacitance value to see if it is close to the nominal value, and check for shorts or opens.

  • 3. What is the difference between Class 1 and Class 2 ceramic capacitors?

    Class 1: has high accuracy and stable temperature coefficient, suitable for precision circuits.
    Class 2: has higher capacitance value, but larger temperature coefficient and tolerance, suitable for general applications.

We are a professional PCB manufacturer who offers comprehensive PCB manufacturing services including: professional Ceramic PCB HDI PCB Heavy Copper PCB High-TG PCB High Speed PCB High Frequency PCB Metal Core PCB PCB fabrication and PCB assembly, providing fast turnaround prototypes for high-end products.

• Prompt Responsiveness

• Guaranteed Quality

• Global Access

• Competitive Market Price

• One-Stop support services of supply chain

Jinftry, Your most trustworthy component supplier, welcome to send us the inquiry, thank you!

Do you have any questions about C1206C569D2GACTU ?
Feel free to contact us:

+86-755-28503874
+8615019224070, annies65, +8615118125813
568248857, 827259012, 316249462
+8615019224070, +8615118118839, +8615118125813
( Email first will be appreciative )
