C1608C0G1H103J080AA

TDK Corporation C1608C0G1H103J080AA

The picture is for reference only, please refer to the product specification

  • C1608C0G1H103J080AA
  • TDK Corporation
  • CAP CER 10000PF 50V C0G 0603
  • Ceramic Capacitors
  • C1608C0G1H103J080AA Datasheet
  • 0603 (1608 Metric)
  • Cut Tape (CT)
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 2640
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is C1608C0G1H103J080AA

TDK Corporation Part Number C1608C0G1H103J080AA（Ceramic Capacitors）, developed and manufactured by TDK Corporation, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

C1608C0G1H103J080AA is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

C1608C0G1H103J080AA Specifications

  • Part NumberC1608C0G1H103J080AA
  • CategoryCeramic Capacitors
  • ManufacturerTDK Corporation
  • DescriptionCAP CER 10000PF 50V C0G 0603
  • PackageCut Tape (CT)
  • SeriesC
  • FeaturesLow ESL
  • Operating Temperature-55°C ~ 125°C
  • Mounting TypeSurface Mount, MLCC
  • Package / Case0603 (1608 Metric)
  • ApplicationsGeneral Purpose
  • Tolerance±5%
  • Temperature CoefficientC0G, NP0
  • Size / Dimension0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Voltage - Rated50V
  • Lead Spacing-
  • Thickness (Max)0.035\" (0.90mm)
  • Ratings-
  • Height - Seated (Max)-
  • Capacitance10000 pF
  • Lead Style-
  • Failure Rate-

Application of C1608C0G1H103J080AA

Ceramic capacitors are widely used in various electronic devices and communication systems, especially where stable capacitance values and high frequency response are required. They are used for filtering, coupling, and bypass to ensure signal purity and stable system operation. In the field of computer science, ceramic capacitors play a crucial role in power supply filtering and smoothing voltage fluctuations. In addition, it is commonly used in engine control units, airbag trigger systems, and automotive entertainment systems in automotive electronics systems for precise timing control and signal processing. Medical devices such as electrocardiograph and ultrasonic diagnostic equipment also rely on ceramic capacitors to ensure circuit reliability and measurement accuracy.

C1608C0G1H103J080AA Datasheet

C1608C0G1H103J080AA Datasheet , Cut Tape (CT),C,Low ESL,-55°C ~ 125°C,Surface Mount, MLCC,0603 (1608 Metric),General Purpose,±5%,C0G, NP0,0.063" L x 0.031" W (1.60mm x 0.80mm),50V,0.035\" (0.90mm),10000 pF

C1608C0G1H103J080AA Classification

Ceramic Capacitors

Ceramic capacitors, also known as ceramic dielectric capacitors or single stone capacitors, are capacitors that use ceramic materials as the dielectric. Its core components include two metal electrodes and a ceramic dielectric layer sandwiched in the middle. This design principle enables ceramic capacitors to have high stability, low loss, wide temperature range, and high frequency response characteristics. Ceramic capacitors can be classified into various types based on the different dielectric materials, including low temperature coefficient (NP0/C0G), high temperature coefficient (X7R/X5R), and high dielectric constant (Z5U/Y5V).

FAQ about Ceramic Capacitors

  • 1. What are ceramic capacitors used for?

    Ceramic capacitors are widely used in various electronic devices, mainly for:

    Coupling and decoupling: used in circuits to isolate DC signals while transmitting AC signals.
    Filtering: remove noise from the power supply or smooth the output voltage.
    Resonant circuit: such as oscillators in radio frequency (RF) circuits.
    Temperature compensation: some types of ceramic capacitors have temperature coefficients that can be used to stabilize circuit performance.
    Bypass: provide a low impedance path for high-frequency signals, thereby reducing the impact on other parts.

  • 2. How do I know if my ceramic capacitor is bad?

    Visual inspection: Check for cracks, bulges, or other physical damage.
    Multimeter test: Measure the capacitance value to see if it is close to the nominal value, and check for shorts or opens.

  • 3. Can ceramic capacitors be used in AC?

    Ceramic capacitors are well suited for AC circuits because they have good frequency response characteristics and low losses.

We are a professional PCB manufacturer who offers comprehensive PCB manufacturing services including: professional Ceramic PCB HDI PCB Heavy Copper PCB High-TG PCB High Speed PCB High Frequency PCB Metal Core PCB PCB fabrication and PCB assembly, providing fast turnaround prototypes for high-end products.

• Prompt Responsiveness

• Guaranteed Quality

• Global Access

• Competitive Market Price

• One-Stop support services of supply chain

Jinftry, Your most trustworthy component supplier, welcome to send us the inquiry, thank you!

Do you have any questions about C1608C0G1H103J080AA ?
Feel free to contact us:

+86-755-28503874
+8615019224070, annies65, +8615118125813
568248857, 827259012, 316249462
+8615019224070, +8615118118839, +8615118125813
( Email first will be appreciative )

Customer reviews

Post your comment

TDK Corporation
TDK Corporation
TDK Corporation is an electronic materials and component manufacturing company.
In 1935, TDK Corporation was founded in Tokyo, Japan. The company's products mainly include passive components, sensors, magnetic materials, power and energy devices, acoustic...
CGA3E2C0G1H103J080AA
CGA3E2C0G1H103J080AA

CAP CER 10000PF 50V C0G 0603

C1005X7S1A225K050BC
C1005X7S1A225K050BC

CAP CER 10000PF 50V C0G 0603

CGA4J1X7R1E475M125AC
CGA4J1X7R1E475M125AC

CAP CER 10000PF 50V C0G 0603

FA26X7R1E105KNU06
FA26X7R1E105KNU06

CAP CER 10000PF 50V C0G 0603

CGA5H2X8R2A104K115AA
CGA5H2X8R2A104K115AA

CAP CER 10000PF 50V C0G 0603

C0510X5R0J105M030BC
C0510X5R0J105M030BC

CAP CER 10000PF 50V C0G 0603

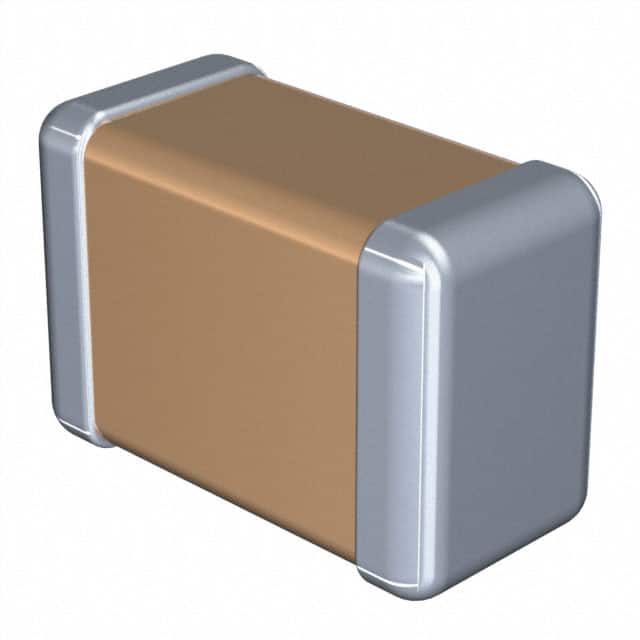

C3216X5R2A105K160AA
