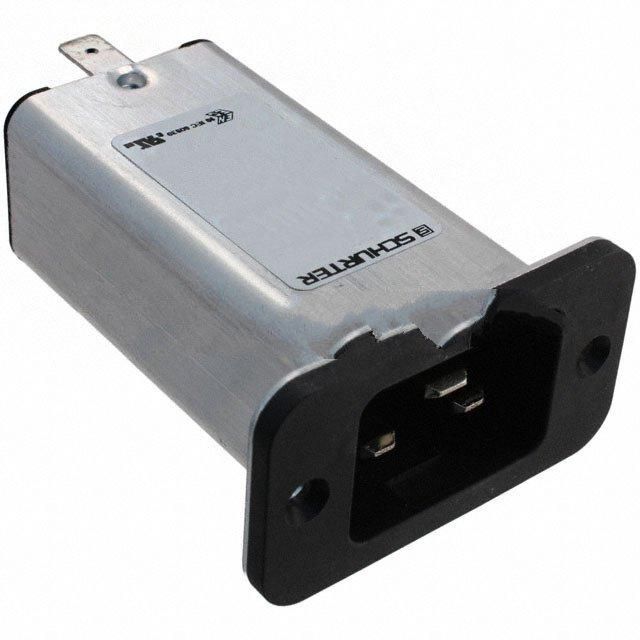

Schurter Inc. C20F.0101
The picture is for reference only, please refer to the product specification
- C20F.0101
- Schurter Inc.
- PWR ENT RCPT IEC320-C20 PANEL QC
- Power Entry Connectors - Inlets, Outlets, Modules
- C20F.0101 Datasheet
- -
- -
-
Lead free / RoHS Compliant - 1501
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is C20F.0101
Schurter Inc. Part Number C20F.0101（Power Entry Connectors - Inlets, Outlets, Modules）, developed and manufactured by Schurter Inc., distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
C20F.0101 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
C20F.0101 Specifications
- Part NumberC20F.0101
- CategoryPower Entry Connectors - Inlets, Outlets, Modules
- ManufacturerSchurter Inc.
- DescriptionPWR ENT RCPT IEC320-C20 PANEL QC
- Package-
- SeriesC20F
- FeaturesShielded
- Mounting TypePanel Mount, Flange
- TerminationQuick Connect - 0.250" (6.3mm)
- Ingress ProtectionIP40
- ApprovalscULus, VDE
- Number of Positions3
- Connector TypeReceptacle, Male Blades
- Connector StyleIEC 320-C20
- Material Flammability RatingUL94 V-0
- Filter TypeFiltered (EMI, RFI) - Commercial
- Current - IEC16A
- Voltage - IEC250VAC
- Current - UL20A
- Voltage - UL250VAC
- FuseNo
- Panel Cutout DimensionsRectangular - 34.80mm x 26.80mm
Application of C20F.0101
C20F.0101 Datasheet
C20F.0101 Datasheet , C20F,Shielded,Panel Mount, Flange,Quick Connect - 0.250" (6.3mm),IP40,cULus, VDE,3,Receptacle, Male Blades,IEC 320-C20,UL94 V-0,Filtered (EMI, RFI) - Commercial,16A,250VAC,20A,250VAC,No,Rectangular - 34.80mm
C20F.0101 Classification
Power Entry Connectors - Inlets, Outlets, Modules
FAQ about Power Entry Connectors - Inlets, Outlets, Modules
-
1. What is a power input connector?
The power input connector is a key electronic component used to connect power supplies and power-consuming devices. Its main function is to ensure safe and reliable transmission of power from the power supply to the device, and to provide a detachable interface to facilitate the installation, maintenance and replacement of the device. The power input connector usually consists of two parts: a plug and a socket, which transmit power through physical contact and electrical connection.
-
2. What are the 3 types of connectors?
Board-to-board connector: This connector is used to connect two circuit boards together, and is usually used for high-density data transmission and signal transmission. Common board-to-board connectors include DDR memory sticks, PCBs, and PCI-E slots. They are widely used in computers, servers, and other devices that require high-speed data transmission.
Wire-to-wire connector: This connector is used to connect two cables, and is common in data cables and power cables. For example, S-ATA data cables, flat cables, USB cables, etc. These connectors are usually used to transmit data and power, and are widely used in computers, external devices, and other occasions that require wire-to-wire connections.
Wire-to-board connector: This connector is used to connect a cable to a circuit board. Common wire-to-board connectors include MiniDin, Audiojack, etc. They are mainly used for data and power transmission and are widely used in various electronic devices. -
3. What is a power connector port?
The power connector port refers to the interface part on the power connector, which is used to connect the power supply and electronic equipment to ensure the normal operation of the equipment. The power connector is an electronic component, usually composed of a plug and a socket, which facilitates the connection and disconnection of the power supply. They are widely used in various electronic devices, such as computers, household appliances, communication equipment, and industrial equipment.
Types and functions of power connector ports
Power connector ports can be classified according to a variety of characteristics:
According to the type of electrical energy: divided into AC (AC) and DC (DC) power connectors. AC power connectors include IEC320, three-pole (C14), American standard plugs, and European standard plugs; DC power connectors include USB, DC sockets, box heads, and AV audio heads.
According to the interface type: including plug type, socket type, USB type, etc. Plug-type power connectors usually have two parts, a pin and a socket. USB-type power connectors are widely used in various electronic devices, with the advantages of small size, fast transmission speed, and easy use.
According to the shape: divided into straight, curved, male and female heads, etc. Straight power connectors are suitable for straight current transmission, curved types are suitable for curved current transmission, and male and female heads are used for matching connections between devices.
According to the material: divided into metal, plastic, ceramic, etc. Metal power connectors have good conductivity but are prone to rust, plastic power connectors are light but have poor high temperature resistance, and ceramic power connectors are high temperature resistant but have high costs.
