C317C101F2G5TA

KEMET C317C101F2G5TA

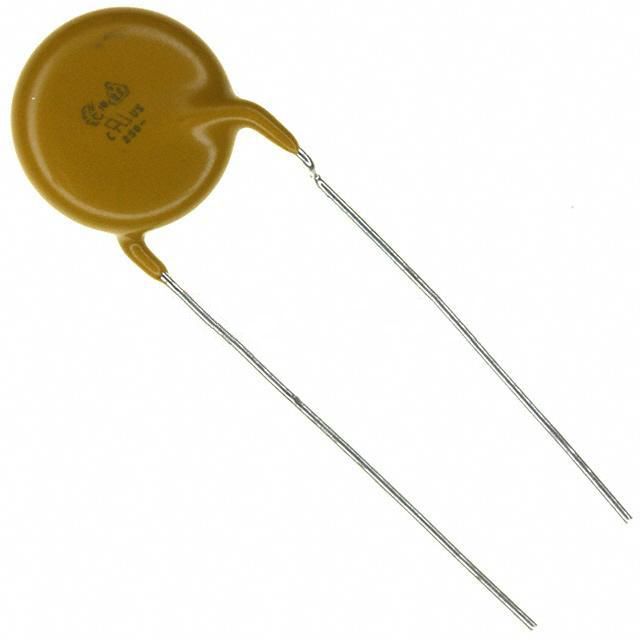

The picture is for reference only, please refer to the product specification

  • C317C101F2G5TA
  • KEMET
  • CAP CER 100PF 1% 200V C0G RADIAL
  • Ceramic Capacitors
  • C317C101F2G5TA Datasheet
  • Radial
  • Cut Tape (CT)
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 2006
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is C317C101F2G5TA

KEMET Part Number C317C101F2G5TA（Ceramic Capacitors）, developed and manufactured by KEMET, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

C317C101F2G5TA is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

C317C101F2G5TA Specifications

  • Part NumberC317C101F2G5TA
  • CategoryCeramic Capacitors
  • ManufacturerKEMET
  • DescriptionCAP CER 100PF 1% 200V C0G RADIAL
  • PackageCut Tape (CT)
  • SeriesGoldMax 300 Comm C0G
  • FeaturesLow ESL
  • Operating Temperature-55°C ~ 125°C
  • Mounting TypeThrough Hole
  • Package / CaseRadial
  • ApplicationsGeneral Purpose
  • Tolerance±1%
  • Temperature CoefficientC0G, NP0
  • Size / Dimension0.150" L x 0.100" W (3.81mm x 2.54mm)
  • Voltage - Rated200V
  • Lead Spacing0.200\" (5.08mm)
  • Thickness (Max)-
  • Ratings-
  • Height - Seated (Max)0.200\" (5.08mm)
  • Capacitance100 pF
  • Lead StyleFormed Leads
  • Failure Rate-

Application of C317C101F2G5TA

Ceramic capacitors are widely used in various electronic devices and communication systems, especially where stable capacitance values and high frequency response are required. They are used for filtering, coupling, and bypass to ensure signal purity and stable system operation. In the field of computer science, ceramic capacitors play a crucial role in power supply filtering and smoothing voltage fluctuations. In addition, it is commonly used in engine control units, airbag trigger systems, and automotive entertainment systems in automotive electronics systems for precise timing control and signal processing. Medical devices such as electrocardiograph and ultrasonic diagnostic equipment also rely on ceramic capacitors to ensure circuit reliability and measurement accuracy.

C317C101F2G5TA Datasheet

C317C101F2G5TA Datasheet , Cut Tape (CT),GoldMax 300 Comm C0G,Low ESL,-55°C ~ 125°C,Through Hole,Radial,General Purpose,±1%,C0G, NP0,0.150" L x 0.100" W (3.81mm x 2.54mm),200V,0.200\" (5.08mm),0.200\" (5.08mm),100 pF,Formed Leads

C317C101F2G5TA Classification

Ceramic Capacitors

Ceramic capacitors, also known as ceramic dielectric capacitors or single stone capacitors, are capacitors that use ceramic materials as the dielectric. Its core components include two metal electrodes and a ceramic dielectric layer sandwiched in the middle. This design principle enables ceramic capacitors to have high stability, low loss, wide temperature range, and high frequency response characteristics. Ceramic capacitors can be classified into various types based on the different dielectric materials, including low temperature coefficient (NP0/C0G), high temperature coefficient (X7R/X5R), and high dielectric constant (Z5U/Y5V).

FAQ about Ceramic Capacitors

  • 1. Why do ceramic capacitors short?

    Overvoltage: Exceeding the rated voltage may cause internal breakdown.
    Mechanical damage: External impact or pressure.
    Manufacturing defects: Problems with the internal structure.

  • 2. Does the voltage of ceramic capacitors matter?

    Voltage ratings are critical to ensure safe operation. Using a capacitor below the rated voltage may cause premature failure; using a capacitor above the rated voltage may cause immediate damage.

  • 3. Should ceramic capacitors have continuity?

    A properly functioning ceramic capacitor should show a certain capacitance value between its pins, not completely on or off.
