DF04S2

ON Semiconductor DF04S2

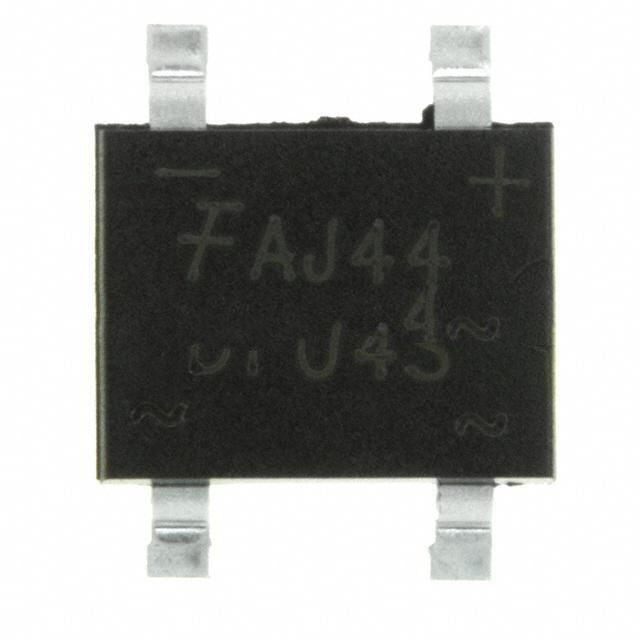

The picture is for reference only, please refer to the product specification

  • DF04S2
  • ON Semiconductor
  • BRIDGE RECT 1PH 400KV 2A 4SDIP
  • Diodes - Bridge Rectifiers
  • DF04S2 Datasheet
  • 4-SMD, Gull Wing
  • -Reel®
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 4150
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is DF04S2

ON Semiconductor Part Number DF04S2（Diodes - Bridge Rectifiers）, developed and manufactured by ON Semiconductor, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

DF04S2 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

DF04S2 Specifications

  • Part NumberDF04S2
  • CategoryDiodes - Bridge Rectifiers
  • ManufacturerON Semiconductor
  • DescriptionBRIDGE RECT 1PH 400KV 2A 4SDIP
  • Package-Reel®
  • Series-
  • Operating Temperature-55°C ~ 150°C (TJ)
  • Mounting TypeSurface Mount
  • Package / Case4-SMD, Gull Wing
  • Supplier Device Package4-SDIP
  • TechnologyStandard
  • Diode TypeSingle Phase
  • Voltage - Peak Reverse (Max)400 V
  • Current - Average Rectified (Io)2 A
  • Voltage - Forward (Vf) (Max) @ If1.1 V @ 2 A
  • Current - Reverse Leakage @ Vr3 µA @ 400 V

Application of DF04S2

Diodes - Bridge Rectifiers are used in a wide range of applications. In consumer electronics, such as televisions, computer power adapters, and personal electronic device chargers, bridge rectifiers are an integral part. In industrial applications, it is used in various control systems, drive systems, and automation equipment to provide reliable DC power. In addition, with the development of renewable energy technologies, such as solar photovoltaic systems and wind power systems, bridge rectifiers are also used to convert the output of these systems into a form of electricity that can be used directly by the grid or load. All in all, where there is a demand for stable and efficient DC power, bridge rectifiers can be found.

DF04S2 Datasheet

DF04S2 Datasheet , -Reel®,-55°C ~ 150°C (TJ),Surface Mount,4-SMD, Gull Wing,4-SDIP,Standard,Single Phase,400 V,2 A,1.1 V @ 2 A,3 µA @ 400 V

DF04S2 Classification

Diodes - Bridge Rectifiers

Bridge Rectifiers are circuit devices consisting of four diodes connected in a specific manner (usually in the shape of an "H" or "bridge"), whose main function is to convert alternating current (AC) to direct current (DC). This conversion process takes advantage of the diode's unidirectional conductivity, which allows the current to pass in only one direction. In a bridge rectifier, each diode is responsible for conducting the AC for one and a half cycles, thus ensuring that no matter how the polarity of the AC changes, there is a continuous current passing through the load, creating a continuous DC output.

FAQ about Diodes - Bridge Rectifiers

  • 1. What is the working principle of bridge rectifier?

    The bridge rectifier converts the input AC power into DC power through an arrangement of four diodes. Every half cycle, two diodes conduct, converting both positive and negative half waves of alternating current into direct current in the same direction.

  • 2. How to choose a suitable bridge rectifier?

    When choosing a bridge rectifier, the following factors need to be considered:

    Current capacity: Select the appropriate rectification current capacity according to the load demand.

    Voltage level: Ensure that the rectifier can withstand the maximum peak voltage of the input.

    Forward voltage drop: The lower the forward voltage drop, the higher the efficiency.

    Packaging form: Choose the packaging type that is suitable for the circuit board or heat dissipation requirements.

  • 3. What is the peak reverse voltage (PIV) of a bridge rectifier?

    Peak reverse voltage (PIV) is the maximum voltage that a bridge rectifier can withstand when reverse biased. When selecting a bridge rectifier, the PIV should be at least twice the peak voltage of the input AC power to prevent diode breakdown under reverse voltage.
