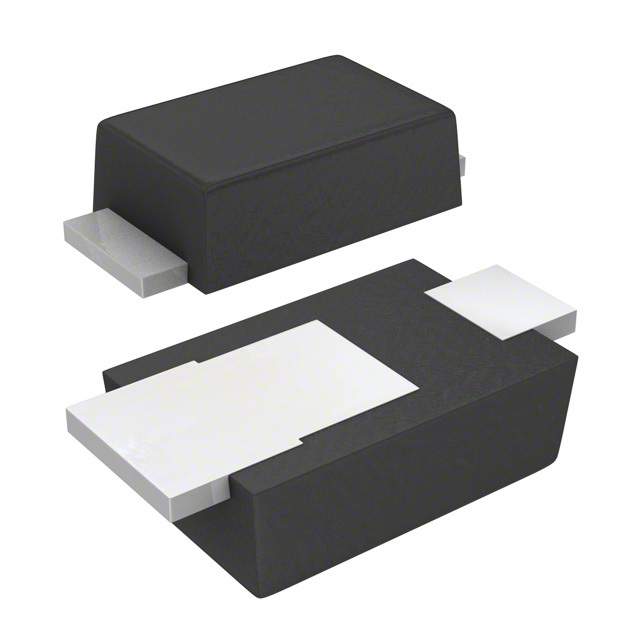

DFLS230LQ-7

Diodes Incorporated DFLS230LQ-7

The picture is for reference only, please refer to the product specification

  • DFLS230LQ-7
  • Diodes Incorporated
  • DIODE SCHOTTKY 30V 2A POWERDI123
  • Diodes - Rectifiers - Single
  • DFLS230LQ-7 Datasheet
  • POWERDI®123
  • Tape & Reel (TR)
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 3594
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is DFLS230LQ-7

Diodes Incorporated Part Number DFLS230LQ-7（Diodes - Rectifiers - Single）, developed and manufactured by Diodes Incorporated, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

DFLS230LQ-7 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

DFLS230LQ-7 Specifications

  • Part NumberDFLS230LQ-7
  • CategoryDiodes - Rectifiers - Single
  • ManufacturerDiodes Incorporated
  • DescriptionDIODE SCHOTTKY 30V 2A POWERDI123
  • PackageTape & Reel (TR)
  • SeriesAutomotive, AEC-Q101
  • Mounting TypeSurface Mount
  • Package / CasePOWERDI®123
  • Supplier Device PackagePowerDI™ 123
  • Diode TypeSchottky
  • Current - Average Rectified (Io)2A
  • Voltage - Forward (Vf) (Max) @ If420 mV @ 2 A
  • Current - Reverse Leakage @ Vr1 mA @ 30 V
  • Capacitance @ Vr, F76pF @ 10V, 1MHz
  • Voltage - DC Reverse (Vr) (Max)30 V
  • SpeedFast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr)-
  • Operating Temperature - Junction-40°C ~ 125°C

Application of DFLS230LQ-7

Rectifiers are used in an extremely wide range of applications, covering almost all situations where DC power is required. In terms of power supply equipment, rectifiers are widely used in power transformers, switching power supplies, etc., to provide stable DC power for various electronic equipment. In the field of lighting, with the popularity of new light sources such as LED, rectifier-single also plays an important role, it can convert alternating current into direct current to drive LED lights and other light-emitting devices, to achieve energy-efficient lighting effects. In addition, in many fields such as industrial automation, communication equipment, automotive electronics, medical equipment, rectifiers also play an irreplaceable role. Especially in the field of industrial automation, rectifiers - provide a stable DC power supply for motors, frequency converters and other equipment, ensuring the stable operation of the production line and efficient production.

DFLS230LQ-7 Datasheet

DFLS230LQ-7 Datasheet , Tape & Reel (TR),Automotive, AEC-Q101,Surface Mount,POWERDI®123,PowerDI™ 123,Schottky,2A,420 mV @ 2 A,1 mA @ 30 V,76pF @ 10V, 1MHz,30 V,Fast Recovery =< 500ns, > 200mA (Io),-40°C ~ 125°C

DFLS230LQ-7 Classification

Diodes - Rectifiers - Single

Rectifiers - Single refers to a standalone rectifier device, which usually contains one or several rectifying elements (such as diodes), and its core function is to convert alternating current (AC) to direct current (DC). Specifically, it takes advantage of the unidirectional conductivity of semiconductor diodes, allowing current to pass in only one direction, thus enabling the conversion from fluctuating alternating current to stable direct current.

FAQ about Diodes - Rectifiers - Single

  • 1. What is a single rectifier diode?

    A single rectifier diode is an electronic component used to convert alternating current (AC) to direct current (DC), typically used in power supplies, chargers, and other circuits that require DC power.

  • 2. What is a fast recovery diode?

    Fast recovery diode is a special type of rectifier diode with a short reverse recovery time, suitable for high-frequency power supplies and switch mode power supplies (SMPS) applications, reducing switching losses.

  • 3. How to identify the polarity of a single rectifier diode?

    Rectifying diodes usually have polarity markings, with the positive (anode) of the diode being &quot;+&quot; and the negative (cathode) being &quot;-&quot;. On the packaging of diodes, there is usually a circular mark on the cathode side indicating the direction of the diode.
