Cornell Dubilier Electronics (CDE) DMM6P22K-F

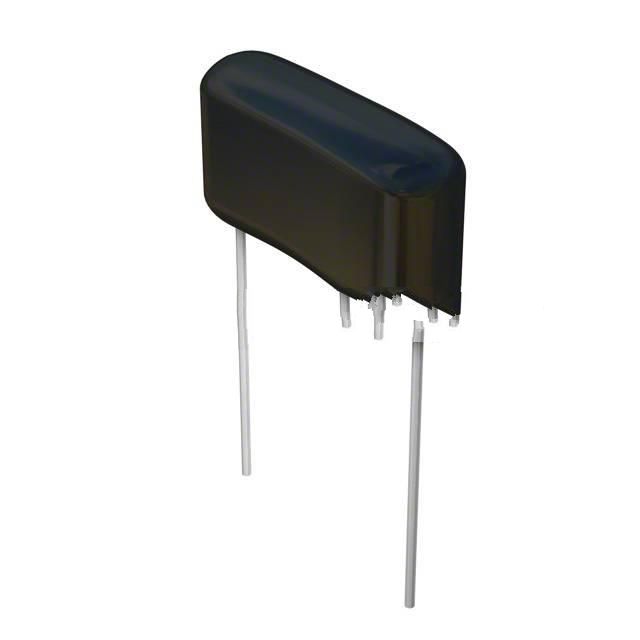

The picture is for reference only, please refer to the product specification
- DMM6P22K-F
- Cornell Dubilier Electronics (CDE)
- CAP FILM 0.22UF 10% 630VDC RAD
- Film Capacitors
- DMM6P22K-F Datasheet
- Radial
- Bulk
-
Lead free / RoHS Compliant - 10578
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is DMM6P22K-F
Cornell Dubilier Electronics (CDE) Part Number DMM6P22K-F（Film Capacitors）, developed and manufactured by Cornell Dubilier Electronics (CDE), distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
DMM6P22K-F is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
DMM6P22K-F Specifications
- Part NumberDMM6P22K-F
- CategoryFilm Capacitors
- ManufacturerCornell Dubilier Electronics (CDE)
- DescriptionCAP FILM 0.22UF 10% 630VDC RAD
- PackageBulk
- SeriesDMM
- Features-
- Operating Temperature-55°C ~ 125°C
- Mounting TypeThrough Hole
- Package / CaseRadial
- ApplicationsGeneral Purpose
- Tolerance±10%
- Size / Dimension1.024" L x 0.433" W (26.00mm x 11.00mm)
- TerminationPC Pins
- Voltage Rating - AC250V
- Voltage Rating - DC630V
- Lead Spacing0.886\" (22.50mm)
- Ratings-
- Height - Seated (Max)0.787\" (20.00mm)
- Capacitance0.22 µF
- ESR (Equivalent Series Resistance)-
- Dielectric MaterialPolyester, Metallized
Application of DMM6P22K-F
DMM6P22K-F Datasheet
DMM6P22K-F Datasheet , Bulk,DMM,-55°C ~ 125°C,Through Hole,Radial,General Purpose,±10%,1.024" L x 0.433" W (26.00mm x 11.00mm),PC Pins,250V,630V,0.886\" (22.50mm),0.787\" (20.00mm),0.22 µF,Polyester, Metallized
DMM6P22K-F Classification
Film Capacitors
FAQ about Film Capacitors
-
1. What are the uses of film capacitors?
High-frequency filtering, power decoupling, power noise bypass
The main uses of film capacitors include high-frequency filtering, power decoupling, power noise bypass, etc. In electronic devices, film capacitors are widely used in various circuits due to their high insulation impedance, wide frequency response and self-healing properties.
Specific application scenarios
High-frequency filtering: Film capacitors have excellent high-frequency insulation performance, and the capacitance and loss angle are independent of frequency in a large frequency range and change little with temperature, so they are often used in high-frequency filtering circuits.
Power decoupling: In car audio systems, film capacitors are used for power decoupling to ensure stable power supply and avoid noise caused by feedback generated by the power supply.
Power noise bypass: Film capacitors are also widely used for power noise bypass (reverse cross-connection) to reduce the impact of power noise on the circuit.
Different types of applications
CBB film capacitors: widely used in circuit boards because of their high insulation impedance and wide frequency response.
Organic film capacitors: Made of materials such as polypropylene film and polyester film, they have excellent performance, a wide variety of varieties, and a wide range of applications. They are suitable for a variety of electronic devices.
-
2. Are film capacitors better than electrolytic capacitors?
Not necessarily
Film capacitors and electrolytic capacitors each have their own advantages and disadvantages, and the specific choice depends on the application scenario.
Advantages of film capacitors
Non-polarity: Film capacitors are non-polar, and there is no need to distinguish between positive and negative poles, avoiding the risk of capacitor explosion due to reverse connection.
Long life: Film capacitors have significantly longer life and better stability.
Wide temperature range: Film capacitors have a wide operating temperature range, generally -40℃~+105℃/110℃, suitable for various ambient temperatures.
High withstand voltage: Film capacitors can withstand overvoltages higher than 1.5 times the rated voltage in a short period of time, and have strong withstand voltage.
Low loss: Film capacitors have low loss and are suitable for high-frequency circuits, especially for occasions requiring low loss and high-frequency applications.
Advantages of electrolytic capacitors
Large capacity: Electrolytic capacitors usually have large capacitance and are suitable for occasions requiring large amounts of energy storage.
Low cost: The cost of electrolytic capacitors is relatively low, suitable for occasions with strict cost requirements.
High energy density: Electrolytic capacitors are a strong choice when cost-effective, high-capacity energy storage is required, especially when maintaining DC output voltage during power outages.
-
3. What are the alternatives to film capacitors?
CL21 capacitors, MPB capacitors, CBB13, CBB81, MMKP82 capacitors
Alternatives to film capacitors mainly include CL21 capacitors, MPB capacitors, CBB13, CBB81 and MMKP82 capacitors. These alternatives have their own advantages and disadvantages in performance and applicable scenarios, and the specific choice depends on specific needs.
CL21 capacitors
CL21 capacitors and CBB22 capacitors can replace each other in applications such as filtering. CL21 capacitors are more stable than CBB22 capacitors under high-frequency conditions, so CL21 capacitors are more preferred in high-frequency circuits. However, CL21 capacitors are more expensive and perform better in high-frequency circuits.
MPB capacitors
MPB capacitors are boxed metallized polypropylene film capacitors with the same core as CBB22 capacitors, but with a plastic shell, which has better resistance to high temperature, moisture and sealing performance. MPB capacitors can replace CBB22 capacitors in high frequency, DC, AC and pulse high current applications, but their prices are relatively high.
CBB13, CBB81 and MMKP82 capacitors
These capacitors have a higher voltage resistance, up to 3000V, and are suitable for applications requiring higher voltages. However, they are also relatively expensive and larger in size.
