Panasonic Electronic Components ERZ-E10A112CS
The picture is for reference only, please refer to the product specification
- ERZ-E10A112CS
- Panasonic Electronic Components
- VARISTOR 1100V 4.5KA DISC 12.5MM
- TVS - Varistors, MOVs
- ERZ-E10A112CS Datasheet
- Disc 12.50mm
- Disc 12.50mm
-
Lead free / RoHS Compliant - 20423
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is ERZ-E10A112CS
Panasonic Electronic Components Part Number ERZ-E10A112CS（TVS - Varistors, MOVs）, developed and manufactured by Panasonic Electronic Components, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
ERZ-E10A112CS is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
ERZ-E10A112CS Specifications
- Part NumberERZ-E10A112CS
- CategoryTVS - Varistors, MOVs
- ManufacturerPanasonic Electronic Components
- DescriptionVARISTOR 1100V 4.5KA DISC 12.5MM
- PackageDisc 12.50mm
- SeriesZNR?
- Operating Temperature-40°C ~ 85°C (TA)
- Mounting TypeThrough Hole
- Package / CaseDisc 12.50mm
- Number of Circuits1
- Capacitance @ Frequency180pF @ 1kHz
- Varistor Voltage (Typ)1.1kV
- Current - Surge4.5kA
- Maximum DC Volts895V
- Varistor Voltage (Min)990V
- Varistor Voltage (Max)1.21kV
- Maximum AC Volts680V
- Energy196J
Application of ERZ-E10A112CS
ERZ-E10A112CS Datasheet
ERZ-E10A112CS Datasheet , Disc 12.50mm,ZNR?,-40°C ~ 85°C (TA),Through Hole,Disc 12.50mm,1,180pF @ 1kHz,1.1kV,4.5kA,895V,990V,1.21kV,680V,196J
ERZ-E10A112CS Classification
TVS - Varistors, MOVs
FAQ about TVS - Varistors, MOVs
-
1. What is the difference between TVS and varistors?
The main differences between TVS and varistors are their working principles, performance parameters, application scenarios, and prices.
Working Principle
TVS (Transient Voltage Suppressor): TVS forms a PN structure on a silicon-based material and uses the breakdown characteristics of the PN junction to achieve protection. When an overvoltage occurs in the circuit, the resistance value of the TVS changes rapidly, thereby protecting other components in the circuit.
Varistor: Varistors use the nonlinear resistance characteristics of materials such as zinc oxide to achieve overvoltage protection. When an overvoltage occurs in the circuit, the resistance value of the varistor also changes, thereby protecting the circuit.
Performance Parameters
Overvoltage resistance: TVS is usually more resistant to overvoltage than varistors and can withstand higher voltages and currents.
Response time: TVS usually has a shorter response time than varistors and can respond to overvoltage events in a shorter time.
Lifespan: TVS usually has a longer lifespan than varistors because the PN junction of TVS can self-recover after breakdown, while varistors usually break down after a breakdown.
-
2. What is the difference between varistors and MOVs?
There are some differences between varistors and MOVs (Metal Oxide Varistors) in terms of definition, characteristics, and applications.
Definition and Characteristics
Varistor (VDR/MOV): A varistor is a voltage-sensitive resistor whose resistance value changes with voltage. When an excessively high voltage appears in a circuit, the internal resistance of the varistor drops sharply and turns on quickly, protecting electronic components from surges. MOVs are usually made of zinc oxide and have the characteristics of large current flow, slow response speed, and large parasitic capacitance.
MOV: Specifically refers to metal oxide varistor, which is a type of varistor and is widely used in electronic circuits. Its characteristics include large current flow, slow response speed, and large parasitic capacitance.
-
3. What are Movs?
Movs(Move String) is an instruction cluster in assembly language, mainly used to copy strings. The Movs instruction cluster includes multiple variants for handling data movement operations of different lengths.
Basic Functions
The main function of the Movs instruction is to copy the data of the DSSI address to the ESDI address. Specifically:
MOVSB: Move one byte at a time.
MOVSW: Move one word (usually two bytes) at a time.
MOVSD: Move one double word (usually four bytes) at a time.
We are a professional PCB manufacturer who offers comprehensive PCB manufacturing services including: professional Ceramic PCB HDI PCB Heavy Copper PCB High-TG PCB High Speed PCB High Frequency PCB Metal Core PCB PCB fabrication and PCB assembly, providing fast turnaround prototypes for high-end products.
• Prompt Responsiveness
• Guaranteed Quality
• Global Access
• Competitive Market Price
• One-Stop support services of supply chain
Jinftry, Your most trustworthy component supplier, welcome to send us the inquiry, thank you!
Do you have any questions about ERZ-E10A112CS ?
Feel free to contact us:
ERZ-E10A112CS Related Products
VARISTOR 1100V 4.5KA DISC 12.5MM

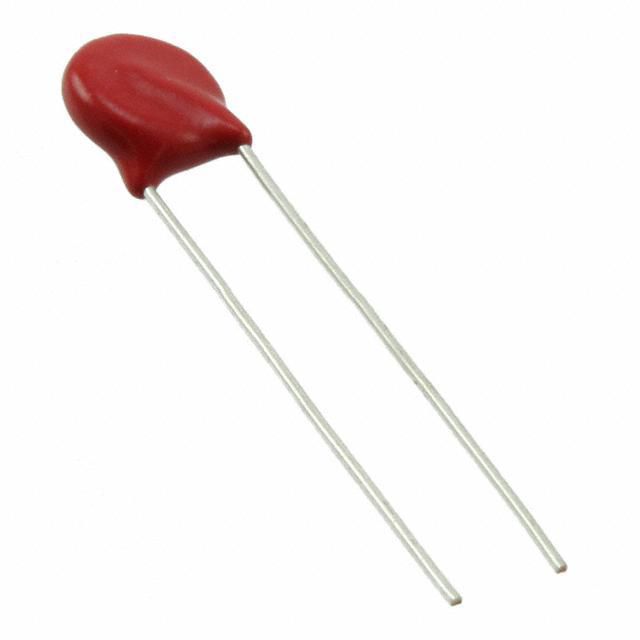

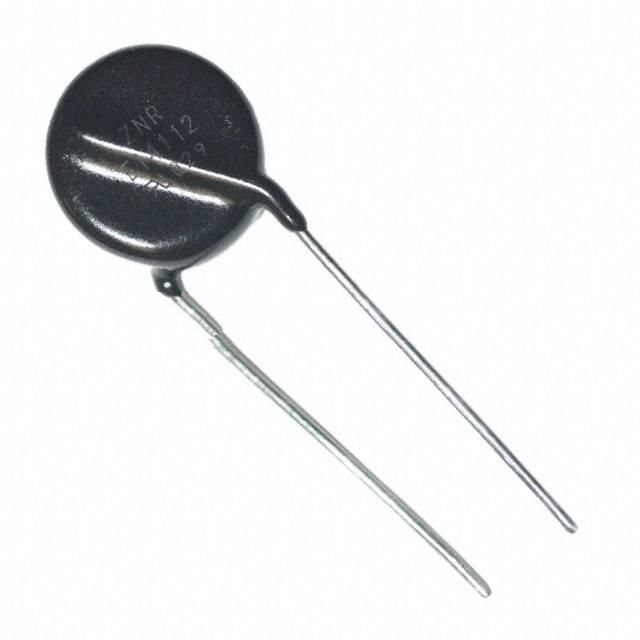

VARISTOR 910V 4.5KA DISC 12.50MM
