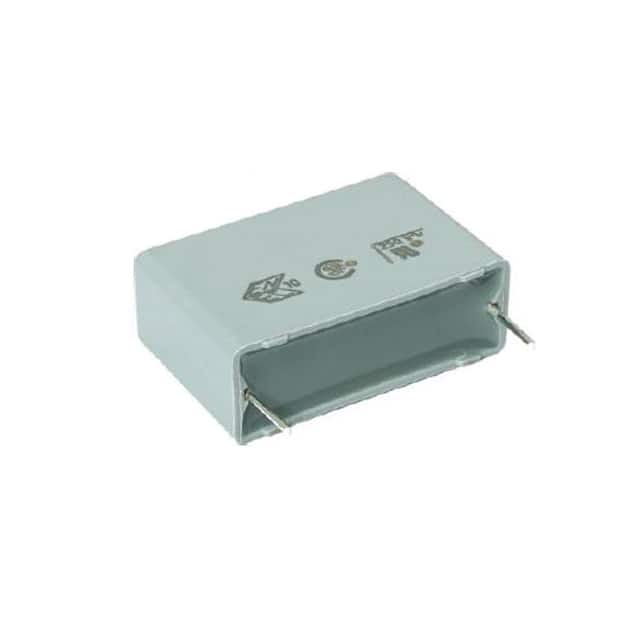

Vishay Beyschlag/Draloric/BC Components F17725102030
The picture is for reference only, please refer to the product specification
- F17725102030
- Vishay Beyschlag/Draloric/BC Components
- CAP FILM 1UF 10% 630VDC RADIAL
- Film Capacitors
- F17725102030 Datasheet
- Radial
- Bulk
-
Lead free / RoHS Compliant - 4510
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is F17725102030
Vishay Beyschlag/Draloric/BC Components Part Number F17725102030（Film Capacitors）, developed and manufactured by Vishay Beyschlag/Draloric/BC Components, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
F17725102030 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
F17725102030 Specifications
- Part NumberF17725102030
- CategoryFilm Capacitors
- ManufacturerVishay Beyschlag/Draloric/BC Components
- DescriptionCAP FILM 1UF 10% 630VDC RADIAL
- PackageBulk
- SeriesF1772
- Features-
- Operating Temperature-40°C ~ 110°C
- Mounting TypeThrough Hole
- Package / CaseRadial
- ApplicationsEMI, RFI Suppression
- Tolerance±10%
- Size / Dimension1.220" L x 0.591" W (31.00mm x 15.00mm)
- TerminationPC Pins
- Voltage Rating - AC310V
- Voltage Rating - DC630V
- Lead Spacing1.083\" (27.50mm)
- RatingsX2
- Height - Seated (Max)0.984\" (25.00mm)
- Capacitance1 µF
- ESR (Equivalent Series Resistance)-
- Dielectric MaterialPolyester, Metallized
Application of F17725102030
F17725102030 Datasheet
F17725102030 Datasheet , Bulk,F1772,-40°C ~ 110°C,Through Hole,Radial,EMI, RFI Suppression,±10%,1.220" L x 0.591" W (31.00mm x 15.00mm),PC Pins,310V,630V,1.083\" (27.50mm),X2,0.984\" (25.00mm),1 µF,Polyester, Metallized
F17725102030 Classification
Film Capacitors
FAQ about Film Capacitors
-
1. What are the uses of power film capacitors?
Power film capacitors are widely used in power systems, communication equipment, automotive electronics and household appliances.
Power system
In power systems, power film capacitors are mainly used in high-voltage direct current transmission (HVDC) and reactive power compensation devices. HVDC transmission has the advantages of long transmission distance, low loss and small impact on the environment. Power film capacitors can effectively improve the voltage stability of the system, reduce voltage fluctuations and improve the quality of electric energy. In addition, power film capacitors can also be used in reactive power compensation devices. By adjusting the reactive power in the power grid, the power factor of the power grid can be improved, line loss can be reduced and the utilization rate of electric energy can be improved.
Communication equipment
In communication equipment, power film capacitors are mainly used in devices such as filters, couplers and isolators. Filters are key components in communication equipment, which are used to eliminate noise and interference in signals. Power film capacitors are small in size, light in weight and have good frequency characteristics, which can effectively improve the performance of filters. Couplers and isolators are used for signal transmission and isolation. Power film capacitors can achieve high-frequency and high-isolation coupling and isolation functions to meet the high-performance requirements of communication equipment.
Automotive electronics
In the field of automotive electronics, power film capacitors are used in electronic control units (ECUs), motor controllers, and battery management systems. ECUs are the core components of automotive electronic systems and are responsible for controlling various functions of the car. Power film capacitors can improve their reliability and stability. Motor controllers are key components of electric vehicles and are responsible for controlling the speed and torque of the motor. Power film capacitors can achieve efficient and high-precision motor control functions. Battery management systems are responsible for monitoring and managing battery status. Power film capacitors can improve their accuracy and stability.
Household appliances
In the field of household appliances, power film capacitors are mainly used in home appliances such as air conditioners, refrigerators, and washing machines. These home appliances usually require high power and high-frequency applications. The high-frequency filtering and bypass characteristics of power film capacitors make them perform well in these applications. -
2. Will the performance of film capacitors degrade?
Yes
The performance of film capacitors will degrade. The performance degradation of film capacitors is mainly due to their internal structure and material properties.
Reasons for performance degradation
Metal plating oxidation: During the capacitor manufacturing process, there is a trace amount of air between the film layers, which may be ionized under the action of the electric field to produce ozone. Ozone is a strong oxidant that oxidizes the metal plating to produce non-conductive metal oxides, resulting in a reduction in the plate area and a decrease in the capacitor capacity.
Humid air: During the winding process of film capacitors, if the workshop environment is not properly controlled, there will be a large amount of humid air. These humid air will produce air ionization reactions when the capacitor is working, generating ozone, which further causes the capacitor capacity to decay.
Poor quality materials: The film materials used are of poor quality, such as uneven evaporation and defects on the film, which will cause the capacitor capacity to decay.
-
3. What is the difference between foil capacitors and film capacitors?
Electrode materials, structure, and application areas
The main difference between foil capacitors and film capacitors lies in electrode materials, structures, and application areas.
Electrode materials and structures
Foil capacitors: Foil capacitors usually use metal foil as electrodes. This electrode is formed on a plastic film by vacuum evaporation, which is called a metallized film. This structure can save the thickness of the electrode foil, thereby reducing the volume of the capacitor and making it more miniaturized.
Film capacitors: Film capacitors use plastic films as dielectrics. Common plastic films include polyethylene, polypropylene, polystyrene or polycarbonate. These films overlap at both ends and are rolled into a cylinder to form a capacitor.
