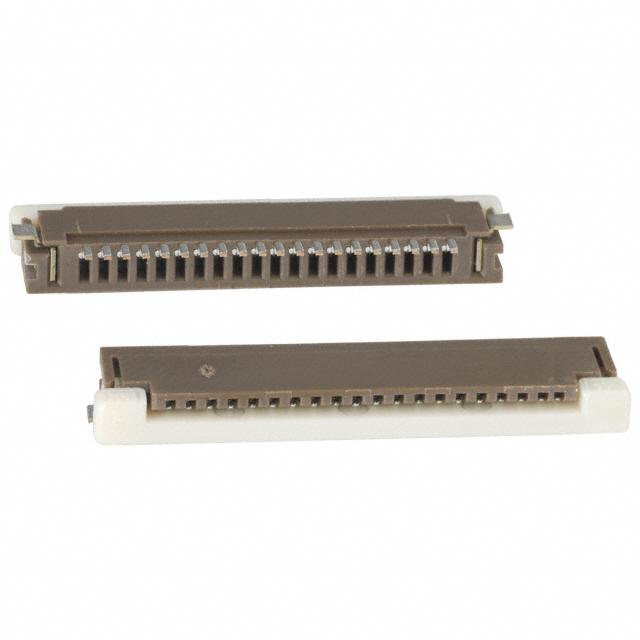

The picture is for reference only, please refer to the product specification
- FH10A-12S-1SH
- Hirose Electric Co Ltd
- CONN FFC FPC TOP 12POS 1MM R/A
- FFC, FPC (Flat Flexible) Connectors
- FH10A-12S-1SH Datasheet
- -
- -
-
Lead free / RoHS Compliant - 18360
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is FH10A-12S-1SH
Hirose Electric Co Ltd Part Number FH10A-12S-1SH（FFC, FPC (Flat Flexible) Connectors）, developed and manufactured by Hirose Electric Co Ltd, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
FH10A-12S-1SH is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
FH10A-12S-1SH Specifications
- Part NumberFH10A-12S-1SH
- CategoryFFC, FPC (Flat Flexible) Connectors
- ManufacturerHirose Electric Co Ltd
- DescriptionCONN FFC FPC TOP 12POS 1MM R/A
- Package-
- SeriesFH10A
- FeaturesZero Insertion Force (ZIF)
- Operating Temperature-55°C ~ 85°C
- Mounting TypeSurface Mount, Right Angle
- TerminationSolder
- Contact MaterialPhosphor Bronze
- Contact FinishSolder Plating
- Flat Flex TypeFFC, FPC
- Connector/Contact TypeContacts, Top
- Number of Positions12
- Pitch0.039" (1.00mm)
- FFC, FCB Thickness0.30mm
- Height Above Board0.118" (3.00mm)
- Locking FeatureSlide Lock
- Cable End TypeStraight
- Housing MaterialPolybutylene Terephthalate (PBT)
- Voltage Rating50V
- Material Flammability RatingUL94 V-0
Application of FH10A-12S-1SH
FH10A-12S-1SH Datasheet
FH10A-12S-1SH Datasheet , FH10A,Zero Insertion Force (ZIF),-55°C ~ 85°C,Surface Mount, Right Angle,Solder,Phosphor Bronze,Solder Plating,FFC, FPC,Contacts, Top,12,0.039" (1.00mm),0.30mm,0.118" (3.00mm),Slide
