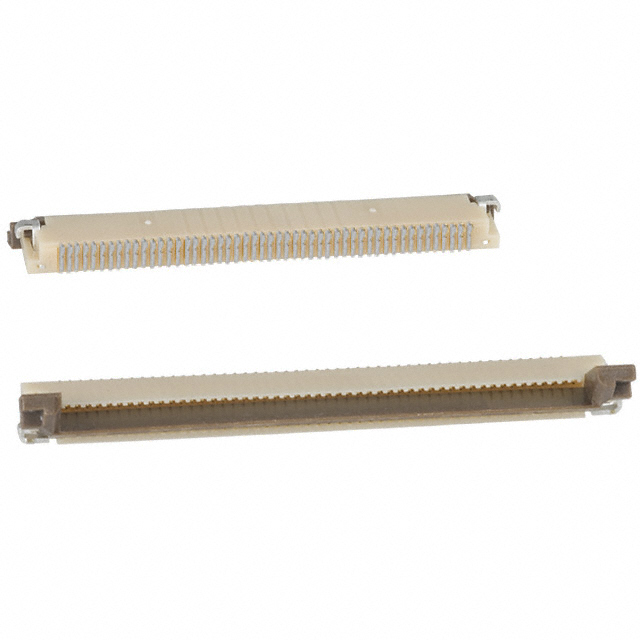

FH12A-50S-0.5SH

Hirose Electric Co Ltd FH12A-50S-0.5SH

The picture is for reference only, please refer to the product specification

  • FH12A-50S-0.5SH
  • Hirose Electric Co Ltd
  • CONN FFC TOP 50POS 0.50MM R/A
  • FFC, FPC (Flat Flexible) Connectors
  • FH12A-50S-0.5SH Datasheet
  • -
  • -
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 1417
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is FH12A-50S-0.5SH

Hirose Electric Co Ltd Part Number FH12A-50S-0.5SH（FFC, FPC (Flat Flexible) Connectors）, developed and manufactured by Hirose Electric Co Ltd, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

FH12A-50S-0.5SH is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

FH12A-50S-0.5SH Specifications

  • Part NumberFH12A-50S-0.5SH
  • CategoryFFC, FPC (Flat Flexible) Connectors
  • ManufacturerHirose Electric Co Ltd
  • DescriptionCONN FFC TOP 50POS 0.50MM R/A
  • Package-
  • SeriesFH12
  • FeaturesZero Insertion Force (ZIF)
  • Operating Temperature-40°C ~ 85°C
  • Mounting TypeSurface Mount, Right Angle
  • TerminationSolder
  • Contact MaterialPhosphor Bronze
  • Contact FinishTin-Lead
  • Flat Flex TypeFFC, FPC
  • Connector/Contact TypeContacts, Top
  • Number of Positions50
  • Pitch0.020" (0.50mm)
  • FFC, FCB Thickness0.30mm
  • Height Above Board0.079" (2.00mm)
  • Locking FeatureFlip Lock
  • Cable End TypeStraight
  • Housing MaterialPolyamide (PA), Nylon
  • Voltage Rating50V
  • Material Flammability RatingUL94 V-0
  • Actuator MaterialPolyphenylene Sulfide (PPS)

Application of FH12A-50S-0.5SH

FFC, FPC (Flat Flexible) Connectors) play an important role in several high-tech industries and applications due to their unique physical properties and high reliability. They are commonly found in consumer electronics, such as smartphones and tablets, to connect screens, cameras and other internal components; In the field of automotive electronics, FFC/FPC connectors are used for line connection of dashboards, navigation systems and entertainment systems; In medical devices, they are used in portable or wearable devices that require highly accurate signal transmission; In addition, FFC/FPC is also widely used in industrial automation, aerospace, military equipment, test and measurement equipment and computer peripherals, etc. These applications have strict requirements for the size, weight and signal quality of connectors.

FH12A-50S-0.5SH Datasheet

FH12A-50S-0.5SH Datasheet , FH12,Zero Insertion Force (ZIF),-40°C ~ 85°C,Surface Mount, Right Angle,Solder,Phosphor Bronze,Tin-Lead,FFC, FPC,Contacts, Top,50,0.020" (0.50mm),0.30mm,0.079" (2.00mm),Flip Lock,Straight,Polyamide (PA)

FH12A-50S-0.5SH Classification

FFC, FPC (Flat Flexible) Connectors

FFC, FPC (Flat Flexible) Connectors are high-density, lightweight electronic connection components designed specifically for precision electronic devices in confined spaces. This connector is composed of multiple layers of polyester film and embedded with copper foil conductive paths, which can achieve efficient transmission of electronic signals. FFC/FPC connectors adopt a flat ribbon structure, usually with connector interfaces at one or both ends, which can be easily connected to circuit boards or other electronic components. Its design principle is based on flexible circuit technology, which enables FFC/FPC to maintain signal stability and integrity in complex environments, while possessing good anti vibration and anti impact performance.
