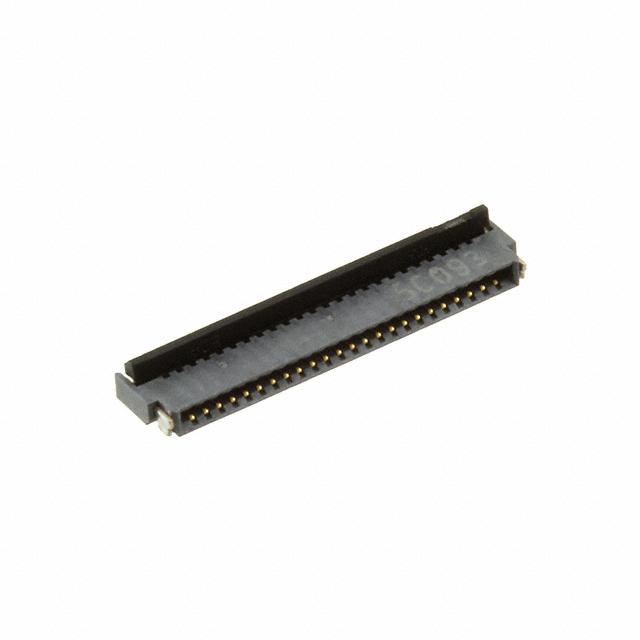

Hirose Electric Co Ltd FH34SRJ-24S-0.5SH(99)
The picture is for reference only, please refer to the product specification
- FH34SRJ-24S-0.5SH(99)
- Hirose Electric Co Ltd
- CONN FPC/FFC 24POS .5MM
- FFC, FPC (Flat Flexible) Connectors
- FH34SRJ-24S-0.5SH(99) Datasheet
- -
- -
-
Lead free / RoHS Compliant - 3735
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is FH34SRJ-24S-0.5SH(99)
Hirose Electric Co Ltd Part Number FH34SRJ-24S-0.5SH(99)（FFC, FPC (Flat Flexible) Connectors）, developed and manufactured by Hirose Electric Co Ltd, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
FH34SRJ-24S-0.5SH(99) is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
FH34SRJ-24S-0.5SH(99) Specifications
- Part NumberFH34SRJ-24S-0.5SH(99)
- CategoryFFC, FPC (Flat Flexible) Connectors
- ManufacturerHirose Electric Co Ltd
- DescriptionCONN FPC/FFC 24POS .5MM
- Package-
- SeriesFH34SRJ
- FeaturesZero Insertion Force (ZIF)
- Operating Temperature-55°C ~ 85°C
- Mounting TypeSurface Mount, Right Angle
- TerminationSolder
- Contact MaterialPhosphor Bronze
- Contact FinishGold
- Flat Flex TypeFFC, FPC
- Connector/Contact TypeContacts, Top and Bottom
- Number of Positions24
- Pitch0.020" (0.50mm)
- FFC, FCB Thickness0.30mm
- Height Above Board0.039" (1.00mm)
- Locking FeatureRotary Lock, Backlock
- Cable End TypeTapered
- Housing MaterialLiquid Crystal Polymer (LCP), Halogen Free
- Voltage Rating50V
- Material Flammability RatingUL94 V-0
- Actuator MaterialPolyamide (PA), Nylon
Application of FH34SRJ-24S-0.5SH(99)
FH34SRJ-24S-0.5SH(99) Datasheet
FH34SRJ-24S-0.5SH(99) Datasheet , FH34SRJ,Zero Insertion Force (ZIF),-55°C ~ 85°C,Surface Mount, Right Angle,Solder,Phosphor Bronze,Gold,FFC, FPC,Contacts, Top and Bottom,24,0.020" (0.50mm),0.30mm,0.039" (1.00mm),Rotary Lock
FH34SRJ-24S-0.5SH(99) Classification
FFC, FPC (Flat Flexible) Connectors
