FK28C0G1H100D

TDK Corporation FK28C0G1H100D

The picture is for reference only, please refer to the product specification

  • FK28C0G1H100D
  • TDK Corporation
  • CAP CER 10PF 50V C0G RADIAL
  • Ceramic Capacitors
  • FK28C0G1H100D Datasheet
  • Radial
  • Bulk
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 14538
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is FK28C0G1H100D

TDK Corporation Part Number FK28C0G1H100D（Ceramic Capacitors）, developed and manufactured by TDK Corporation, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

FK28C0G1H100D is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

FK28C0G1H100D Specifications

  • Part NumberFK28C0G1H100D
  • CategoryCeramic Capacitors
  • ManufacturerTDK Corporation
  • DescriptionCAP CER 10PF 50V C0G RADIAL
  • PackageBulk
  • SeriesFK
  • Features-
  • Operating Temperature-55°C ~ 125°C
  • Mounting TypeThrough Hole
  • Package / CaseRadial
  • ApplicationsGeneral Purpose
  • Tolerance±0.5pF
  • Temperature CoefficientC0G, NP0
  • Size / Dimension0.157" L x 0.098" W (4.00mm x 2.50mm)
  • Voltage - Rated50V
  • Lead Spacing0.197\" (5.00mm)
  • Thickness (Max)-
  • Ratings-
  • Height - Seated (Max)0.217\" (5.50mm)
  • Capacitance10 pF
  • Lead StyleFormed Leads - Kinked
  • Failure Rate-

Application of FK28C0G1H100D

Ceramic capacitors are widely used in various electronic devices and communication systems, especially where stable capacitance values and high frequency response are required. They are used for filtering, coupling, and bypass to ensure signal purity and stable system operation. In the field of computer science, ceramic capacitors play a crucial role in power supply filtering and smoothing voltage fluctuations. In addition, it is commonly used in engine control units, airbag trigger systems, and automotive entertainment systems in automotive electronics systems for precise timing control and signal processing. Medical devices such as electrocardiograph and ultrasonic diagnostic equipment also rely on ceramic capacitors to ensure circuit reliability and measurement accuracy.

FK28C0G1H100D Datasheet

FK28C0G1H100D Datasheet , Bulk,FK,-55°C ~ 125°C,Through Hole,Radial,General Purpose,±0.5pF,C0G, NP0,0.157" L x 0.098" W (4.00mm x 2.50mm),50V,0.197\" (5.00mm),0.217\" (5.50mm),10 pF,Formed Leads - Kinked

FK28C0G1H100D Classification

Ceramic Capacitors

Ceramic capacitors, also known as ceramic dielectric capacitors or single stone capacitors, are capacitors that use ceramic materials as the dielectric. Its core components include two metal electrodes and a ceramic dielectric layer sandwiched in the middle. This design principle enables ceramic capacitors to have high stability, low loss, wide temperature range, and high frequency response characteristics. Ceramic capacitors can be classified into various types based on the different dielectric materials, including low temperature coefficient (NP0/C0G), high temperature coefficient (X7R/X5R), and high dielectric constant (Z5U/Y5V).

FAQ about Ceramic Capacitors

  • 1. Is ceramic capacitor AC or DC?

    Ceramic capacitors can be used in both AC and DC circuits. They have no polarity, so they can be installed at will.

  • 2. Why do ceramic capacitors short?

    Overvoltage: Exceeding the rated voltage may cause internal breakdown.
    Mechanical damage: External impact or pressure.
    Manufacturing defects: Problems with the internal structure.

  • 3. What is the difference between Class 1 and Class 2 ceramic capacitors?

    Class 1: has high accuracy and stable temperature coefficient, suitable for precision circuits.
    Class 2: has higher capacitance value, but larger temperature coefficient and tolerance, suitable for general applications.

We are a professional PCB manufacturer who offers comprehensive PCB manufacturing services including: professional Ceramic PCB HDI PCB Heavy Copper PCB High-TG PCB High Speed PCB High Frequency PCB Metal Core PCB PCB fabrication and PCB assembly, providing fast turnaround prototypes for high-end products.

• Prompt Responsiveness

• Guaranteed Quality

• Global Access

• Competitive Market Price

• One-Stop support services of supply chain

Jinftry, Your most trustworthy component supplier, welcome to send us the inquiry, thank you!

Do you have any questions about FK28C0G1H100D ?
Feel free to contact us:

+86-755-28503874
+8615019224070, annies65, +8615118125813
568248857, 827259012, 316249462
+8615019224070, +8615118118839, +8615118125813
( Email first will be appreciative )

Customer reviews

Post your comment

TDK Corporation
TDK Corporation
TDK Corporation is an electronic materials and component manufacturing company.
In 1935, TDK Corporation was founded in Tokyo, Japan. The company's products mainly include passive components, sensors, magnetic materials, power and energy devices, acoustic...
FK28C0G1H470J
FK28C0G1H470J

CAP CER 47PF 50V C0G RADIAL

FK28X7R1H223K
FK28X7R1H223K

CAP CER 47PF 50V C0G RADIAL

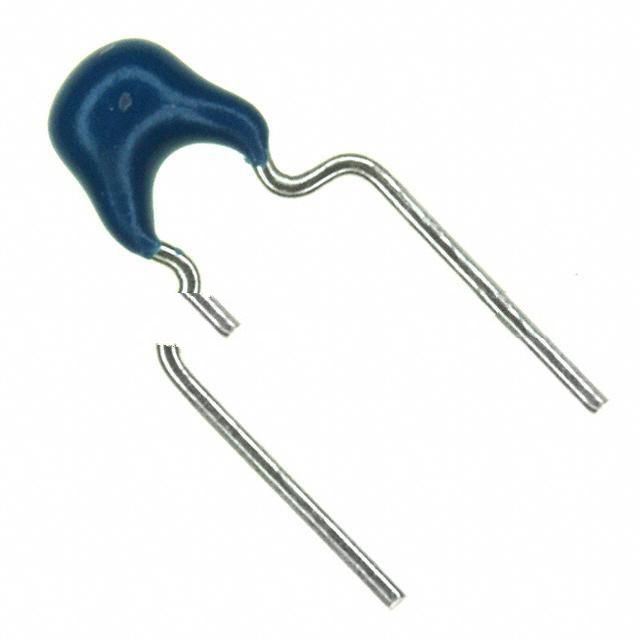

FK28X7R1H102K
