GA342QR7GD471KW01L

Murata Electronics GA342QR7GD471KW01L

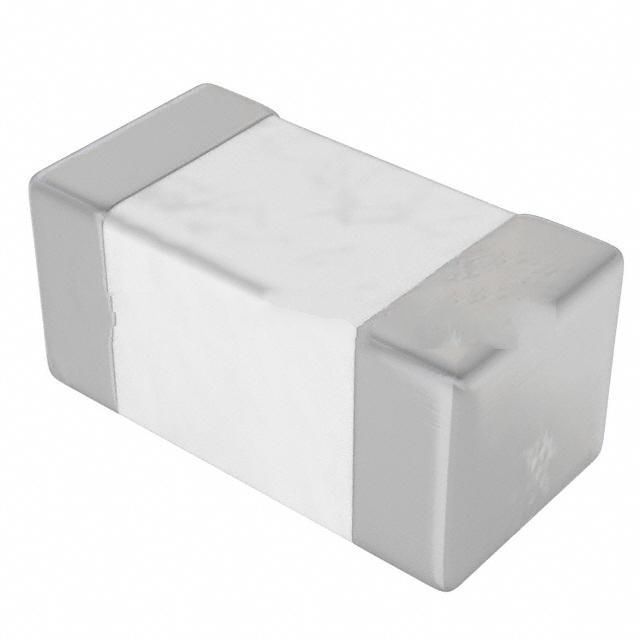

The picture is for reference only, please refer to the product specification

  • GA342QR7GD471KW01L
  • Murata Electronics
  • CAP CER 470PF 250VAC X7R 1808
  • Ceramic Capacitors
  • GA342QR7GD471KW01L Datasheet
  • 1808 (4520 Metric)
  • Cut Tape (CT)
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 2270
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is GA342QR7GD471KW01L

Murata Electronics Part Number GA342QR7GD471KW01L（Ceramic Capacitors）, developed and manufactured by Murata Electronics, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

GA342QR7GD471KW01L is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

GA342QR7GD471KW01L Specifications

  • Part NumberGA342QR7GD471KW01L
  • CategoryCeramic Capacitors
  • ManufacturerMurata Electronics
  • DescriptionCAP CER 470PF 250VAC X7R 1808
  • PackageCut Tape (CT)
  • SeriesGA3
  • Features-
  • Operating Temperature-55°C ~ 125°C
  • Mounting TypeSurface Mount, MLCC
  • Package / Case1808 (4520 Metric)
  • ApplicationsSafety
  • Tolerance±10%
  • Temperature CoefficientX7R
  • Size / Dimension0.177" L x 0.079" W (4.50mm x 2.00mm)
  • Voltage - Rated250VAC
  • Lead Spacing-
  • Thickness (Max)0.059\" (1.50mm)
  • RatingsY3
  • Height - Seated (Max)-
  • Capacitance470 pF
  • Lead Style-
  • Failure Rate-

Application of GA342QR7GD471KW01L

Ceramic capacitors are widely used in various electronic devices and communication systems, especially where stable capacitance values and high frequency response are required. They are used for filtering, coupling, and bypass to ensure signal purity and stable system operation. In the field of computer science, ceramic capacitors play a crucial role in power supply filtering and smoothing voltage fluctuations. In addition, it is commonly used in engine control units, airbag trigger systems, and automotive entertainment systems in automotive electronics systems for precise timing control and signal processing. Medical devices such as electrocardiograph and ultrasonic diagnostic equipment also rely on ceramic capacitors to ensure circuit reliability and measurement accuracy.

GA342QR7GD471KW01L Datasheet

GA342QR7GD471KW01L Datasheet , Cut Tape (CT),GA3,-55°C ~ 125°C,Surface Mount, MLCC,1808 (4520 Metric),Safety,±10%,X7R,0.177" L x 0.079" W (4.50mm x 2.00mm),250VAC,0.059\" (1.50mm),Y3,470 pF

GA342QR7GD471KW01L Classification

Ceramic Capacitors

Ceramic capacitors, also known as ceramic dielectric capacitors or single stone capacitors, are capacitors that use ceramic materials as the dielectric. Its core components include two metal electrodes and a ceramic dielectric layer sandwiched in the middle. This design principle enables ceramic capacitors to have high stability, low loss, wide temperature range, and high frequency response characteristics. Ceramic capacitors can be classified into various types based on the different dielectric materials, including low temperature coefficient (NP0/C0G), high temperature coefficient (X7R/X5R), and high dielectric constant (Z5U/Y5V).

FAQ about Ceramic Capacitors

  • 1. What is the difference between ceramic capacitors and electrolytic capacitors?

    Polarity: Ceramic capacitors are non-polar, while electrolytic capacitors are polar.
    Capacity range: Electrolytic capacitors generally offer larger capacitance values.
    Stability: Ceramic capacitors are more stable, especially when the temperature changes.
    Lifespan: Ceramic capacitors have a longer lifespan because there is no liquid electrolyte to dry out.

  • 2. Why are mica capacitors so expensive?

    Mica capacitors are expensive because of their excellent electrical properties (such as very low dissipation factor and stable temperature coefficient) and their high production costs.

  • 3. What is the difference between Class 1 and Class 2 ceramic capacitors?

    Class 1: has high accuracy and stable temperature coefficient, suitable for precision circuits.
    Class 2: has higher capacitance value, but larger temperature coefficient and tolerance, suitable for general applications.

We are a professional PCB manufacturer who offers comprehensive PCB manufacturing services including: professional Ceramic PCB HDI PCB Heavy Copper PCB High-TG PCB High Speed PCB High Frequency PCB Metal Core PCB PCB fabrication and PCB assembly, providing fast turnaround prototypes for high-end products.

• Prompt Responsiveness

• Guaranteed Quality

• Global Access

• Competitive Market Price

• One-Stop support services of supply chain

Jinftry, Your most trustworthy component supplier, welcome to send us the inquiry, thank you!

Do you have any questions about GA342QR7GD471KW01L ?
Feel free to contact us:

+86-755-28503874
+8615019224070, annies65, +8615118125813
568248857, 827259012, 316249462
+8615019224070, +8615118118839, +8615118125813
( Email first will be appreciative )

Customer reviews

Post your comment

Murata Electronics
Murata Electronics
Founded in 1972, Murata Electronics is a global electronic component manufacturer under the Murata Group in Japan. The company is primarily committed to providing customers with high-quality electronic components and solutions. Murata Electronics' product...

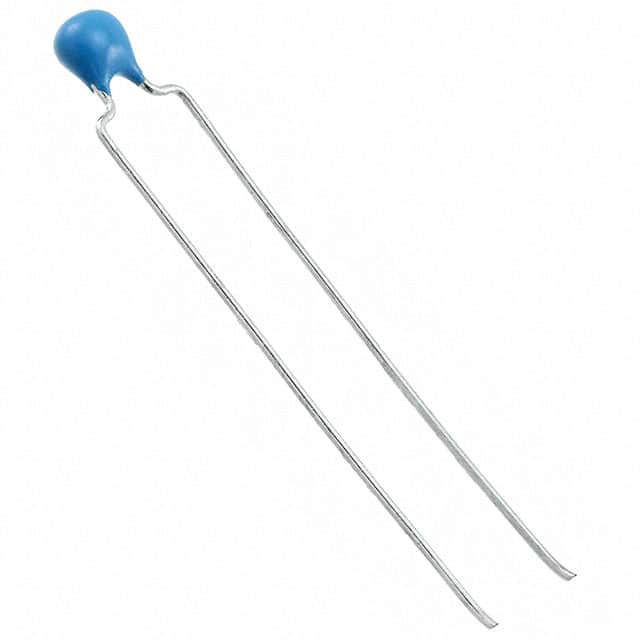

RDE5C1H123J1M1H03A
