GRM21B7U1A683JA01L

Murata Electronics GRM21B7U1A683JA01L

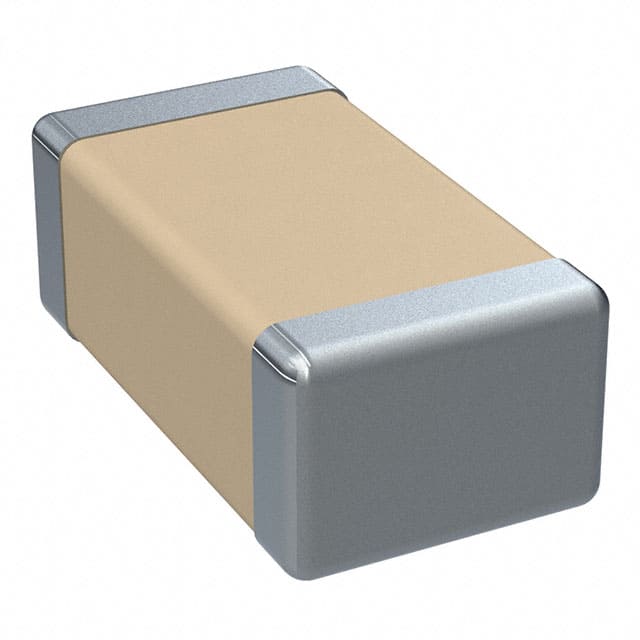

The picture is for reference only, please refer to the product specification

  • GRM21B7U1A683JA01L
  • Murata Electronics
  • CAP CER 0.068UF 10V U2J 0805
  • Ceramic Capacitors
  • GRM21B7U1A683JA01L Datasheet
  • 0805 (2012 Metric)
  • Cut Tape (CT)
  • Lead free / RoHS CompliantLead free / RoHS Compliant
  • 1559
  • Spot Inventory / Athorized Dstributor / Factory Excess Stock
  • 1 year quality assurance 》
  • Click to get rates
Delivery Services:
Payment Information
Payment Methods:
Shipping Information

What is GRM21B7U1A683JA01L

Murata Electronics Part Number GRM21B7U1A683JA01L（Ceramic Capacitors）, developed and manufactured by Murata Electronics, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.

GRM21B7U1A683JA01L is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.

GRM21B7U1A683JA01L Specifications

  • Part NumberGRM21B7U1A683JA01L
  • CategoryCeramic Capacitors
  • ManufacturerMurata Electronics
  • DescriptionCAP CER 0.068UF 10V U2J 0805
  • PackageCut Tape (CT)
  • SeriesGRM
  • Features-
  • Operating Temperature-55°C ~ 125°C
  • Mounting TypeSurface Mount, MLCC
  • Package / Case0805 (2012 Metric)
  • ApplicationsGeneral Purpose
  • Tolerance±5%
  • Temperature CoefficientU2J
  • Size / Dimension0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Voltage - Rated10V
  • Lead Spacing-
  • Thickness (Max)0.053\" (1.35mm)
  • Ratings-
  • Height - Seated (Max)-
  • Capacitance0.068 µF
  • Lead Style-
  • Failure Rate-

Application of GRM21B7U1A683JA01L

Ceramic capacitors are widely used in various electronic devices and communication systems, especially where stable capacitance values and high frequency response are required. They are used for filtering, coupling, and bypass to ensure signal purity and stable system operation. In the field of computer science, ceramic capacitors play a crucial role in power supply filtering and smoothing voltage fluctuations. In addition, it is commonly used in engine control units, airbag trigger systems, and automotive entertainment systems in automotive electronics systems for precise timing control and signal processing. Medical devices such as electrocardiograph and ultrasonic diagnostic equipment also rely on ceramic capacitors to ensure circuit reliability and measurement accuracy.

GRM21B7U1A683JA01L Datasheet

GRM21B7U1A683JA01L Datasheet , Cut Tape (CT),GRM,-55°C ~ 125°C,Surface Mount, MLCC,0805 (2012 Metric),General Purpose,±5%,U2J,0.079" L x 0.049" W (2.00mm x 1.25mm),10V,0.053\" (1.35mm),0.068 µF

GRM21B7U1A683JA01L Classification

Ceramic Capacitors

Ceramic capacitors, also known as ceramic dielectric capacitors or single stone capacitors, are capacitors that use ceramic materials as the dielectric. Its core components include two metal electrodes and a ceramic dielectric layer sandwiched in the middle. This design principle enables ceramic capacitors to have high stability, low loss, wide temperature range, and high frequency response characteristics. Ceramic capacitors can be classified into various types based on the different dielectric materials, including low temperature coefficient (NP0/C0G), high temperature coefficient (X7R/X5R), and high dielectric constant (Z5U/Y5V).

FAQ about Ceramic Capacitors

  • 1. What are ceramic capacitors used for?

    Ceramic capacitors are widely used in various electronic devices, mainly for:

    Coupling and decoupling: used in circuits to isolate DC signals while transmitting AC signals.
    Filtering: remove noise from the power supply or smooth the output voltage.
    Resonant circuit: such as oscillators in radio frequency (RF) circuits.
    Temperature compensation: some types of ceramic capacitors have temperature coefficients that can be used to stabilize circuit performance.
    Bypass: provide a low impedance path for high-frequency signals, thereby reducing the impact on other parts.

  • 2. What is the difference between ceramic capacitors and electrolytic capacitors?

    Polarity: Ceramic capacitors are non-polar, while electrolytic capacitors are polar.
    Capacity range: Electrolytic capacitors generally offer larger capacitance values.
    Stability: Ceramic capacitors are more stable, especially when the temperature changes.
    Lifespan: Ceramic capacitors have a longer lifespan because there is no liquid electrolyte to dry out.

  • 3. Do ceramic capacitors have a shelf life?

    Ceramic capacitors themselves do not have a strict shelf life, but after long-term storage, testing is recommended to confirm their performance.
