Analog Devices Inc. HMCAD1051-80

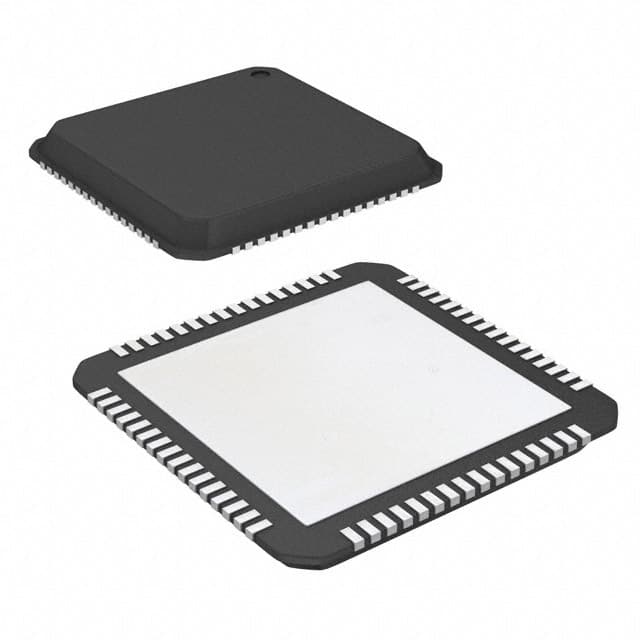

The picture is for reference only, please refer to the product specification
- HMCAD1051-80
- Analog Devices Inc.
- IC ADC 12, 13BIT PIPELINED 40QFN
- Data Acquisition - Analog to Digital Converters (ADC)
- HMCAD1051-80 Datasheet
- 40-VFQFN Exposed Pad
- Strip
-
Lead free / RoHS Compliant - 2677
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is HMCAD1051-80
Analog Devices Inc. Part Number HMCAD1051-80（Data Acquisition - Analog to Digital Converters (ADC)）, developed and manufactured by Analog Devices Inc., distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
HMCAD1051-80 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
HMCAD1051-80 Specifications
- Part NumberHMCAD1051-80
- CategoryData Acquisition - Analog to Digital Converters (ADC)
- ManufacturerAnalog Devices Inc.
- DescriptionIC ADC 12, 13BIT PIPELINED 40QFN
- PackageStrip
- Series-
- Features-
- Operating Temperature-40°C ~ 85°C
- Mounting TypeSurface Mount
- Package / Case40-VFQFN Exposed Pad
- Supplier Device Package40-QFN (6x6)
- Reference TypeInternal
- Sampling Rate (Per Second)65M, 80M
- Data InterfaceParallel
- Number of Bits12, 13
- Voltage - Supply, Analog1.7V ~ 2V
- Voltage - Supply, Digital1.7V ~ 2V
- Number of Inputs1
- Input TypeDifferential
- ConfigurationS/H-ADC
- Ratio - S/H:ADC1:1
- Number of A/D Converters1
- ArchitecturePipelined
Application of HMCAD1051-80
HMCAD1051-80 Datasheet
HMCAD1051-80 Datasheet , Strip,-40°C ~ 85°C,Surface Mount,40-VFQFN Exposed Pad,40-QFN (6x6),Internal,65M, 80M,Parallel,12, 13,1.7V ~ 2V,1.7V ~ 2V,1,Differential,S/H-ADC,1:1,1,Pipelined
HMCAD1051-80 Classification
Data Acquisition - Analog to Digital Converters (ADC)
FAQ about Data Acquisition - Analog to Digital Converters (ADC)
-
1. What is the main purpose of ADC?
The main purpose of ADC is to convert the input analog signal into a digital signal.
ADC, or analog-to-digital converter, is mainly used to convert continuously changing analog signals into discrete digital signals. The implementation process of ADC usually includes four steps: sampling, holding, quantization, and encoding.
-
2. How many types of ADC are there?
The types of ADC (Analog-to-Digital Converter) mainly include:
1. Integral ADC: Its working principle is to convert the input voltage into time (pulse width signal) or frequency (pulse frequency), and then obtain the digital value by the timer/counter. The advantage of the integral ADC is that it can obtain high resolution with a simple circuit and has strong anti-interference ability, but the disadvantage is that the conversion rate is extremely low because the conversion accuracy depends on the integration time.
2. Successive approximation type (SAR ADC): The successive approximation ADC is one of the most common architectures. Its basic principle is to convert by gradually approximating the value of the analog input signal. The advantages of the successive approximation ADC are high speed and low power consumption. It is cheap at low resolution, but expensive at high precision.
3. Parallel comparison type/serial-parallel comparison type ADC: The parallel comparison type AD uses m -
3. Why do we need analog-to-digital converters?
The reasons why we need analog-to-digital converters mainly include the following:
Digital system processing: Many computers and electronic devices are digital systems, which are more suitable for processing digital signals. Analog signals are difficult to process in digital systems, and after analog-to-digital conversion, the signals can be represented, stored and processed in digital form.
Noise immunity: Digital signals are more noise-resistant than analog signals. Digital signals can be protected and restored by means such as error correction codes, while analog signals are easily interfered by noise.
Accuracy: Digital signals are more accurate because they can be represented with higher resolution. Analog signals have accuracy limitations, and analog-to-digital conversion can improve the resolution of the signal.
Application scenarios: Analog-to-digital converters are widely used in many fields, including automatic control systems, audio and video processing, sensor interfaces
