Broadcom Limited HSMS-8207-BLKG

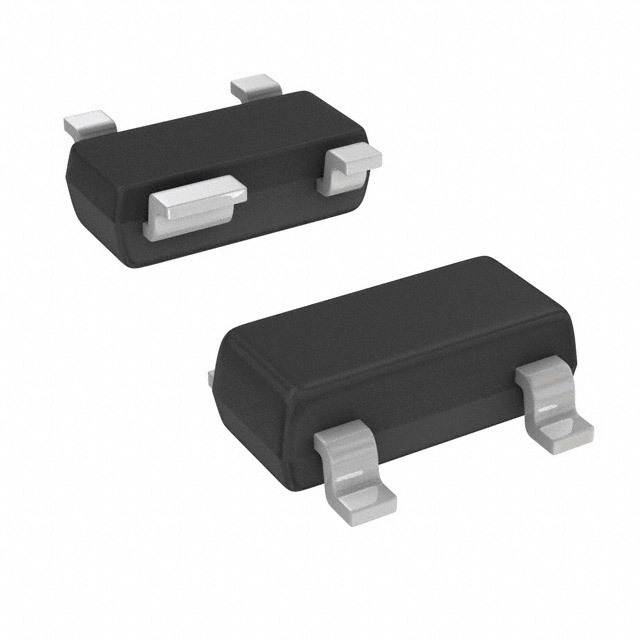

The picture is for reference only, please refer to the product specification
- HSMS-8207-BLKG
- Broadcom Limited
- DIODE SCHOTTKY 4V 75MW SOT143-4
- Diodes - RF
- HSMS-8207-BLKG Datasheet
- TO-253-4, TO-253AA
- Bulk
-
Lead free / RoHS Compliant - 12847
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is HSMS-8207-BLKG
Broadcom Limited Part Number HSMS-8207-BLKG（Diodes - RF）, developed and manufactured by Broadcom Limited, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
HSMS-8207-BLKG is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
HSMS-8207-BLKG Specifications
- Part NumberHSMS-8207-BLKG
- CategoryDiodes - RF
- ManufacturerBroadcom Limited
- DescriptionDIODE SCHOTTKY 4V 75MW SOT143-4
- PackageBulk
- Series-
- Operating Temperature150°C (TJ)
- Package / CaseTO-253-4, TO-253AA
- Supplier Device PackageSOT-143-4
- Diode TypeSchottky - 2 Pair Series Connection
- Voltage - Peak Reverse (Max)4V
- Capacitance @ Vr, F0.26pF @ 0V, 1MHz
- Current - Max-
- Power Dissipation (Max)75 mW
- Resistance @ If, F14Ohm @ 5mA, 1MHz
Application of HSMS-8207-BLKG
HSMS-8207-BLKG Datasheet
HSMS-8207-BLKG Datasheet , Bulk,150°C (TJ),TO-253-4, TO-253AA,SOT-143-4,Schottky - 2 Pair Series Connection,4V,0.26pF @ 0V, 1MHz,75 mW,14Ohm @ 5mA, 1MHz
HSMS-8207-BLKG Classification
Diodes - RF
FAQ about Diodes - RF
-
1. What is RF in diodes?
RF in diodes refers to the abbreviation of Radio Frequency, which means the electromagnetic frequency that can be radiated into space, ranging from 300kHz to 300GHz.
Application and characteristics of RF diodes
RF diodes are diodes specially used in radio frequency (RF) and microwave frequency ranges. They are widely used in radio communications, radar, satellite navigation and other fields. The main functions of RF diodes include rectification and detection, which can realize the unidirectional flow of current in high-frequency circuits, thereby protecting the circuit from reverse voltage damage. -
2. What is the best RF detection diode?
The best RF detection diode can be selected from multiple models, and the specific choice depends on the application scenario and requirements. The following are some common RF detection diode models and their characteristics:
1N4148: This is a commonly used point-contact silicon diode. Because of its small size, low cost and good high-frequency performance, it has been widely used in small signal circuits of radio receivers and other communication equipment. It is suitable for small signal detection and rectification.
1N5711: It has the characteristics of low leakage current and low slope resistance, suitable for higher frequency range (10MHz to 4GHz), and performs well in high-frequency limiting, detection and other circuits.
HSMS-2820: This is a high-speed limiting diode with fast response and high sensitivity. It has a very wide frequency range (1MHz to 20GHz) and is suitable for high-speed applications, low-noise amplifiers, high-speed switches and control circuits.
2AP9: It is suitable for detection, rectification and limiting circuits in radio electronic equipment with a frequency below 150MHz. It is widely used in communication equipment, broadcast receivers and TV receivers due to its reliability and stability.
Schottky diode: It has the characteristics of low forward voltage drop and fast switching, suitable for high-frequency rectification, switching power supply, solar cells and other occasions, and performs well in RF applications. -
3. What kind of diode is used for high frequency?
The diodes suitable for use in high-frequency circuits are mainly Schottky diodes and varactor diodes.
Schottky diode (SBD) is a low-power, ultra-high-speed semiconductor device with extremely short reverse recovery time and low forward conduction voltage drop. These characteristics make it very suitable for high-frequency, low-voltage, high-current rectification circuits, freewheeling circuits and protection circuits, etc.. In addition, Schottky diodes are also commonly used in microwave communications and communication power supplies.
Varactor diodes use the characteristics of the junction capacitance changing with the applied voltage when the PN junction is reverse biased, and are mainly used for automatic tuning, frequency modulation, phase modulation and other functions in high-frequency circuits. For example, in the tuning circuit of a TV receiver, a varactor diode can be used as a variable capacitor.
