Infineon Technologies IR2304PBF

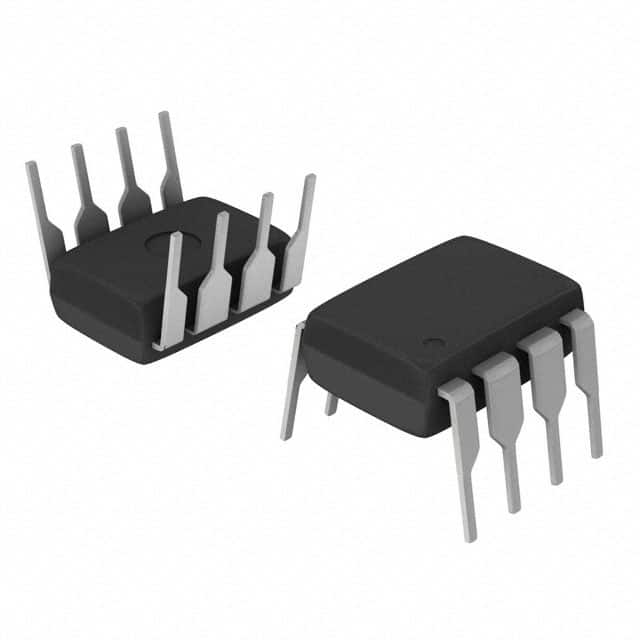

The picture is for reference only, please refer to the product specification
- IR2304PBF
- Infineon Technologies
- IC GATE DRVR HALF-BRIDGE 8DIP
- PMIC - Gate Drivers
- IR2304PBF Datasheet
- 8-DIP (0.300\", 7.62mm)
- Tube
-
Lead free / RoHS Compliant - 790
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is IR2304PBF
Infineon Technologies Part Number IR2304PBF（PMIC - Gate Drivers）, developed and manufactured by Infineon Technologies, distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
IR2304PBF is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
IR2304PBF Specifications
- Part NumberIR2304PBF
- CategoryPMIC - Gate Drivers
- ManufacturerInfineon Technologies
- DescriptionIC GATE DRVR HALF-BRIDGE 8DIP
- PackageTube
- Series-
- Voltage - Supply10V ~ 20V
- Operating Temperature-40°C ~ 150°C (TJ)
- Mounting TypeThrough Hole
- Package / Case8-DIP (0.300\", 7.62mm)
- Supplier Device Package8-PDIP
- Input TypeNon-Inverting
- Channel TypeIndependent
- Rise / Fall Time (Typ)200ns, 100ns
- Driven ConfigurationHalf-Bridge
- Number of Drivers2
- Gate TypeIGBT, N-Channel MOSFET
- Logic Voltage - VIL, VIH0.8V, 2.3V
- Current - Peak Output (Source, Sink)60mA, 130mA
- High Side Voltage - Max (Bootstrap)600 V
Application of IR2304PBF
IR2304PBF Datasheet
IR2304PBF Datasheet , Tube,10V ~ 20V,-40°C ~ 150°C (TJ),Through Hole,8-DIP (0.300\", 7.62mm),8-PDIP,Non-Inverting,Independent,200ns, 100ns,Half-Bridge,2,IGBT, N-Channel MOSFET,0.8V, 2.3V,60mA, 130mA,600 V
IR2304PBF Classification
PMIC - Gate Drivers
FAQ about PMIC - Gate Drivers
-
1. How to choose a gate driver for a MOSFET?
When selecting a gate driver for a MOSFET, the following key factors need to be considered:
Current drive capability: The current drive capability of the gate driver directly affects the turn-on and turn-off speed of the MOSFET. Higher current sinking and sourcing capabilities mean faster turn-on and turn-off speeds, thereby reducing switching losses.
Fault detection function: The gate driver should have fault detection functions such as undervoltage lockout (UVLO), desaturation (DESAT) detection, etc. to ensure the safety and stable operation of the system.
Interference immunity: Common mode transient immunity (CMTI) is an important parameter to measure the anti-interference ability of the gate driver. In high-power systems, high CMTI values can better resist voltage transients and ensure stable operation of the system.
Electrical isolation: Electrically isolated gate drivers can achieve electrical isolation between control signals and power devices to ensure system safety. Optical coupling isolation and magnetic coupling isolation are common electrical isolation technologies, and the selection should be compared according to application requirements.
Switching frequency: For high-frequency switching applications, the switching frequency of the gate driver should match the switching frequency of the MOSFET to ensure efficient operation.
Transmission delay: Transmission delay and transmission delay matching are important parameters of electrical isolation drivers, which affect the response speed of the signal and the stability of the system. -
2. What is a motor gate driver?
A motor gate driver is a circuit that is mainly used to enhance the gate signal of a field effect transistor (MOSFET) or an insulated gate bipolar transistor (IGBT) so that the controller can better control the operation of these semiconductor switches. It converts the low-voltage signal output by the controller into a high-voltage, high-current pulse signal to ensure that the MOSFET or IGBT can switch states stably and quickly within its operating range.
-
3. Why is a gate driver needed?
The main reasons for the need for gate drivers include signal amplification, electrical isolation, and protection mechanisms.
Signal Amplification
The main function of the gate driver is to convert the low-voltage signal of the controller into a high-voltage drive signal, thereby achieving effective control of the power device. This signal amplification function ensures that the power device can be stably turned on and off, improving the efficiency and reliability of the system.
Electrical Isolation
In many applications, electrical isolation between the control circuit and the power semiconductor is very important to prevent voltage feedback or ground loop problems. Gate drivers usually use optocouplers or other isolation methods to maintain this isolation, ensuring that the control circuit is not affected by the power circuit, thereby improving the stability and safety of the system.
Protection Mechanism
Gate drivers also integrate a variety of protection functions, such as overcurrent, overvoltage protection, and short-circuit protection. These protection mechanisms can effectively prevent power device damage and improve the reliability and safety of the system.
