Bel Fuse Inc. L834-1G1T-91

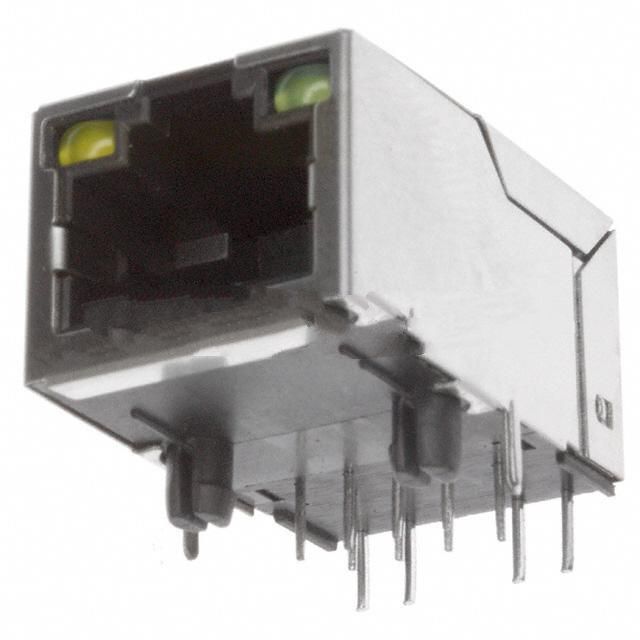

The picture is for reference only, please refer to the product specification
- L834-1G1T-91
- Bel Fuse Inc.
- MAGJACK 1PRT MIDPLANE 10/100 LED
- Modular Connectors - Jacks With Magnetics
- L834-1G1T-91 Datasheet
- -
- -
-
Lead free / RoHS Compliant - 13032
- Spot Inventory / Athorized Dstributor / Factory Excess Stock
- 1 year quality assurance 》
- Click to get rates
What is L834-1G1T-91
Bel Fuse Inc. Part Number L834-1G1T-91（Modular Connectors - Jacks With Magnetics）, developed and manufactured by Bel Fuse Inc., distributed globally by Jinftry. We distribute various electronic components from world-renowned brands and provide one-stop services, making us a trusted global electronic component distributor.
L834-1G1T-91 is one of the part numbers distributed by Jinftry, and you can learn about its specifications/configurations, package/case, Datasheet, and other information here. Electronic components are affected by supply and demand, and prices fluctuate frequently. If you have a demand, please do not hesitate to send us an RFQ or email us immediately [email protected] Please inquire about the real-time unit price, Data Code, Lead time, payment terms, and any other information you would like to know. We will do our best to provide you with a quotation and reply as soon as possible.
L834-1G1T-91 Specifications
- Part NumberL834-1G1T-91
- CategoryModular Connectors - Jacks With Magnetics
- ManufacturerBel Fuse Inc.
- DescriptionMAGJACK 1PRT MIDPLANE 10/100 LED
- Package-
- SeriesMagJack?
- FeaturesBoard Lock
- Operating Temperature0°C ~ 70°C
- Mounting TypeBoard Edge, Cutout; Through Hole
- Applications10/100 Base-T, AutoMDIX
- TerminationSolder
- Contact FinishGold
- Orientation90° Angle (Right)
- Height Above Board0.448" (11.38mm)
- Connector TypeRJ45 Jack
- ShieldingShielded, EMI Finger
- Number of Rows1
- Number of Ports1
- LED ColorGreen - Green
- Tab DirectionDown
- Number of Cores per Jack4
Application of L834-1G1T-91
L834-1G1T-91 Datasheet
L834-1G1T-91 Datasheet , MagJack?,Board Lock,0°C ~ 70°C,Board Edge, Cutout; Through Hole,10/100 Base-T, AutoMDIX,Solder,Gold,90° Angle (Right),0.448" (11.38mm),RJ45 Jack,Shielded, EMI Finger,1,1,Green - Green,Down,4
L834-1G1T-91 Classification
Modular Connectors - Jacks With Magnetics
FAQ about Modular Connectors - Jacks With Magnetics
-
1. How to distinguish different models of Modular Connectors - Jacks With Magnetics?
Models are usually distinguished by the following features:
Port configuration: such as 1x1, 1xN or 2xN.
Rate: such as Cat5e, Cat6 or Cat6A.
Mounting direction: right angle or vertical mounting.
Additional features: such as LED indicator or shielding design. -
2. Are Modular Connectors - Jacks With Magnetics complicated to install and maintain?
The installation is relatively simple and can usually be completed with standard tools (such as crimping tools). In terms of maintenance, due to its modular design, it is very convenient to replace or upgrade the connector, which is suitable for field installation and repair (MRO) scenarios.
-
3. Do these connectors support high-reliability (Hi-Rel) applications?
Yes, many Modular Connectors - Jacks With Magnetics are designed for high-reliability scenarios, with EMI/RFI shielding, protective shell and high durability, suitable for military, aerospace and industrial automation.
